Industrial-grade weatherproof equipment cabinets designed for outdoor telecom applications, featuring 19" standard rack mounting, IP55 protection, and integrated cooling systems.

Key Specifications

External Dimensions	650×650×12000mm (W×D×H)
Protection Level	IP55 (Dustproof and water-resistant)
Cabinet Structure	Single compartment with 19" rack
Locking System	Anti-theft three-point lock
Cooling System	AC220V air conditioner + DC48V fans
Illumination	DC48V LED lamp

Technical Parameters

Category	Specification
Material	Galvanized steel (1.5mm outer wall, 0.8mm inner wall) with 40mm PEF insulation
Temperature Range	Operating: -40°C to +55°C Storage: -50°C to +70°C
Humidity	5% to 100% relative humidity
Environmental Protection	UV-resistant powder coating, flame retardant materials
Certifications	ISO9001, CE, 3C, FCC, TLC

Design Features

Robust Construction: Double-walled galvanized steel with PEF insulation for thermal protection
Secure Access: Three-point locking system with door opening sensor (110° opening angle)
Optimized Layout: 19" standard rack with dedicated cable entry points (power, signal, optical)
Comprehensive Monitoring: Integrated environment monitoring for temperature, humidity, smoke, and intrusion
Modular Design: Assembled structure for easy installation and maintenance
Weather Resistance: IP55 rating protects against dust, rain, and solar radiation (1124 W/m²)

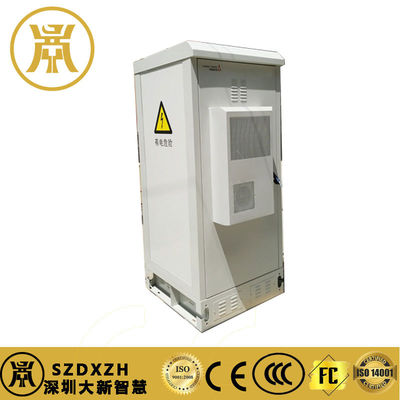

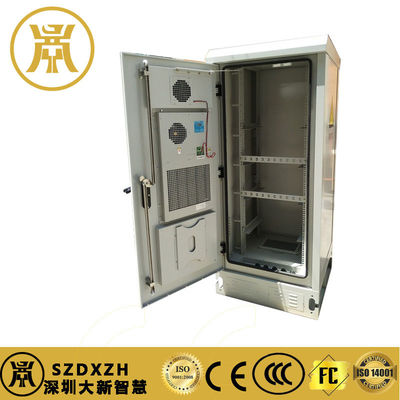

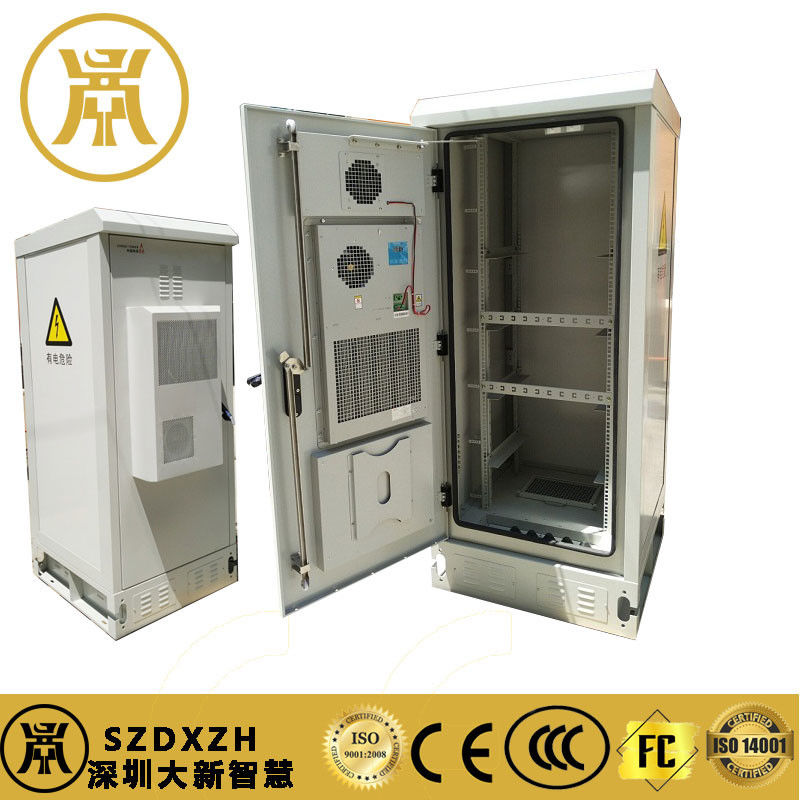

Product Images

Applications

Ideal for outdoor telecom base stations, industrial equipment housing, and any application requiring protected equipment installation in harsh environments.
