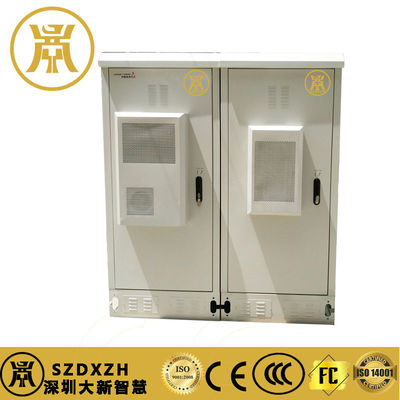

Customized 2 Compartments Outdoor Power Cabinet Electrical Rack Enclosures IP55

Brand Name:	daxin
Model Number:	ODC-210909C2T-2
MOQ:	1 pcs
Price:	1000 USD
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Product Brochure PDF

Jacket Od:

3.0mm

Internal Size:

W×D×H 900×900×2150mm

Cabinet Lock:

Anti-theft Three Point Lock

Protection Level:

IP55

Cabinet Layout:

One Compartment

Battery Shelf No:

One Battery Shelf

Illumination:

DC48V LED Lamp

Layout:

2 Compartments

Packaging Details:

Woodcase/ Paper box

Supply Ability:

10000pcs/month

Highlight:

1.8M Outdoor Power Cabinet

2 Compartments Steel Electrical Enclosures

Two Compartments Outdoor Electrical Cabinet

Product Description

Customized 2 Compartments Outdoor Power Cabinet Electrical Rack Enclosures IP55

Product Specifications

Attribute	Value
Jacket Od	3.0mm
Internal Size	W×D×H 900×900×2150mm
Cabinet Lock	Anti-theft Three Point Lock
Protection Level	IP55
Cabinet Layout	One Compartment
Battery Shelf No	One Battery Shelf
Illumination	DC48V LED Lamp
Layout	2 Compartments

Product Description

Customized 2 Compartments Outdoor Power Cabinet Electrical Rack Enclosures IP55

Technical Parameters

Parameter	Description
Product Name	Electrical Rack Enclosures
Cooling	Air conditioner and TEC
Size	Based on client's request
Cabinet Lock	Anti-theft Three Point Lock
Protection Level	IP55
Surface	Outdoor Powder Coating
Battery Shelf No	Two Battery Shelf
Other Accessory	Sensors

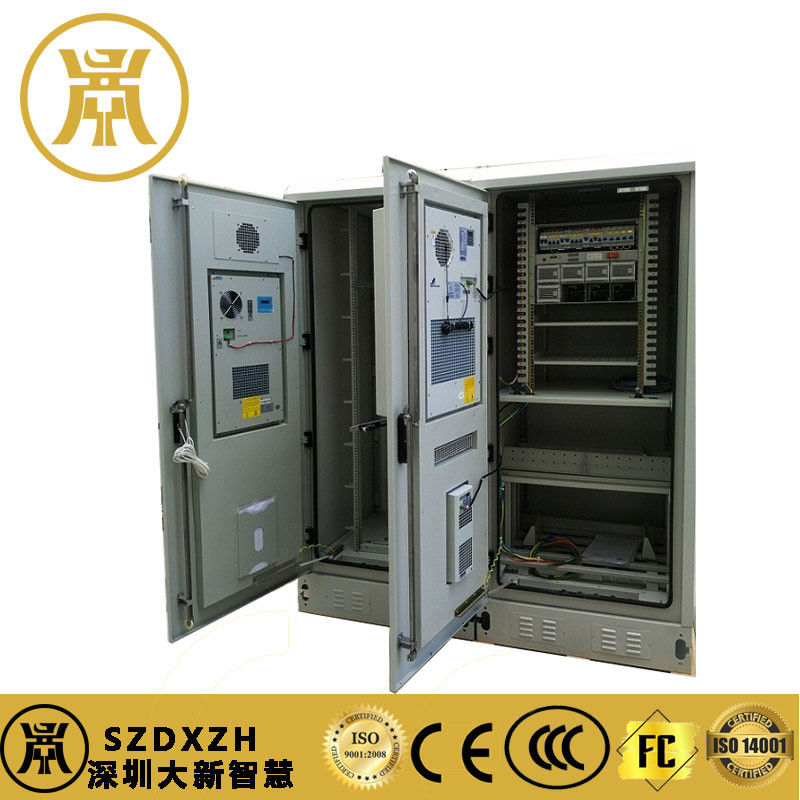

Cabinet Layout	Two Compartments, left for equipments, right for battery and power distribution
Inside design	19 inch rack and battery shelf
Power distribution	Customized

How to Design an Electrical Rack Enclosure

Define Requirements
- Purpose: Identify what equipment will be housed (servers, switches, etc.)
- Size: Determine the dimensions based on the equipment size and quantity
- Weight Capacity: Ensure the enclosure can support the weight of all components
Select Materials
- Metal vs. Plastic: Metal is often preferred for durability and grounding
- Finish: Consider powder coating for corrosion resistance
Cooling and Ventilation
- Airflow Design: Include vents or fans to ensure proper cooling
- Heat Management: Plan for heat dissipation from equipment
Accessibility
- Doors: Design with front and rear access for easy maintenance
- Cable Management: Include pathways for cables to avoid tangling and interference
Safety Features
- Lockable Doors: Ensure security for sensitive equipment
- Grounding: Design for proper grounding to prevent electrical hazards
Compliance Standards
- Regulations: Check for industry standards (e.g., IEC, UL) that apply to your design
Prototype and Testing
- Build a Prototype: Create a sample unit to test functionality
- User Feedback: Gather input from potential users for improvements
Final Design and Production
- CAD Modeling: Use software to create detailed designs
- Manufacturing: Choose a reliable manufacturer for production
