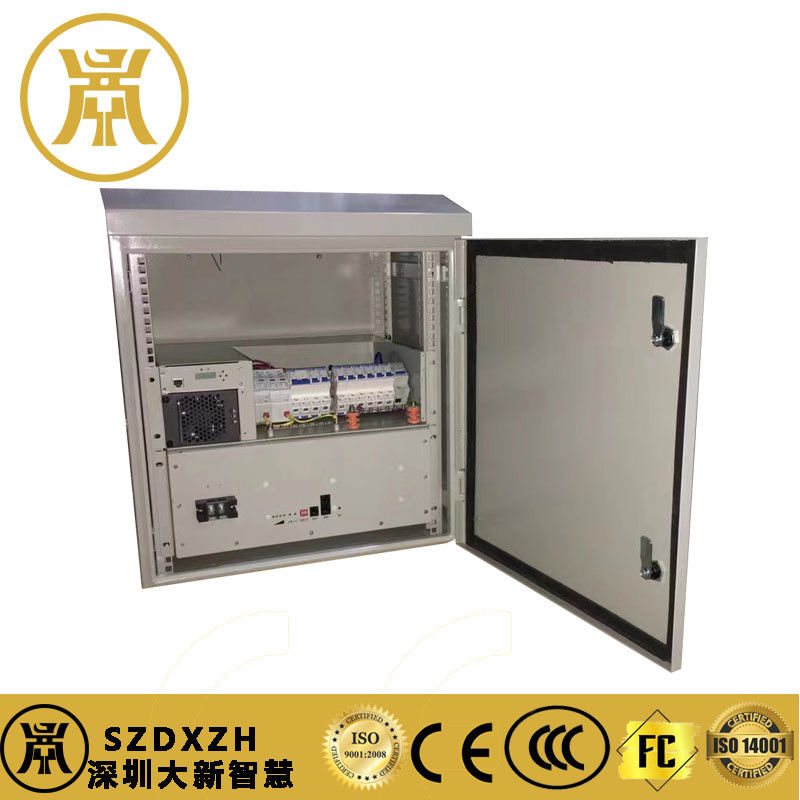

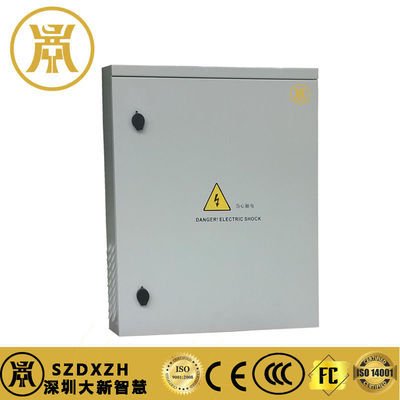

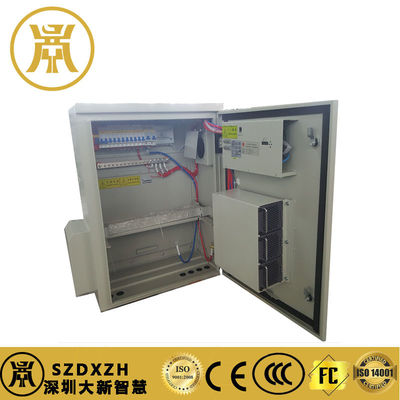

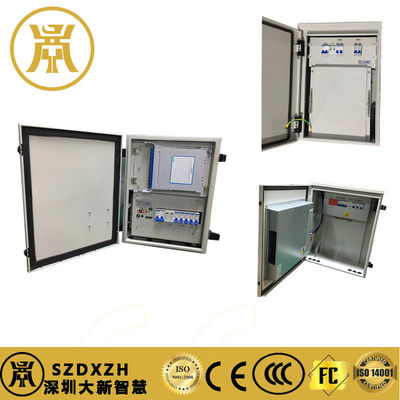

Pole mount Anti Corrosion waterproof electrical cabinet 1 Compartment with Embedded Power Supply

Brand Name:	daxin
Model Number:	ODC-210909C2T
MOQ:	1 pcs
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Embedded Power Supply Brand:

Daxin

Cabinet Layout:

One Compartment

Mount Way:

Pole Mount

Product Category:

Outdoor Power Cabinet

Product Name:

Power Supply Cabinet Power/AC To DC Power Supply/48V Power Supply

Cabinet Dimension:

700H * 350D * 580W

Capacity:

48V/10A~150A

Input Voltage:

100-240V

Supply Ability:

10000pcs/month

Highlight:

Anti Corrosion Waterproof Electrical Cabinet

1 Compartment Waterproof Electrical Cabinet

Anti Corrosion Electrical Supply Cabinet

Product Description

Pole Mount Anti-Corrosion Waterproof Electrical Cabinet with Embedded Power Supply

Product Specifications

Embedded Power Supply Brand	Daxin
Cabinet Layout	One Compartment

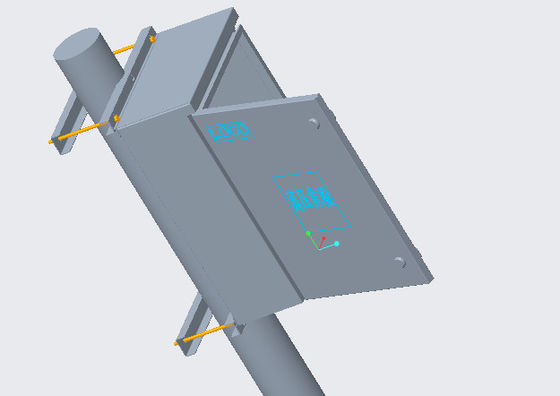

Mounting Type	Pole mount
Product Category	Outdoor Power Cabinet
Dimensions	700H × 350D × 580W (mm)
Capacity	48V/10A~150A
Input Voltage	100-240V

Technical Parameters

Component	Parameter	Remarks
AC Distribution Unit	Communication on lightning protection Grade C:20~40KA
Communication Input	63A/2P*2	Limit breaking ability ICU ≥6kA, short circuit segmenting ability Ics ≥6kA
Intelligent Instrument (Optional)	DDS3366P-3Type single-phase three-way electric energy meter	Detects AC voltage, current, electrical energy, three-way input switch values
Rectifier Module	RM4850*3
Monitoring Unit	SM32
DC Distribution Unit	Battery switch 100A/1P*2	Ultimate breaking capacity Icu ≥ 20kA, operating short-circuit breaking capacity Ics ≥ 15kA
Primary Power Down	63A/1P1;32/1P2;20/1P*2
Secondary Power Down	20A/1P1;10A/1P2;	Limit breaking capacity ICU ≥6kA, running short circuit breaking capacity ICS ≥6kA
DC Lightning Protection	Grade C:10~20KA	Includes lightning protection plate

Power System Operation

The system input is routed through a 63A/2P circuit breaker to the rectifier module, with parallel AC C-level lightning protection at the input end. Rectifier modules operate in parallel, with DC output connected via busbar to supply battery packs and DC loads.

Under normal operation, parameters are controlled by the monitoring module. During power failure, the system automatically switches to battery power. The monitoring module protects against excessive battery discharge and restores normal operation when mains power returns.

The system provides comprehensive monitoring capabilities through LCD display, local PC, or remote control center, with optional environmental sensors for smoke, temperature, humidity, and other variables.

Environmental Specifications

Parameter	Operating Conditions	Transport Conditions	Storage Conditions	Standards
Low Temperature	-40℃	-40℃	-25℃	YD/T1058-2000
High Temperature	45℃	70℃	55℃	YD/T1058-2000
Temperature Variation	N/A	1℃/min	N/A	ETS300019-2-2T2.3
Relative Humidity	5-90%	90% (40±2℃)	N/A	YD/T1058-2000
Low Pressure	86Kpa	70Kpa	70Kpa	YD/T1058-2000
High Pressure	106Kpa	106Kpa	106Kpa	YD/T1058-2000

Note: System can start at full load at -40℃. Linear derating of 20% applies at +55~+65℃.
