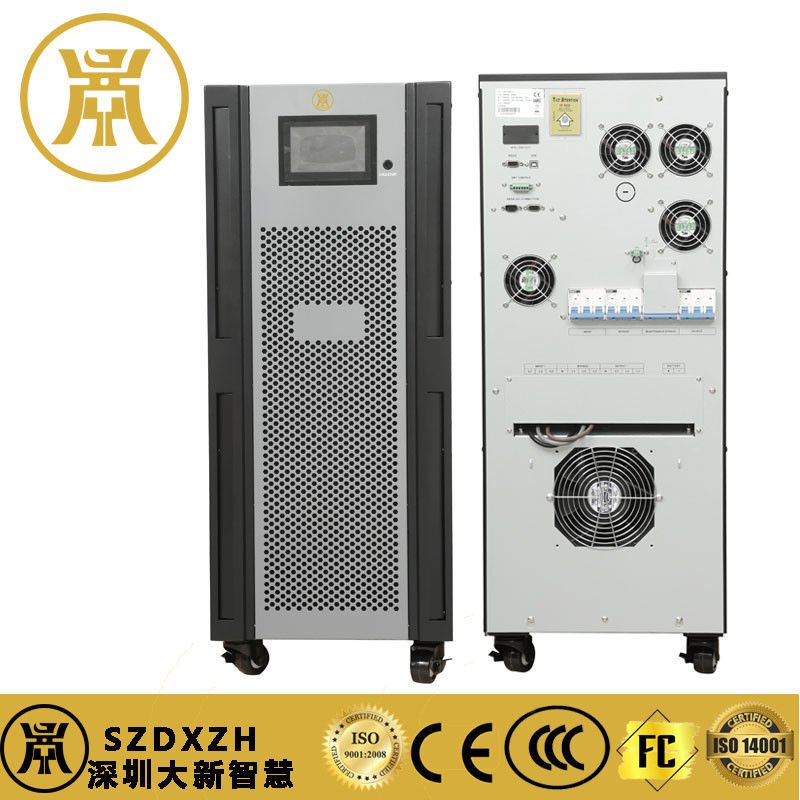

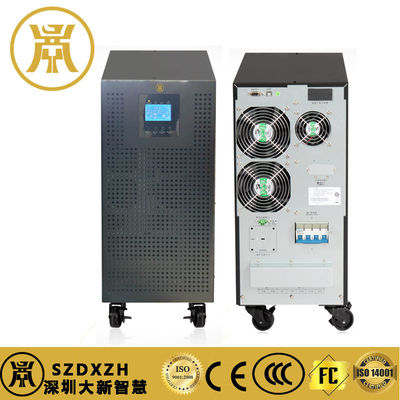

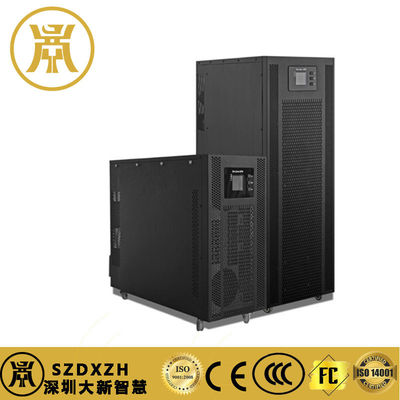

3-Phase 200kVA Industrial Online UPS - Pure Double Conversion Power Protection System

Brand Name:	SZDXZH
Model Number:	EX3C3-200kVA
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Transfer Time:

Multiple Communication Interfaces:

Standard RS232/RS485/ SNMP / USB

Operating Temperature:

0-40°C

Output Frequency:

50/60Hz±0.1% (battery Mode)

Capacity:

200kVA/200kW

Input Voltage Range:

110-300V AC (phase-neutral)

Output Voltage:

380/400/415V AC (3-phase Configurable)

Supply Ability:

10000pcs/month

Product Description

3-Phase 200kVA Industrial Online UPS - Pure Double Conversion Power Protection System

Key Specifications

Attribute	Value
Transfer time	0ms
Communication interfaces	Standard RS232/RS485/SNMP/USB
Operating Temperature	0-40°C
Output Frequency	50/60Hz±0.1% (battery mode)
Capacity	200kVA/200kW
Input Voltage Range	110-300V AC (phase-neutral)
Output Voltage	380/400/415V AC (3-phase configurable)

Enterprise-Grade Power Protection for Mission-Critical Infrastructure

The EX3C3-200kVA Online UPS represents the pinnacle of three-phase power protection technology, delivering pure double-conversion power conditioning for organizations that demand absolute power reliability. Engineered for data centers, industrial automation, and telecommunications infrastructure, this industrial-grade UPS solution provides seamless power continuity, voltage stabilization, and advanced battery backup in a robust, high-efficiency package.

Unmatched Power Protection Technology

Advanced Power Conditioning

Pure double-conversion topology ensures complete isolation from all utility power anomalies
Precision voltage regulation maintains output within ±1% of nominal
Wide input voltage window (110-300V AC phase-neutral) handles severe grid fluctuations
Intelligent frequency synchronization (40-70Hz) for generator compatibility

Comprehensive Protection Systems

Multi-stage surge suppression protects against lightning strikes and power surges
Automatic overload management:
- 105-110% load: 60 minute runtime
- 110-125% load: 10 minute runtime
- 126-150% load: 1 minute runtime
- 150% load: 200ms cutoff
Short circuit protection with automatic recovery

Intelligent Battery Management

3-stage adaptive charging (bulk/absorption/float) optimizes battery performance
Configurable battery banks support 32-40 cells for flexible runtime
Advanced battery monitoring with charge/discharge cycle counting, runtime remaining calculation, and battery health diagnostics

Energy Efficient Operation

>95.5% operational efficiency reduces power consumption
Active Power Factor Correction (≥0.99 at full load) minimizes harmonic distortion
ECO mode operation for reduced energy costs during stable grid conditions

Technical Specifications

Power Performance

Parameter	Specification
Capacity	200kVA/200kW
Input Voltage Range	110-300V AC (phase-neutral)
Input Frequency Range	40-70Hz
Output Voltage	380/400/415V AC (3-phase configurable)
Output Voltage Regulation	±1%
Output Frequency	50/60Hz±0.1% (battery mode)
THD	≤2% (linear), ≤5% (nonlinear)
Transfer Time	0ms (online to battery)

Physical Characteristics

Parameter	Specification
Dimensions (D×W×H)	1000×600×1200mm
Weight	265kg
Operating Temperature	0-40°C
Relative Humidity	<95% non-condensing
Noise Level	<75dB @ 1m

Monitoring & Control

Full-color LCD display with real-time system status, power quality metrics, battery parameters, and event logging
Multiple communication interfaces: Standard RS232/RS485, optional SNMP network card, USB for local configuration
Emergency Power Off (EPO) function
Programmable dry contacts for remote signaling

Industrial Applications

Data Center Power Protection: Tier III/Tier IV compatible design, seamless generator transfer capability, parallel redundant configuration support (up to 6 units)
Industrial Automation: PROFINET/Modbus TCP integration, robust construction for harsh environments, motor-start capable (3:1 peak current ratio)
Telecommunications Infrastructure: -48VDC compatibility options, outdoor-rated configurations available, remote site management capabilities
Healthcare & Financial Services: Medical-grade power purity, zero-transfer protection for sensitive equipment, comprehensive audit logging

System Architecture & Design Features

Modular Construction: Hot-swappable power modules for easy maintenance, front-accessible components reduce service time, scalable battery cabinets for extended runtime
Advanced Cooling System: Intelligent thermal management with variable speed fans, component temperature monitoring, and adaptive cooling algorithms
Safety & Compliance: UL/cUL certified power components, IEC 62040-1 compliant design, RoHS compliant materials

Why Choose the EX3C3-200kVA Online UPS?

True Online Double Conversion technology provides complete isolation from all utility power problems
Industrial-grade components ensure reliable operation in demanding environments
Flexible configuration options adapt to your specific power requirements
Comprehensive monitoring provides complete system visibility
Energy efficient design reduces total cost of ownership

For organizations that cannot tolerate power interruptions, the EX3C3-200kVA Online UPS delivers enterprise-grade power protection with industrial reliability and data center performance. Contact our power solutions team today to discuss your specific requirements.
