Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series

Brand Name: Daxin
Model Number: EX 3C3 80K
MOQ: 1 pc
Payment Terms: T/T
Supply Ability: 6000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Document:
Product Brochure PDF
Net Weight:
85kg
Transfer Time:
0 Ms
Output Voltage:
380/400VAC (3Ph+N) ±1%
THD:
<2% (linear), <5% (non-linear)
Battery Configuration:
32-40 Cells (12V Sealed Lead-acid)
Dimensions (W×D×H):
790×360×1010mm
Remote Management Capabilities:
RS485 & SNMP
Packaging Details:
Woodcase/ Paper box
Supply Ability:
6000pcs/month
Highlight:

VRLA Batteries Online UPS System

,

Online UPS System With Battery Banks

Product Description
Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series
Attribute Value
Net Weight 85kg
Transfer time 0 ms
Output Voltage 380/400VAC (3Ph+N) ±1%
THD <2% (linear), <5% (non-linear)
Battery Configuration 32-40 cells (12V sealed lead-acid)
Dimensions (W×D×H) 790×360×1010mm
Remote management capabilities RS485 & SNMP
80KVA Online UPS System with 32-40 x 12V Sealed Lead-Acid Battery String Configuration

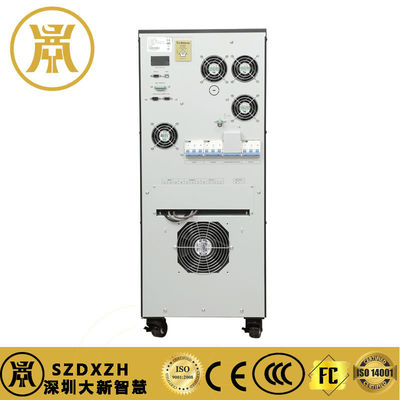

Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series 0
Recommended Applications for This Online UPS System
  • Large Data Centers - Protects critical server infrastructure
  • Industrial Manufacturing - Ensures continuous production operations
  • Healthcare Facilities - Safeguards life-saving medical equipment
  • Telecommunications - Provides reliable backup for network equipment
Key Advantages of This Online UPS Solution
  • Military-grade surge protection
  • IP42-rated enclosure for dust protection
  • Wide operating temperature range
  • High load capacity at elevated ambient temperatures
Available configurations include:
  • N+1 redundant systems
  • Extended runtime battery cabinets
  • Customizable power distribution options
Compliant with international standards including IEC 62040-3 for power quality and reliability.
Technical Parameters:
Parameter Specification
UPS Model EX 3C3 80K
Capacity 80KVA/64KW
Input Voltage Range 285-475VAC (3Ph+N)
Output Voltage 380/400VAC (3Ph+N) ±1%
Frequency Range 50/60Hz ±10%
Transfer Time 0ms
Output Waveform Pure Sine Wave
THD <2% (linear), <5% (non-linear)
Battery Configuration 32-40 cells (12V sealed lead-acid)
Dimensions (W ×D×H) 790×360×1010mm
Weight 85kg
Industrial-Grade Online UPS with Advanced Power Conditioning
1. True Online Double Conversion Technology
  • Pure sine wave output (THD <2%) ensures clean power for sensitive equipment
  • 0ms transfer time between AC and battery modes
  • Wide input voltage range (285-475VAC) handles severe grid fluctuations
  • Active PFC (PF >0.99) reduces energy consumption and infrastructure costs
2. Robust Power Protection Features
  • Advanced overload capacity:
    • 150% for 1 minute
    • 160% for 200ms
  • Multi-stage protection:
    • Short-circuit protection
    • Battery overcharge prevention
    • Thermal overload safeguards
  • Static bypass switch with 0ms transition during faults
3. Intelligent Monitoring & Control System
  • Interactive LCD display provides real-time monitoring of:
    • Load percentage
    • Input/output parameters
    • Battery status

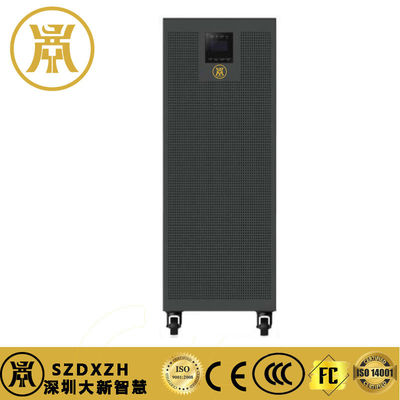

Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series 1
  • Remote management capabilities:
    • RS485 communication interface
    • SNMP network monitoring
  • Optional battery monitoring module for cell-level diagnostics
4. High-Efficiency Performance
  • 94% efficiency in online mode reduces operating costs
  • 93.5% efficiency in battery mode extends runtime
  • 3:1 crest factor supports equipment with high inrush currents

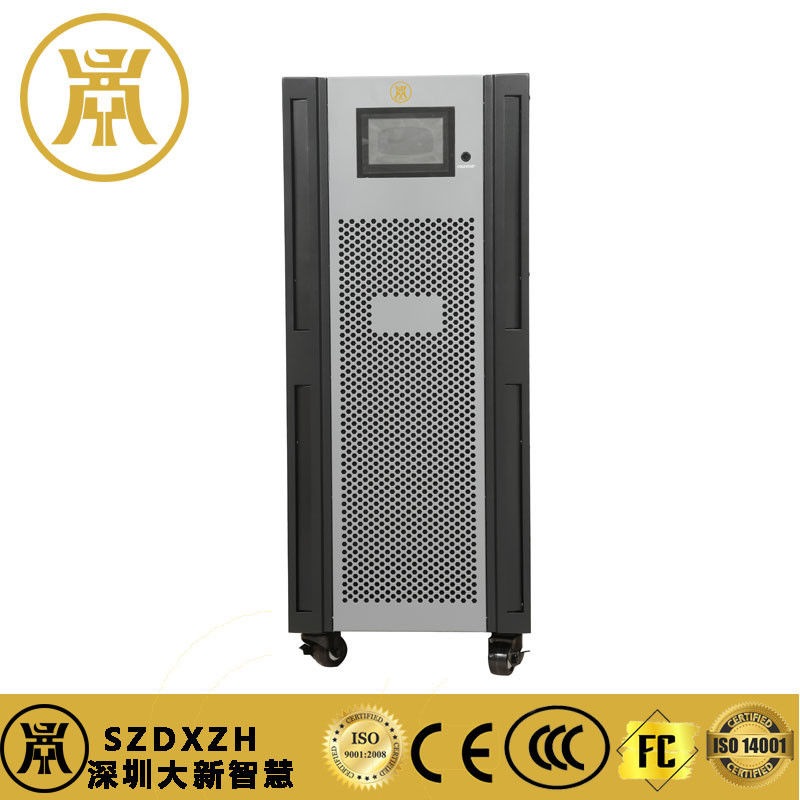

Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series 2
Production lines:
Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series 3 Online UPS System Compatible With Battery Banks Of 32-40 X 12V VRLA Batteries In Series 4
