| Brand Name: | Daxin |
| Model Number: | ODC-210909C2T-200AH |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |
Product Description:

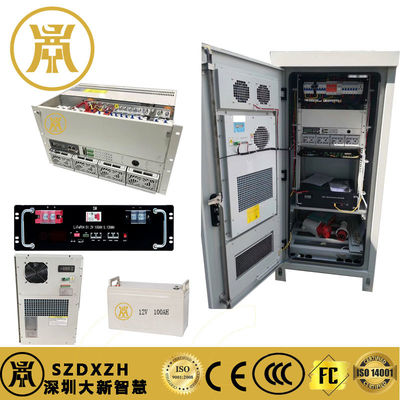

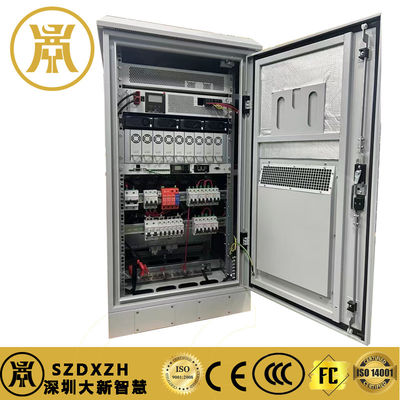

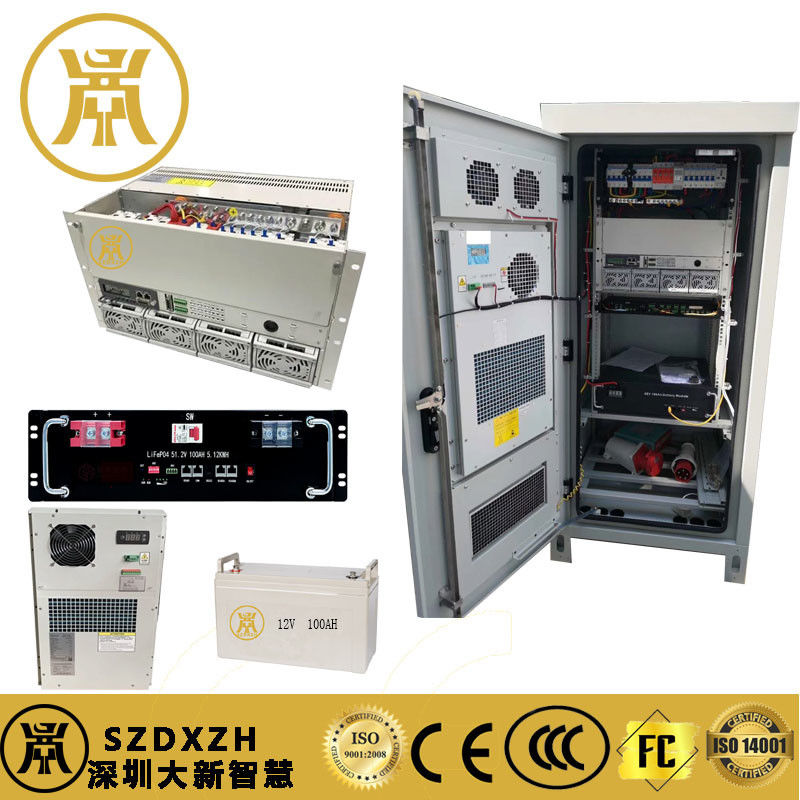

The Outdoor Integrated Power Cabinet with 48V 100Ah Lithium Battery & IP55 Protection is a high-performance energy storage solution designed for industrial, commercial, and outdoor applications. Featuring a robust 48V 100Ah LiFePO4 battery, IP55-rated enclosure, and 1500W cooling capacity, this cabinet ensures reliable power storage and distribution in demanding environments. With a 19-inch rack (30U configuration) and customizable design, it is perfect for outdoor energy storage systems, industrial and commercial energy storage systems, and automated smart energy storage systems.
Outdoor Energy Storage Systems: Ideal for remote locations, telecommunications, and renewable energy projects.
Industrial and Commercial Energy Storage Systems: Perfect for factories, warehouses, and commercial buildings requiring reliable power backup.
Automated Smart Energy Storage Systems: Suitable for smart grids, microgrids, and energy management systems that require automated control and monitoring.
| Item | Name/Description | Specifications/Model | Parameters |
|---|---|---|---|
| 1 | Outdoor Integrated Power Cabinet | ODC-1757575C1F-001 750*750*1750 | - External Dimensions: W×D×H 750*750*1750mm - Internal Dimensions: W×D×H 600*600*1400mm - Material: 1.5mm galvanized steel, 45mm sandwich panel - Thermal Conductivity: <0.472W/(m²·K) - Rack: 19-inch, 30U height - Base Height: 100mm - Cable Entry: Bottom entry/exit, φ50x4 - Security: Embedded door, point-type anti-theft lock - Protection Rating: IP55 - Color: RAL7035, professional outdoor powder coating - Additional Features: Grounding copper bar, LED light, door magnetic switch, optional cooling fans |
| 2 | AC Air Conditioner | 1500W | - Input Voltage: AC 220V - Cooling Capacity: 1500W - Installation: Door-mounted |
| 3 | Switching Power Supply | ET-PS48200E48V200A | - Configuration: 19-inch, 6U height embedded frame - AC Distribution: Three-phase input, 63A/4P circuit breaker, C-level lightning protection - DC Distribution: 100A/1P, 32A/1P, 63A/1P circuit breakers - Battery Circuit Breaker: 125A/1P - Communication: RS485 |
| 4 | Lithium Iron Phosphate Battery | ET-LiBAT48100AH-3U | - Capacity: 48V 100Ah - Configuration: 15S2P - BMS: Supports up to 50A charge/discharge, current limiting function - Communication: RS485 + RS232 - Enclosure: 3U black metal case |
| 5 | Generator Socket | 5-wire, 63A | - Type: 5-wire, 63A |
| 6 | Fan | 12025 | - Input Voltage: AC 220V - Dimensions: 120mm x 120mm x 25mm |
| 7 | Door Contact Switch | - | - Type: Normally closed, door open alarm |
| 8 | LED Light with Door Contact Switch | LED 18W | - Input Voltage: AC 220V - Function: Automatically turns on when the door is opened |
Reliability: Designed for continuous operation in demanding environments, ensuring uninterrupted power supply.
Scalability: Flexible configuration options allow for easy expansion and customization to meet specific energy storage needs.
Safety: Comprehensive safety features protect both the equipment and personnel, reducing the risk of accidents and downtime.
Efficiency: Advanced thermal management and energy-efficient components minimize energy loss and operational costs.
At SZDXZH, we understand that every project is unique. That’s why we offer fully customizable solutions tailored to your specific requirements. Whether you need a complete energy storage system or an optimized design, our team of experienced engineers with over 10 years of industry expertise is here to assist you. From initial consultation to final implementation, we provide end-to-end support to ensure your project’s success.
Our team of experienced technicians and engineers are dedicated to ensuring that our customers receive the highest level of support and service throughout the entire lifecycle of their energy storage system.
Product Packaging:
Shipping:
|
|
