| Brand Name: | Daxin |
| Model Number: | ODC-210909C2T |
| MOQ: | 1 pc |
| Packaging Details: | Wooden case with pallet |
| Payment Terms: | T/T |
IP55 Weatherproof Outdoor Cabinet For Hybrid Energy Storage Power Systems With Remote Monitoring System

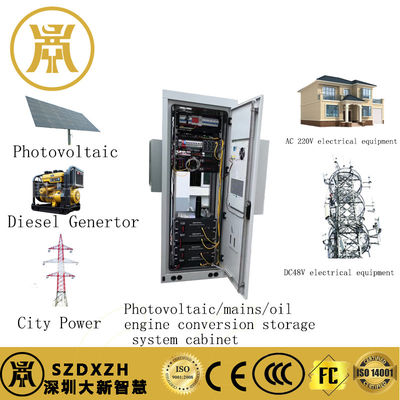

Outdoor cabinet of Hybrid Power Supply System for Telecom Base Stations
Reliable. Efficient. Sustainable.
In remote telecom base stations, unstable grid power and high infrastructure costs pose significant challenges. Traditional diesel generators are costly and unsustainable. Our Solar-Wind Hybrid Power System offers a cutting-edge solution—combining solar energy, intelligent rectification, and modular design to ensure 24/7 reliability while reducing operational costs and carbon footprint.
Outdoor Cabinet For Hybrid Energy Storage Power Systems Technical Parameters:
| Item | Type | Technical Parameter |

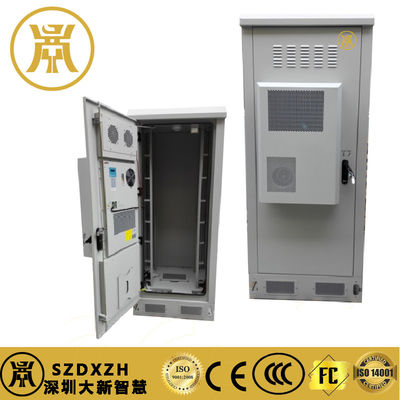

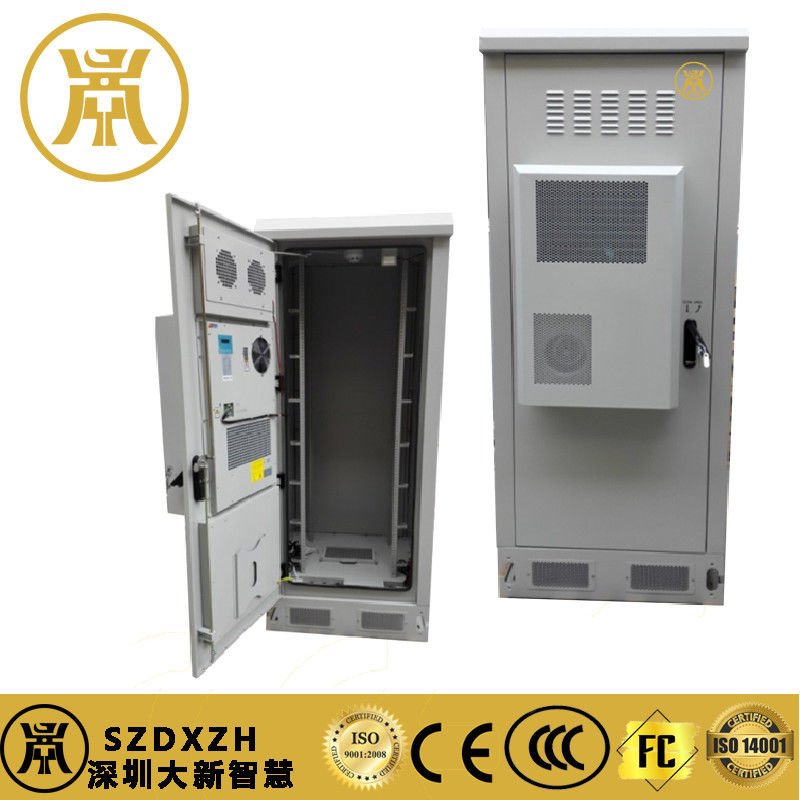

| Outdoor Cabinet | External Dimension | W×D×H 900×900×2150mm |
| Protection | IP55, outdoor application | |
| Cabinet Installation Method | Floor installed | |
| Layout | 40-45U. can be customized. | |
| Door | Two doors, one front door and one rear door. | |
| Lock | Three point lock system | |
| Material | Galvanized steel, double skins with thermal insulation | |
| Thermal Insulation | 20mm PEF | |
| Coating | Outdoor powder coating, corrosion resistant | |
| Color | RAL7035, grey | |
| Cooling | Air Conditioner |
Two air conditioners, Input Voltage: 220VAC 50/60Hz. Cooling Capacity: 1500W. |
| Power Supply |

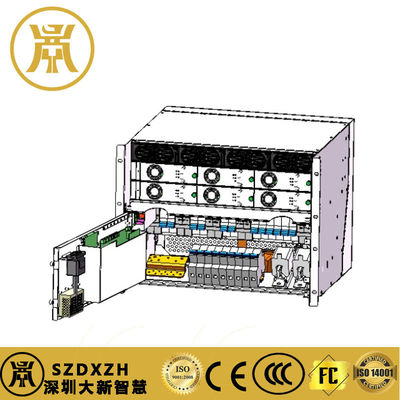

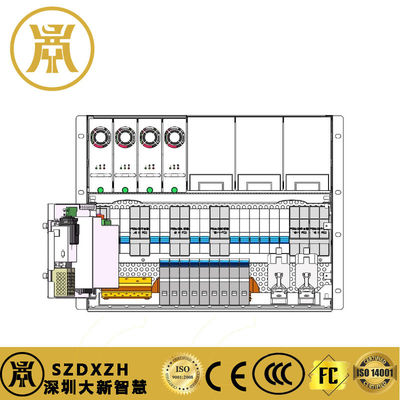

Rectifier- 19-inch rack mount, 3U height |
Input Voltage: 220VAC Output Voltage: -48VDC Output Power: 4800W Output Current: 0A Communication: RS485 |
| Monitoring and control |
Built-in monitoring module; Support primary load shedding and secondary load shedding. |
|
| Monitoring | Environment Monitoring System | 1U 19” installed environment monitoring unit, support SNMP communication, with web interface. Can monitor door open, smoke, water, temperature, humidity, AC power failure etc. |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Feature | Description |
| High Efficiency | MPPT efficiency >99.5%, system efficiency >96% in pure solar mode. |
| Modular Design | Hot-swappable rectifier/MPPT modules; supports N+X redundancy for zero downtime. |
| Smart Monitoring | Centralized control for solar, rectifier, battery, and load management. |
| Dual Energy Input | Solar prioritized, with wind/rectifier backup for uninterrupted power supply. |
| Wide Compatibility | Supports hybrid PV-wind configurations and grid-tie/off-grid applications. |

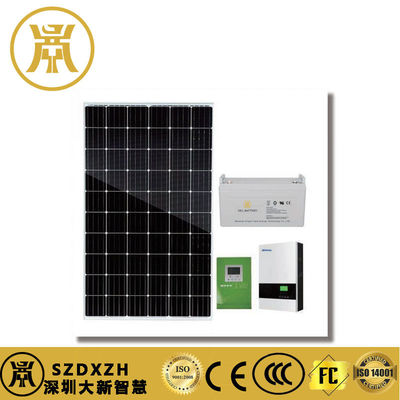

Configuration: Solar + Battery + Diesel Backup
Workflow: Solar powers loads and charges batteries; diesel activates during low battery.
Configuration: Solar + Inverter + Grid Connection
Workflow: Excess solar energy feeds into the grid, reducing costs and generating revenue.
Why Choose Us?
About Us:
Video
Video
Video
Video
|
