| Brand Name: | Daxin |
| Model Number: | ODC-705835CF2P-001 |
| MOQ: | 1 Set |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |

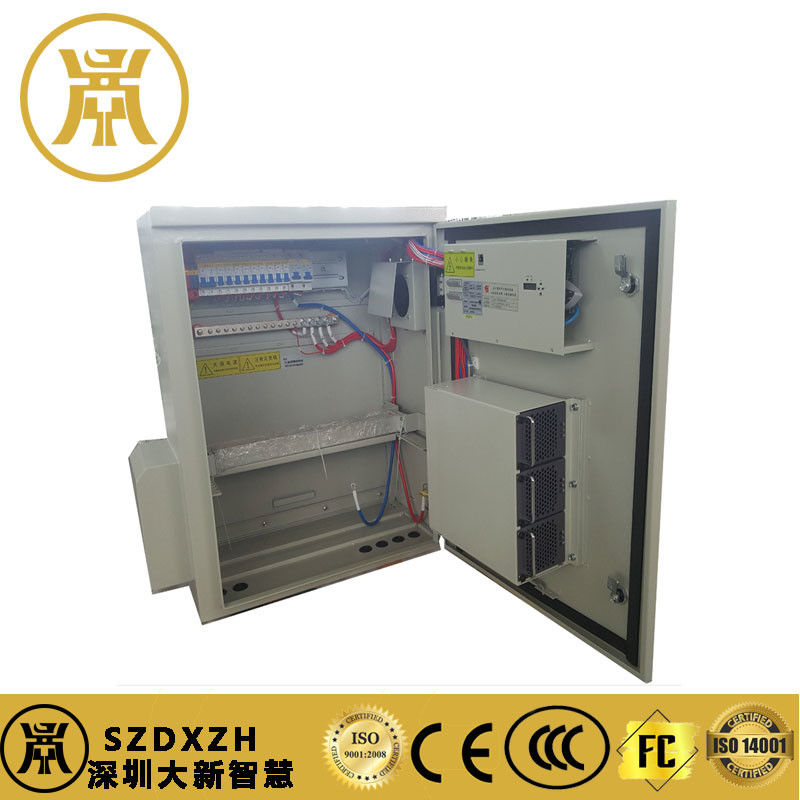

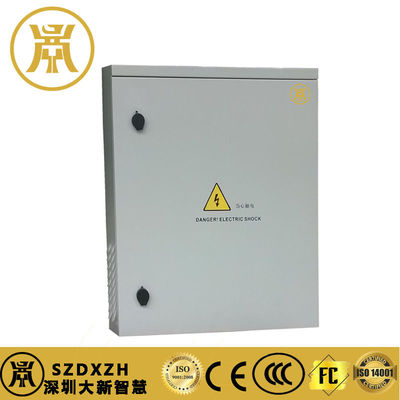

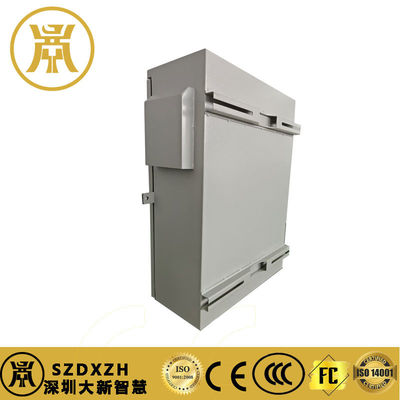

The WPS30000-150/150 Outdoor Power Cabinet is a 150A wall-mounted UPS designed for telecom, data communication, and satellite systems. It integrates AC/DC power distribution, temperature control, battery management, and remote monitoring in a rugged IP55-rated outdoor cabinet, supporting wall-mounting, floor-standing, and pole-mounted installations.
Max 150A capacity with -54V DC output
Integrated battery management (low-voltage protection, load shedding, temperature compensation)
Remote monitoring via RS232/RS485 & dry contacts
Dual AC/DC lightning protection (C-grade: 20-40kA)
Wide input voltage range (90-300V AC)
High efficiency (up to 95%) with hot-swappable rectifier modules
IP55 protection with forced-air cooling & built-in thermal control
Supports LiFePO4 (50Ah) or lead-acid (4x38Ah) batteries
| Component | Configuration | Details |
|---|---|---|
| Dimensions (H×W×D) | 700×580×350mm | Wall/floor/pole-mount |
| Cooling System | Dual air ducts + fan cooling | IP55 rated |
| Battery Support | 50Ah LiFePO4 or 4x38Ah lead-acid | Optional |
| Unit | Specification |
|---|---|
| AC Input | 63A/2P (Icu≥6kA, Ics≥6kA) |
| DC Output | 150A (adjustable: -42V to -58V) |
| Lightning Protection | AC: 20-40kA / DC: 10-20kA |
| Load Shedding | Primary (63A/1P) & Secondary (20A/1P) |
| Parameter | Value |
|---|---|
| Input Voltage | 90-300V AC (176-300V full load) |
| Output Voltage | -54V DC (±1% regulation) |
| Efficiency | ≥95% (220V AC) |
| Noise Level | ≤55dB |
| Condition | Operating Range |
|---|---|
| Temperature | -40°C to +45°C (full load at -40°C) |
| Humidity | 5-90% RH (non-condensing) |
| Altitude | ≤4000m (derating above 2000m) |
✔ Reliable UPS for Harsh Environments – Operates in extreme temperatures (-40°C to +45°C)
✔ Smart Battery Management – Auto voltage compensation, capacity calculation, and load shedding
✔ Flexible Monitoring – Supports remote control via RS485/dry contacts
✔ High Safety Standards – Meets YD/T1058-2000, IEC61000-4-5 (surge protection), and EN55022 (EMC)
Ideal for:
Telecom base stations
Satellite & data communication hubs
Outdoor power backup systems
Upgrade to the WPS30000-150/150 Outdoor Power Cabinet for unmatched reliability in critical power applications.
