| Brand Name: | daxin |
| Model Number: | DX-B-48V100AH |
| MOQ: | 10 |
| Price: | 780 USD |
| Packaging Details: | Wooden pallet+cardboard box |
| Payment Terms: | T/T, Western Union |
【Parameter】
1 【Rating Voltage】 51.2V
2【Capacity】 102Ah【Minimum Capacity】(a) 100Ah
3 【Energy】 5.22KWh
4 Shipping voltage ≥48.0V
5【Charge Voltage】 57.6V
6 【End of Discharge Voltage】 40.0V (Battery standard discharge)
7 【Charging Mode】 Constant current/constant voltage mode【C.C/C.V.】(Voltage conversion)
8 【ChargingCurrent】
【Standard】 20A (≈0.2C)
【Fast】 50A (≈0.5C)
9 【Charging Time】
【Standard】 6.0Hours
【Fast】 2.5Hours
| NO | Item | SPEC | Remark |
| 1 | Rated Capacity | 100AH | |
| 2 | Rated Voltage | DC48 | |
| 3 | Rated Energy | 4800wh | |
| 4 | Operating Voltage | 37.5V～54.75V | 2.8V～3.65V |
| 5 | Max. Charge Current | 50A | 0.5C |
| 6 | Max. Discharge Current | 100A | 1C |
| 7 | Peak Current | 300A | |
| 8 | Ip Grade | IP20 | |
| 9 | Discharge Temp | -10℃～55℃ | |
| 10 | Charge Temp | 0℃～55℃ | |
| 11 | Dimension | L495*W482*H175(mm) | |
| 12 | Weight | 42Kg | |
| 13 | Internal Resistance | ≤30mΩ | |
| 14 | Cycle Life | 6000 | 25℃ |

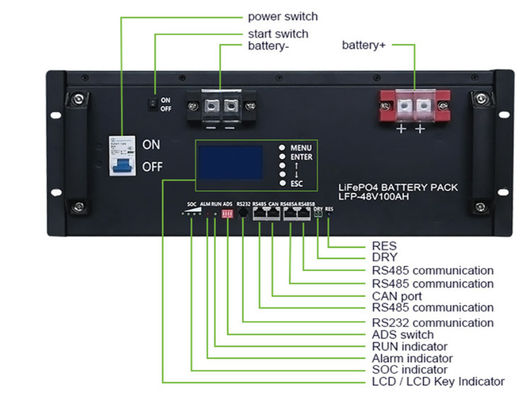

| 15 | Communication | CAN+RS485 | |
| 16 | Modei | 48v100AH |
1
【discharge current】
【Standard】 20A (≈0.2C)
【Max】 100A (≈1.0C)
120A (≈1.2C)3sec
11 【Operating Temperature】
【Charging】 0~50℃
【Discharging】 -20~60℃
12 【Recommend Storage Temperature】(b) 25±5℃
13 【Impedance】 ≤100.0mΩ
14 【Weight】
≈31.0 kg(Without box)
≈48.0 kg(With box)
15 【Cycle Life】
≥5000 cycles @70% DOD @70% EOL
@25℃ @0.2C
16 Combination mode (series and parallel)16S1P

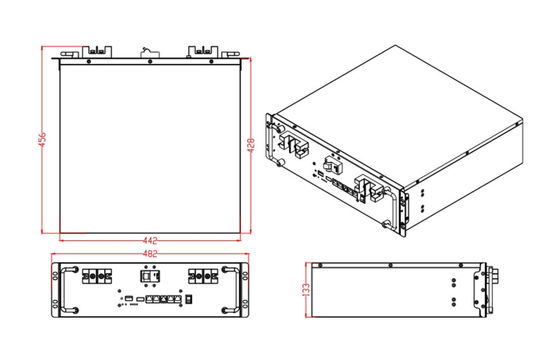

17 Overall dimensions (length*width*height) 428*442* 133mm
R
备注【Remark】
a, 常温完全充电后用 0.2C 放电至截止电压. [Ordinary temperature 0.2C discharge after full charge]
b,贮存时应充电至容量的 40%~50%[Storage capacity should be 40%~50% full charge capacity ]
|
