| Brand Name: | daxin |
| Model Number: | DX-INV6K |
| MOQ: | 10 |
| Price: | 2200 |
| Packaging Details: | Wooden pallet+cardboard box |
| Payment Terms: | T/T, Western Union |

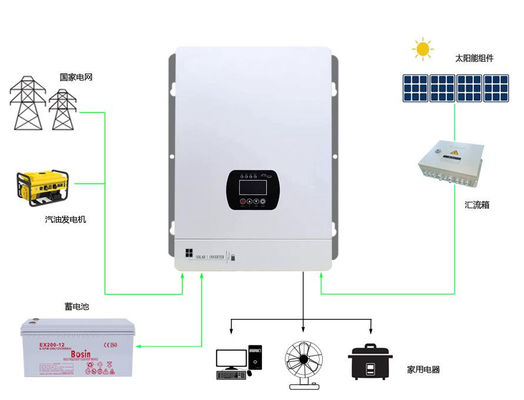

Features: Power frequency energy-saving transformer, full bridge pure sine wave output, low loss and high efficiency; ◇ Three modes can be switched freely, and the city power priority/power saving mode/photovoltaic priority can be set, so the application is flexible; ◆ It has two working modes: mains bypass and inverter output, and is equipped with UPS uninterruptible power supply; Built in high-efficiency MPPT solar controller 60A; LCD+LED dual display, keep track of the system's operating status at any time, and the data is clear at a glance; Efficient and intelligent, with adjustable output voltage and frequency; Support multiple communication interface options, remote monitoring (RS232/mobile APP (WIFI/GPRS));
| model | SUN202 | SUN302 | SUN402 | SUN502 | SUN602 |
| Rated power | 2000W | 3000W | 4000W | 5000W | 6000W |
| Peak power (MS) | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Battery input | |||||
| Nominal voltage | 12V/24DC | 24V/48VDC | 24V/48VDC | 48VDC | 48VDC |
| Charging current | 0-30A | ||||
| Charging voltage | 13.8VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Battery High voltage alarm | 15VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Low voltage alarm of battery | 10.5VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Battery type | Lithium battery/gel (customized) | ||||
| Communication input | |||||
| Voltage | L N+PE 110V/120V;220V/230V/240V | ||||
| Voltage range | 75-135VAC for 110V;145-265VAC for 220V | ||||
| frequency | 50/60HZ adaptive | ||||
| Communication output | |||||
| Voltage | L N+PE 110V/120V;220V/230V/240V(Can be set) | ||||
| frequency | 50/60HZ±1%(Can be set) | ||||
| Surge power | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Efficiency | 89% | 90% | 90% | 90% | 90% |
| conversion time | ≤8ms | ||||
| Output waveform | Pure sine wave | ||||
| protection | |||||
| Display | Forced air cooling | ||||
| heat dissipation method | Overvoltage protection, undervoltage protection, overload protection, surge protection, over temperature protection, short circuit protection, etc | ||||
| display | LCD+LED | ||||
| communication (optional) | RS232/RS485/APP/WIFI | ||||
| Working mode | |||||
| Priority given to mains electricity | Prioritize the use of State Grid power supply, and automatically switch to inverter (battery) mode during power outages | ||||
| Power saving mode | Automatically switch to sleep mode when no load is detected in the inverter state | ||||
| Priority given to photovoltaics | Prioritize the use of photovoltaic power generation, with complementary batteries and the power grid | ||||
| Photovoltaic input | |||||
| Maximum photovoltaic input | 12V:18-150VDC | 24V:36-150VDC | 48V:60-150VDC | ||
| Maximum charging current | MPPT 60A | ||||
| Maximum photovoltaic power | For 12V:System:750W | For 12V:System:1500W | For 12V:System:3200W | ||
| Best MPPT | For 12V:System:18-50V | For 12V:System:36-80V | For 12V:System:72-110V | ||
| Maximum working voltage | For 12V:155VDC | For 24V:155VDC | For 48V:155VDC | ||
| Open circuit | |||||
| voltage environment | 0%~95% No condensation | ||||
| relative humidity | “-10℃~40℃ | ||||
| working temperature | ”-15℃~60℃ | ||||
| Storage temperature | |||||
| Packaging size (D * W * H) mm | 630*450*290 | ||||
| Weight (kg) | 20kg | 23kg | 28kg | 32kg | 35kg |
|
