3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply

Brand Name: daxin
Model Number: DX-C-1k20AH
MOQ: 10
Price: 2850
Packaging Details: Wooden pallet+cardboard box
Detail Information
Product Description
Detail Information
Place of Origin:
shenzhen
Certification:
CE,UL
Color:
Ral7035 Or Ral7032
Type:
Distribution Box,battery/ Meter Box,Outdoor
Protection Level:
IP55
Material:
Cold-roll Steel/Stainless Steel
External Size:
600*800*450mm
Application:
Electric Power System
Supply Ability:
10000pcs/month
Product Description
Chapter 二 technical specifications
1. The main technical indicators of the equipment
1.1 environmental conditions
Operating Temperature:-40℃~55℃; ,
Storage temperature:-40℃~65℃.
Operating relative humidity:≤90%(at 40±2℃).
Storage relative humidity:≤95%(at 40±2℃).
1.2 Vibration
Withstand sine wave vibration with frequency of (10~55) Hz and amplitude of 0.35mm.
1.3 Seismic strengthening
The seismic strengthening of the system meets the requirements of YD 5096-2016 Code for Seismic Performance Testing of Communication Power Equipment
1.4 Appearance, structure
1.4.1 Shape.
Dimensions: 300mm (W) * 400mm (D) * 68mm (H)
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 0

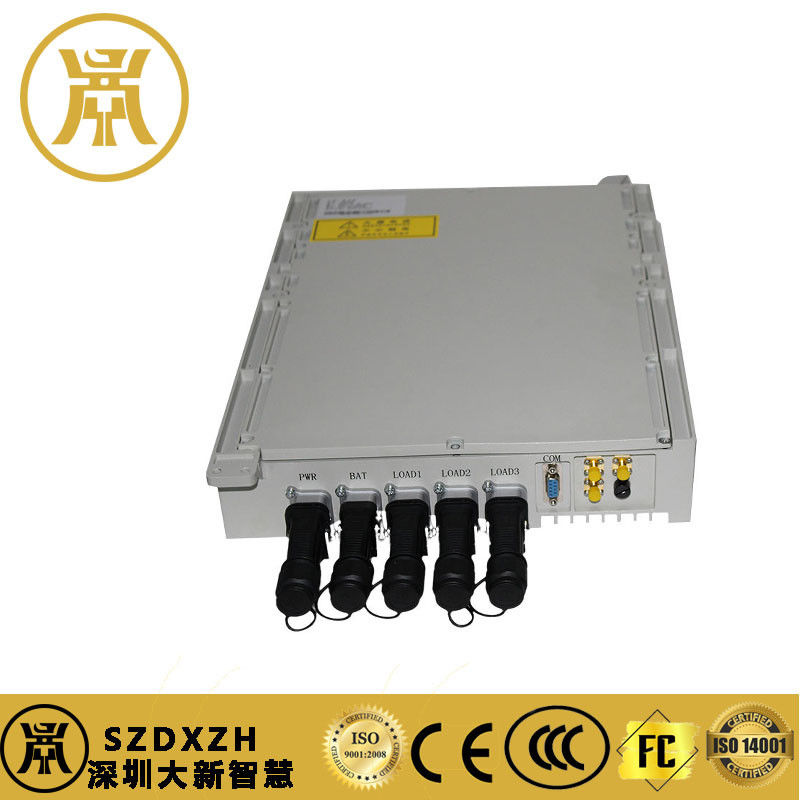

1.4.2 Input and output interfaces
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 1


From left to right: AC Input, Battery Connector, DC Load 3, DC Load 2, DC Load 1, Communication Port, Antenna Connector and Ventilation Valve

1.4.3 Schematic diagrams of indicator lamps
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 2
From left to right: green (running light), yellow (warning light), red (fault light)

1.4.4 Schematic diagram of mounting method.

Installation of derrick and flat installation 80mm * 80mm
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 3

Flag mounted 80mm * 80mm
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 4

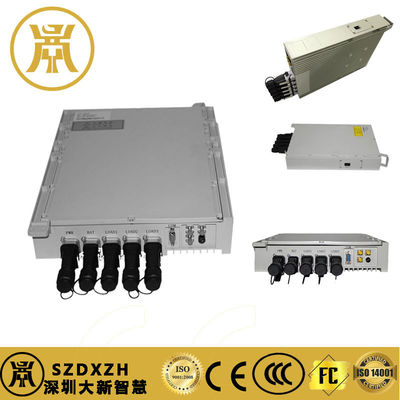

1.4.5 The overall effect of the appearance of the product
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 5

1.5 power supply technical requirements
5.1 Electrical performance
5.1.1 Input voltage range
AC 220V, rated voltage 220V, input voltage range: 176V~264V;
When AC input is 100Vac~175Vac, derate to output 1000W
Nominal value DC 240V/336V, rated voltage 378V, input voltage range: 260~400V (192V~280V).
When DC input is 140Vdc~240Vdc, derate to output 1000W
5.1.2 AC input power requirements
1) Rated frequency
The rated frequency is 50Hz.
2) AC frequency fluctuation range
The fluctuation range of input frequency is 50Hz ± 2.5Hz.
5.1.3 Input power factor
The input power factor of the system at different load factors satisfies the requirements of Table 1.
Input power factor table Table 1
input power factor at different loads Requirements
At 100% load factor , the >0.99
At 50% load factor , the >0.98
At 20% load factor , the >0.94
5.1.4 Input voltage waveform distortion rate
Input voltage waveform distortion rate is not more than 5%.
5.1.5 Input current total harmonic distortion
The input current harmonics of the system at different load factors satisfy the requirements of Table 2.
Input Current Total Harmonic Distortion Table Table 2
total harmonic distortion of input current at different loads Requirements
At 100% load factor ≤5%
At 50% load factor ≤8%
At 20% load factor ≤10%
5.1.6 Input no-load losses
No load loss of equipment is less than 1% (20W) of rated power.
5.1.7 Output voltage setting range value ,
The nominal value is - 48V, the output voltage range is 43V-57V, and the voltage stabilization accuracy is ± 0.5%.
5.1.8 efficiency
The output nominal value - 48V efficiency meets the requirements in Table 3.
Nominal Output Values - 48V Efficiency Table 3
load factor Efficiency
100% load ≥95.5％
50% load ≥96％
20% load ≥93.5％
3KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply 6
