| Brand Name: | SZDXZH |
| Model Number: | H3KL |
| MOQ: | 1 pcs |
| Price: | Negotiable |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |

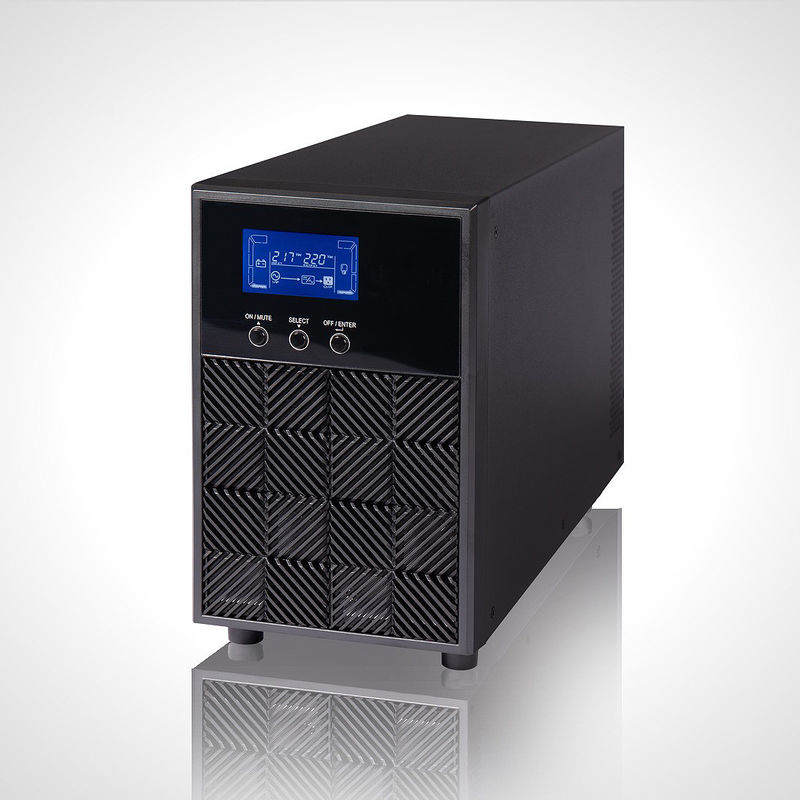

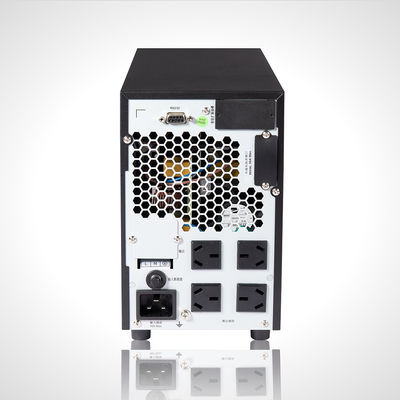

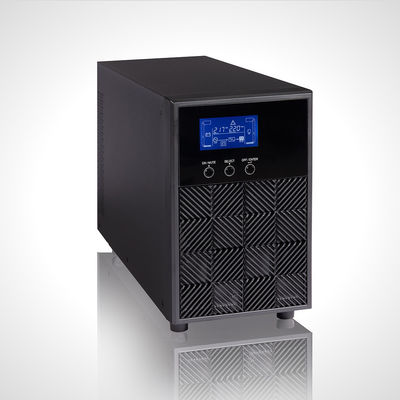

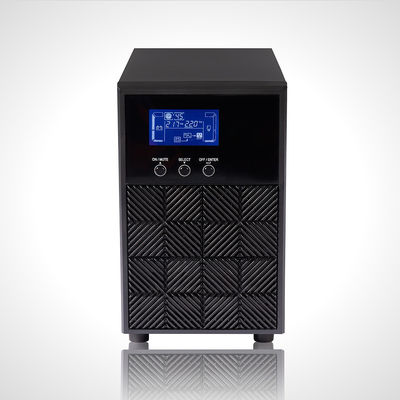

Power Range: 3K VA
Working mode: single input and single output, double conversion online operation.
Application scope: Widely used in various industries such as government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical care, energy and electricity, etc.
Features:
·True online double conversion
·Microprocessor control ensures high reliability
·Input power factor correction
·Output power factor can reach 0.8
·Wide mains input range (110 V – 300 V)
·Efficient frequency conversion mode
·Generator compatible
·Optional exquisite SNMP card can be perfectly monitored alone or with USB, RS232
·Simple operation control through the display, and comprehensive display monitoring UPS status
·ECO mode provides energy saving effect
·Emergency power off (EPO)
·Models above 6K use DSP technology, built-in maintenance bypass switch (optional)
·Smart battery charging design extends battery life and performance
·Built-in isolation transformer (optional)
Technical Parameters
| model | H3 KL | |
| Phase | Single-phase grounding | |
| capacity | 3000 VA / 2400 W | |
| enter | ||
| Voltage range | 110 -300VAC at 50% load | |
| 160 -280 VAC at 100% load | ||
| Frequency range | 40Hz ~ 70 Hz | |
| Power Factor | ≧0.99 | |
| Output | ||
| Output voltage | 200/208/220/230/240VAC | |
| Voltage range (battery mode) | ± 1% | |
| Frequency range (synchronous correction range) | 47~53 Hz or 57~63 Hz | |
| Frequency range (battery mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz | |
| Surge ratio | 3:01 | |
| Harmonic distortion | ≦ 3% THD (Linear Load) | |
| ≦6% THD (non-linear load ) | ||
| Conversion time | AC to DC | 0ms |
| Inverter to Bypass | 4 ms (under standard conditions) | |
| Waveform (Battery Mode) | Pure sine wave | |
| efficiency | ||
| Mains mode | 90 % | |
| Battery Mode | 88 % | |
| Battery | ||
| Standard Machine | Battery Model | 12V / 9AH |
| quantity | 6 | |
| Maximum charging current | 1.0A (max) | |
| Long-acting machine | Battery Model | Depends on battery configuration |
| quantity | 8 | |
| Maximum charging current | 1A/2A/4A/6A (adjustable) | |
| Appearance | ||
| LCD or LED display | Load size, Battery capacity, AC mode, Battery mode, Bypass mode, Fault indication | |
| Dimensions | ||
| Standard Machine | Dimensions, depth x width x height (mm) | 421 x 190 x 318 |
| Net weight (kg) | 27.6 | |
| Long-lasting models | Dimensions, depth x width x height (mm) | 397 x 145 x 220 |
| Net weight (kg) | 7.4 | |
| Usage Environment | ||
| Temperature and humidity | Relative humidity 20-90 % and temperature 0- 40°C (non-condensing) | |
| noise | Less than 50dBA @ 1 meter | |
| Control Management | ||
| Smart RS-232 / USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | |
| Optional SNMP | Power management supports SNMP management and network management | |
*When 1-3KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 80%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 80%. When
6/10KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 60%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 90%.
*The above commonly sold models do not support redundant parallel operation.
*200/208/220/230/240VAC is only applicable to long-term machines (200VAC is only applicable to 1-3KVA)
——UPS power solution service provider——
|
