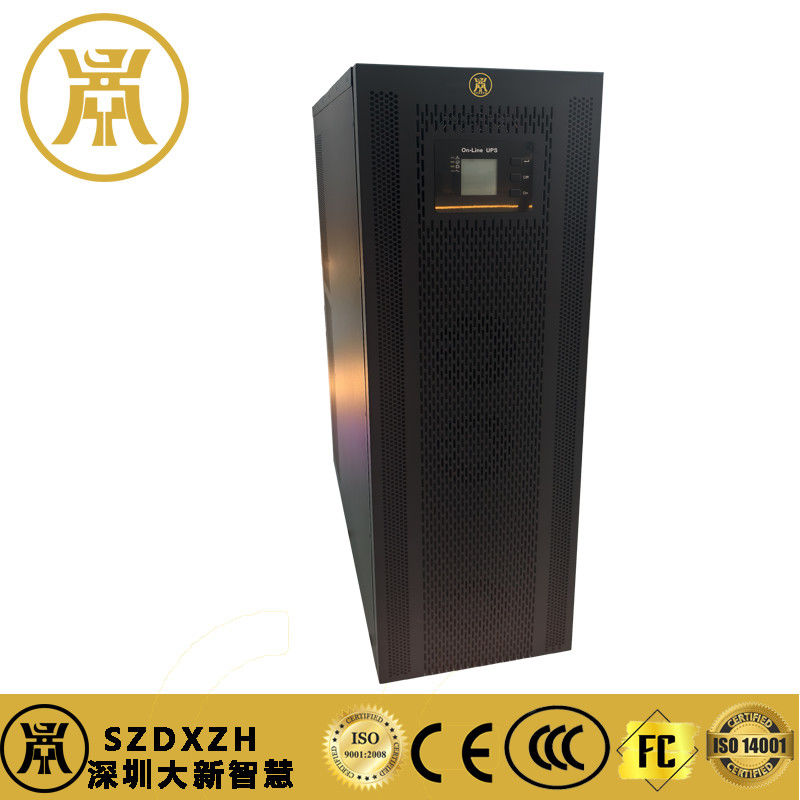

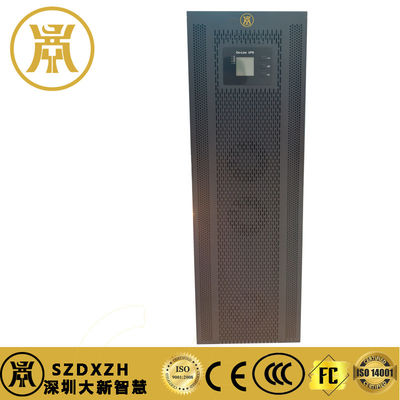

48KW The Energy-Efficient Smart UPS 33 Dual-Conversion Online Type With LCD Display

Brand Name:	Daxin
Model Number:	EX3C3 60K
MOQ:	1 pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	10000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Product Brochure PDF

Feature:

Energy-Efficient

UPS Type:

Online

Size:

815*300*1000mm

User Interface:

LCD Display

Input Phase:

3-Phase

Output Voltage:

3×380VAC/400VAC

Packaging Details:

Woodcase/ Paper box

Supply Ability:

10000pcs/month

Product Description

48KW The Energy-Efficient Smart UPS 33 Dual-Conversion Online Type With LCD Display

Product Attributes

Attribute	Value
Feature	Energy-Efficient
UPS type	Online
Size	8153001000mm
User Interface	LCD display
Input Phase	3-Phase
Output voltage	3×380VAC/400VAC

Applications

Industrial equipment: Provides power protection for factory production lines and motor-driven equipment.
Large data centers: Provides stable power supply for servers, storage devices, etc.
Petrochemical: Provides backup power for critical equipment in the petrochemical industry.
Power systems: Used in critical nodes of power systems to ensure continuous power supply.
Medical equipment: Provides power protection for large medical equipment (e.g., MRI, CT).

Product Features

High Reliability Design

Double conversion online topology design enables UPS output frequency tracking, phase locking, voltage stabilization and noise filtering, and is not affected by power grid fluctuations.

Advanced modular dual CPU control has reliable overall operation and high stability, ensuring the overall efficiency of UPS safe operation.

CPU controls the charging of current, and the charger periodically charges the current according to the capacity of the battery.

The input harmonic filter meets American and European standards, allowing UPS to reduce the pollution of mains feedback.

Adopting advanced power factor correction PFC technology, the input power factor is almost 1 regardless of how the load and mains voltage change.

Wide AC input voltage range: 380VAC±25%, avoid frequent switching to battery power, and adapt to areas with harsh power environment.

Using high-frequency filtering synchronization circuit, fast tracking of synchronization frequency and power gradual growth function.

Harmonic filters are set at the input and output to minimize the harmonic interference of UPS to the power grid.

DC start function can directly start the UPS when there is no mains power to meet the user's emergency needs.

Perfect Whole Machine Protection Capability

It has multi-function protection such as output overload protection, output short circuit protection, inverter over-temperature protection, battery undervoltage warning protection and battery overcharge protection.

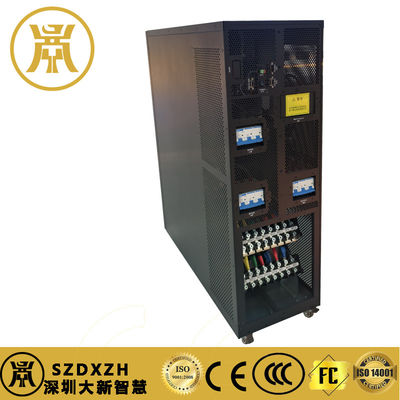

Equipped with manual maintenance switch, when UPS fails, it can switch to bypass working state without interruption.

Interface Management Function

LCD display can record UPS working status, parameter information, etc. in real time, making it convenient for users to manage UPS.

Network Monitoring Management

Through RS232/RS485 communication interface, SNMP network adapter, and UPS intelligent monitoring software, it can communicate with the computer.

Optional Intelligent Battery Monitoring Module

Can detect single cells, with overvoltage, undervoltage and differential pressure alarm functions.

High Environmental Adaptability

The circuit board is placed in a completely enclosed space and treated with "three-proof" coating, which is more suitable for the harsh environment of tunnels and squares.

Technical Parameters

Parameter	Specification
Model	EX3C3 60K
Capacity	60KVA/48KW
Input Rated Voltage	3×380VAC/400VAC (3 phases + N line)
Input Voltage Range	285VAC～475VAC
Frequency Range	50/60Hz±10%
Output Voltage	3×380VAC/400VAC (3 phases + N line)
Voltage Stability	Steady state: ±1% typical Transient: ±5% typical (load change 100-0-100%)
Frequency Synchronization Range	50/60Hz synchronization ±1% Mains power loss ±0.1Hz
Output Waveform	Sine Wave
Total Harmonics (THDv)	﹤2%(Linear load) ﹤5%(non-linear load)
Phase Imbalance	120±1% (balanced load) 120±2% (50% unbalanced load)
Overall Efficiency (Online Mode)	94%
Overall Efficiency (Battery Mode)	93.5%
Dimensions (L×W×H)	790 × 360 × 1010 mm
Weight	85 Kgs
