| Brand Name: | daxin |
| Model Number: | DX-P-150A-50AH |
| MOQ: | 10 |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000pcs/month |
| Attribute | Value |
|---|---|
| Color | Ral7035 or Ral7032 |
| Type | Distribution Box, Battery/Meter Box, Outdoor |
| Protection Level | IP55 |
| External Size | 600*800*450mm |
| Application | Electric Power System |

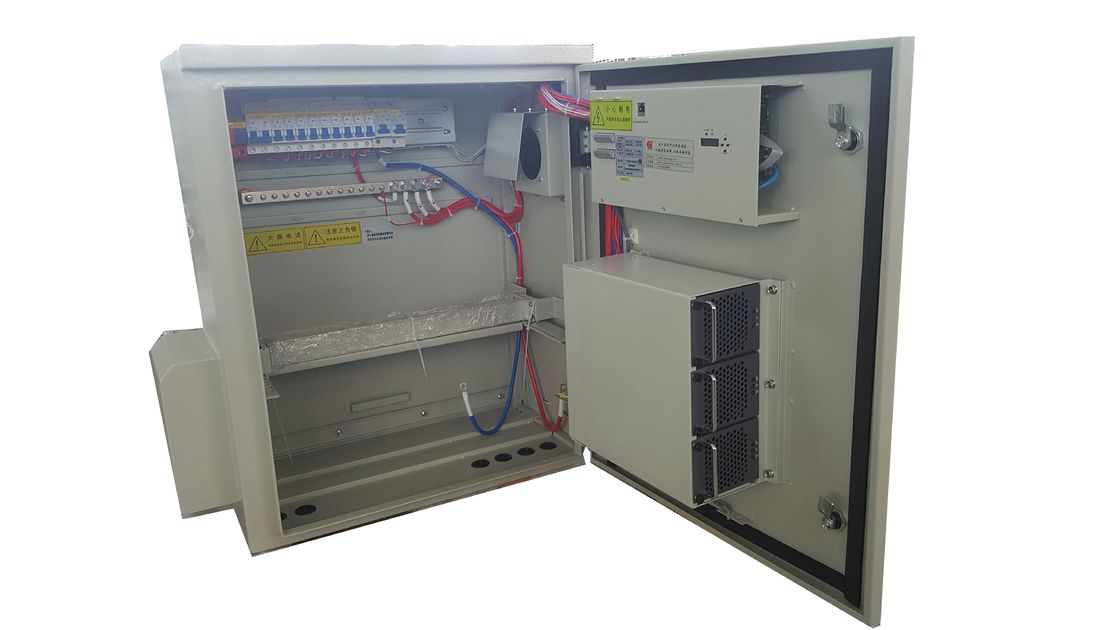

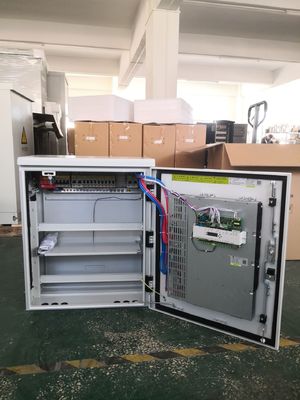

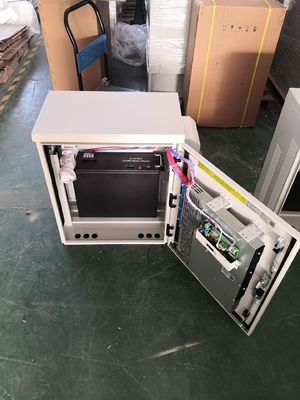

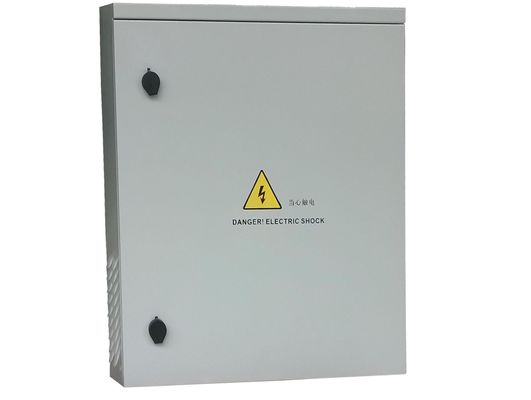

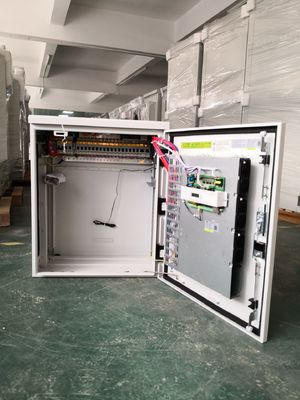

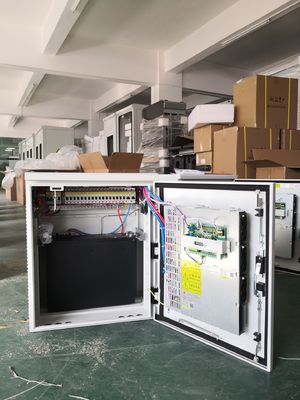

The DX-P-150A-50AH wall-mounted power supply is designed for communication systems with a maximum total capacity of 150A. It supports various installation methods including wall-mounted, floor-mounted, and pole-mounted configurations.
This integrated solution combines communication power supply, AC/DC distribution, temperature control, monitoring, and lightning protection systems. It features comprehensive battery management including low voltage protection and load shedding functions.
Key capabilities include:
Ideal for applications with wide power grid fluctuations including base stations, small/medium exchanges, satellite communications, and data communications.
The system input is distributed to rectifier modules through a 63A/2P circuit breaker with parallel AC C-level lightning protection at the input end.
Rectifier modules operate in parallel, with DC output connected via busbar to supply battery packs and DC loads. Loads are controlled by fuses or air switches, providing overload and short circuit protection.
The monitoring module controls system parameters and operations. During power failures, the system automatically switches to battery power with multiple protection levels to prevent battery damage.
Dimensions: 700mm (H) × 580mm (W) × 350mm (D)
Comprises:

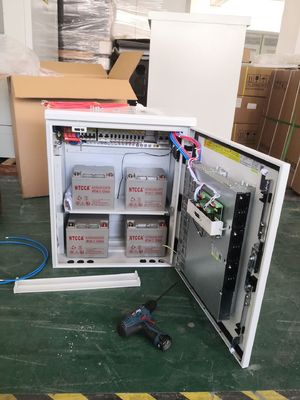

Features include forced heat dissipation with built-in fans, IP55 protection, built-in temperature control system, and space for battery installation.
| Component | Configuration | Notes |
|---|---|---|
| AC Distribution Unit | Communication on lightning protection | Grade C:20~40KA |
| Communication Input | 63A/2P*2 | ICU ≥6kA, Ics ≥6kA |
| Rectifier Module | RM4850*3 | |
| Monitoring Unit | SM32 | |
| DC Distribution Unit | Multiple configurations | Various protection levels and capacities |
| Parameter | Unit | Operating | Transport | Storage | Notes |
|---|---|---|---|---|---|
| Low Temperature | ℃ | -40 | -40 | -25 | -40℃ full load start |
| High Temperature | ℃ | 45 | 70 | 55 | 55-65℃ linear derating 20% |
| Relative Humidity | % | 5-90 | 90(40±2℃) | - | Short term: 0-95% non-condensing |
| Altitude | m | ≤4000 | - | - | Above 2000m: -0.5℃ per 100m |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Input Voltage | 90-300 | Vac | 176-300Vac full load, 90-175Vac reduced load |
| Input Maximum Current | 57 | A | |
| Input Power Factor | ≥0.99 | Full load |
| Parameter | Value | Unit | Notes |
|---|---|---|---|
| Output Rated Voltage | -54 | Vdc | IN220Vac |
| Output Voltage Range | -42 to -58 | Vdc | Adjustable via monitoring |
| Output Rated Current | 150 | A | |
| Output Efficiency | ≥95% | 220Vac/Rated load (high-efficiency module) |
