1KW 5G power supply/microsite power supply/pole mounted power supply/outdoor power supply/pole mounted power supply

Brand Name:	daxin
Model Number:	DX-C-1k20AH
MOQ:	10
Packaging Details:	Wooden pallet+cardboard box

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

CE,UL

Document:

Color:

Ral7035 Or Ral7032

Type:

Distribution Box,battery/ Meter Box,Outdoor

Protection Level:

Material:

Cold-roll Steel/Stainless Steel

External Size:

600*800*450mm

Application:

Electric Power System

Supply Ability:

10000pcs/month

Product Description

1KW 5G Power Supply - Outdoor Pole Mounted Power Distribution System

Product Specifications

Color Options	RAL7035 or RAL7032
Type	Distribution Box, Battery/Meter Enclosure, Outdoor
Protection Level	IP55 Weatherproof Rating
Construction Material	Cold-Rolled Steel/Stainless Steel
External Dimensions	600 × 800 × 450mm (W × H × D)
Primary Application	Electric Power Systems Infrastructure

Technical Specifications

Environmental Performance

Operating Temperature Range: -40℃ to +55℃
Storage Temperature Range: -40℃ to +65℃
Operating Humidity: ≤90% at 40±2℃
Storage Humidity: ≤95% at 40±2℃

Mechanical Durability

Vibration Resistance: 10-55Hz sine wave at 0.35mm amplitude
Seismic Performance: Complies with YD 5096-2016 standard for communication power equipment

Physical Characteristics

Dimensions: 300mm (W) × 400mm (D) × 200mm (H)

Interface Configuration

Interface arrangement (left to right):

AC Input
Battery Connector
DC Load 3
DC Load 2
DC Load 1
Communication Port
Antenna Connector
Ventilation Valve

Mounting Options

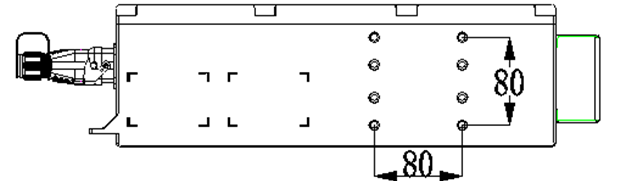

Detail of 80mm × 80mm flag mounting bracket for installation

Available installation methods: Pole mount or flat surface mounting

Complete System View

Electrical Performance

Input Specifications

AC Input: 220V nominal (176V-264V range)
Derated operation: 1000W output at 100-175VAC
DC Input: 240V/336V nominal (260-400V range)
Derated operation: 1000W output at 140-240VDC
Frequency: 50Hz ± 2.5Hz

Power Quality

Load Factor	Power Factor	THD
100%	>0.99	≤5%
50%	>0.98	≤8%
20%	>0.94	≤10%

Output Performance

No-load losses: <1% of rated power (20W max)
Output voltage: -48V nominal (43V-57V range)
Voltage regulation: ±0.5% accuracy
Waveform distortion: ≤5%

System Efficiency

Load Factor	Efficiency
100%	≥95.5%
50%	≥96%
20%	≥93.5%
