Outdoor Power Cabinet

Heat Insulation Outdoor Electrical Panel Enclosure Power Distribution Box CE Certified

All Category

Industrial And Commercial Energy Storage System

Lead Acid Battery

Miss. wang

lili@szdxzh.com

+86 18824306941

+86 18824306941

Contact Now

Heat Insulation Outdoor Electrical Panel Enclosure Power Distribution Box CE Certified

Brand Name:	daxin
Model Number:	ODC-210909C2T
MOQ:	1 pcs
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Illumination:

DC48V LED Lamp

Battery Shelf No:

One Battery Shelf

Cabinet Layout:

One Compartment

Embedded Power Supply:

Brand: Emerson

Protection Level:

Supply Ability:

10000pcs/month

Highlight:

CE Outdoor Electrical Panel Enclosure

Heat Insulation Power Distribution Box

2 Compartments Power Distribution Enclosure

Product Description

Heat Insulation Outdoor Electrical Panel Enclosure Power Distribution Box - CE Certified

Key Attributes

Attribute	Value
Illumination	DC48V LED Lamp
Battery Shelf No	One Battery Shelf
Cabinet Layout	One Compartment
Embedded Power Supply	Brand: Emerson
Protection Level	IP55

Product Specifications

Project	Name/Description	Specifications/Models	Parameter
1	Outdoor integrated power cabinet	7507501750	Cabinet outer dimensions: W×DxH 7507501750mm Cabinet composition: cabinet body + cabinet door + base + top cover + rack + cabinet lock Cabinet type: 1 unit 1 compartment, front door, floor installation Cabinet material: 1.5mm galvanized plate Thermal insulation performance: thermal conductivity <0.472W/(m2.k) Equipment shelf: 19-inch rack 32U 3 pairs of support bars, 1 tray Cabinet base: 100mm high, 2.0mm thick Cable entry: bottom in and bottom out φ50*4 Anti-theft design: embedded door, embedded link, point anti-theft lock Protection level: IP55 Color: RAL7035, professional outdoor powder spraying Includes: grounding copper bus, LED Light, door magnetic switch, cooling fan (optional)
1	Outdoor integrated battery cabinet	7507501750	Cabinet outer dimensions: W×DxH7507501750mm Cabinet composition: cabinet body + cabinet door + base + top cover + rack + cabinet lock Cabinet type: 1 unit 1 compartment, front door, floor installation Cabinet material: 1.5mm galvanized plate Thermal insulation performance: thermal conductivity <0.472W/(m2.k) Equipment shelf: 3-layer battery rack, supporting 3 groups of 48V 100AH batteries Cabinet base: 100mm high, 2.0mm thick Cable entry method: bottom in and bottom out φ50*4 Anti-theft design: embedded door, embedded link, point anti-theft lock Protection level: IP55 Color: RAL7035, professional outdoor powder spraying Contains: grounding copper bus, LED Light, door magnetic switch, cooling fan (optional)
2	Embedded switching power supply 200A	ET-PS48200Z-6U	Standard 19-inch, embedded frame 6U high AC input 380V, DC output 48V Equipped with 50A rectifier module * 3, monitoring management module * 1 Includes battery charging management Power distribution part: AC input circuit breaker DZ47-63/4 C63 63A/4P1 Three-phase AC C-class lightning arrester 20~40KA AC output: circuit breaker DZ47-63/2 C32 32A/2P1; ground terminal1 DC C-class lightning arrester 20~40KA 1P1 DC output configuration detailed in specifications
3	Power distribution unit	3U	19-inch 3U high embedded frame AC380V input 63A/4P×2 (AC input, oil engine input + mechanical interlocking piece) Three-phase Class B lightning arrester×1 Multiple circuit breakers and maintenance socket included
4	Lithium battery	5u 200AH
5	ODF rack	Round head 12 core
6	AC Air Conditioner	500W	Add insulation particles, 3 wiring screw positions
7	TEC Air Conditioning	Cooling capacity: 200W	Can be replaced with compressor air conditioner

Technical Support & Services

Our Outdoor Power Cabinet comes with comprehensive technical support to ensure optimal performance. Our expert team provides:

Pre and post-installation assistance
Maintenance and repair services
Training and educational resources
Ongoing system optimization

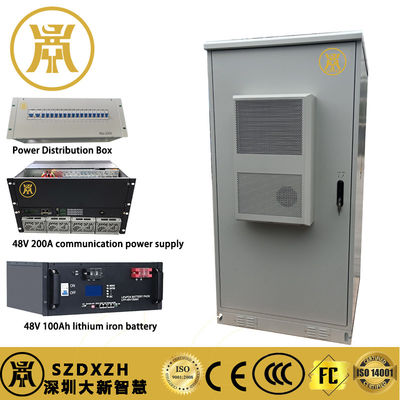

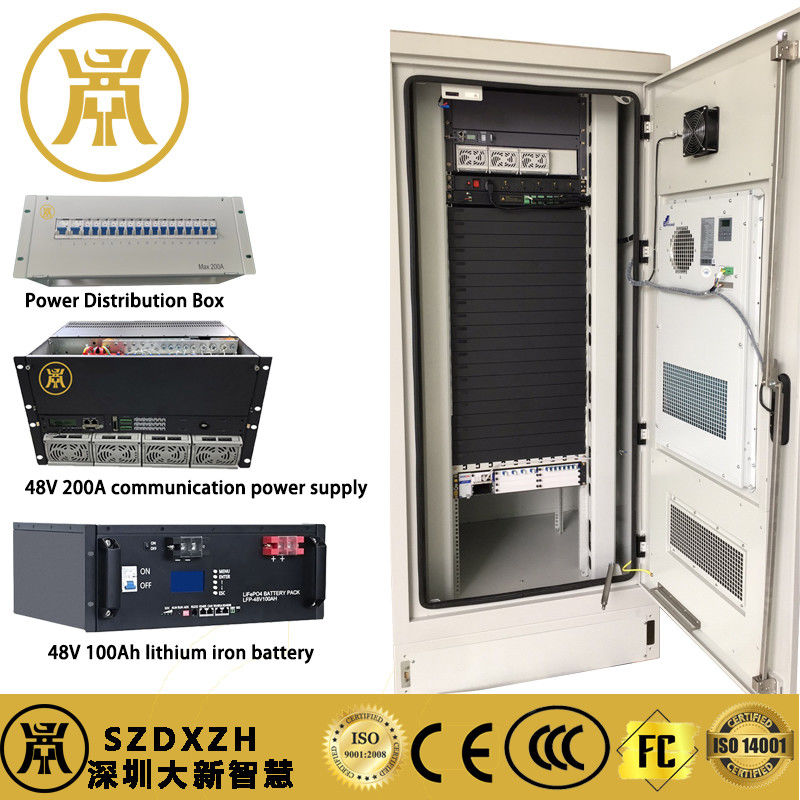

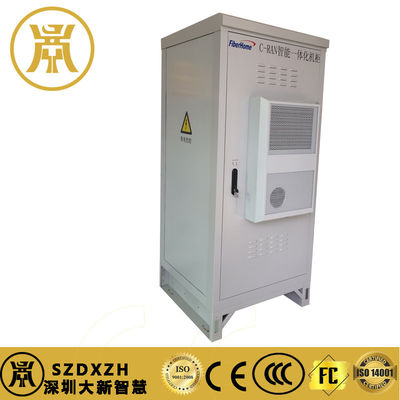

Product Images
