Wall Mounted Weatherproof Power Control Cabinet Electrical Cabinet Rack

Brand Name:	daxin
Model Number:	WPS30000-150
MOQ:	1 pcs
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Surface:

Outdoor Powder Coating

Product Name:

Power Supply Cabinet/power Supply Cabinet Power/AC To DC Power Supply/48V Power Supply

Product Category:

Outdoor Power Cabinet

Dimension:

700H * 350D * 580W

Model No:

WPS30000-150

Capacity:

48V/10A~150A

Installation Method:

Wall Installed

Cabinet Layout:

One Compartment

Supply Ability:

10000pcs/month

Highlight:

Floor Installed External Electrical Rack

Floor Installed Power Control Cabinet

Weatherproof External Electrical Cabinet

Product Description

Wall Mounted Weatherproof Power Control Cabinet Electrical Cabinet Rack

Product Specifications

Attribute	Value
Surface	Outdoor Powder Coating
Product Name	power supply cabinet/power supply cabinet power/AC to DC power supply/48V power supply
Product Category	Outdoor Power Cabinet
Dimension	700H * 350D * 580W
Model No	WPS30000-150
Capacity	48V/10A~150A
Installation Method	Wall Installed
Cabinet Layout	One Compartment

Product Overview

Dimensions: 700mm × 580mm × 350mm (H×W×D)

Comprised of AC distribution unit, monitoring unit, rectifier module unit, and DC distribution unit

Multiple installation options: floor, wall, or pole mounted

Left and right air ducts with built-in fan for forced heat dissipation

IP55 rated with built-in temperature control system

Accommodates one set of 50AH ferroelectric batteries or four 38AH lead-acid batteries

Hot-swappable rectifier modules for easy maintenance

Key Features

Maximum total capacity of 150A for communication systems

Integrated communication power supply with AC/DC distribution

Comprehensive temperature control and monitoring system

Complete lightning protection and grounding system

Advanced battery management including low voltage protection

Temperature compensation and automatic voltage regulation

Multiple communication interfaces (RS232/RS485 and dry contacts)

Remote monitoring capability for unmanned operation

Technical Parameters

Item	Parameter	Remark
AC distribution unit	Communication on lightning protection	Grade C:20~40KA
Communication input	63A/2P*2	The limit breaking ability ICU ≥6kA, the short circuit segmenting ability Ics ≥6kA
Intelligent instrument (optional)	DDS3366P-3Type single-phase three-way electric energy meter	Can detect AC voltage, current, electrical energy, three-way input switch values, etc.
Rectifier module	RM4850*3
Monitoring unit	SM32
DC distribution unit	Battery switch	100A/1P*2
Primary Power Down	63A/1P1;32/1P2;20/1P*2
Secondary Power Down	20A/1P1;10A/1P2;	Limit breaking capacity ICU ≥6 ka and running short circuit breaking capacity ICS ≥6 ka
DC lightning protection	Grade C:10~20KA	Configuration includes lightning protection plate
150A Wall mounted power supply system	Dimensions: 700H * 350D * 580W, including temperature control system

System Operation Principles

The power system features intelligent monitoring that controls all operational parameters. During mains failure, the system automatically switches to battery power with comprehensive discharge protection. The system includes:

Parallel operation of rectifier modules with busbar-connected DC output

Load control via fuses or air switches with overload/short circuit protection

Two-stage battery protection against excessive discharge

Automatic restoration when mains power returns

Multi-level monitoring through LCD panel, local PC, and remote control room

Environmental monitoring for smoke, door status, water, temperature, and humidity

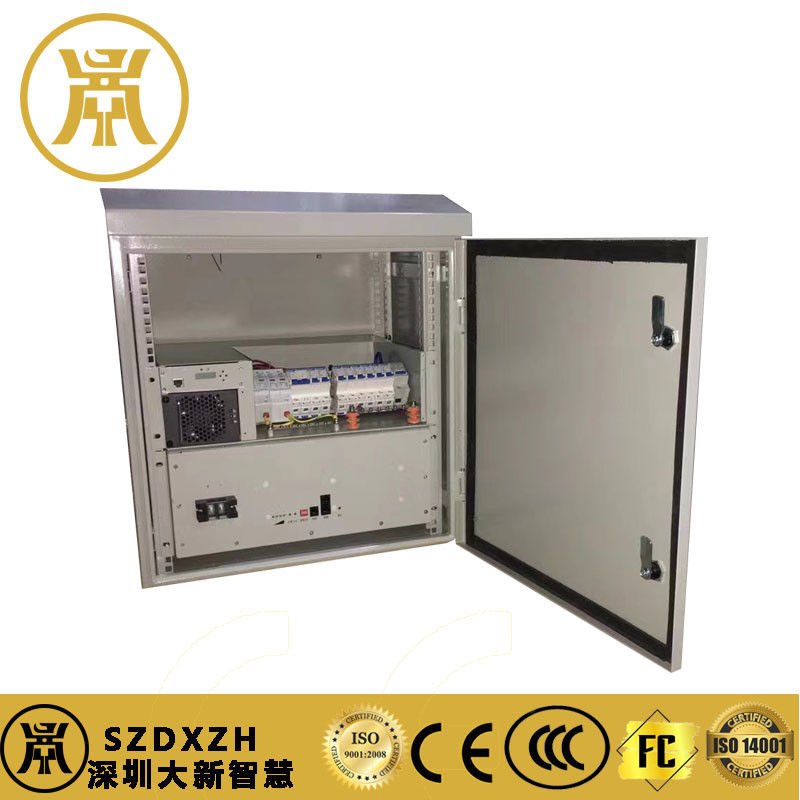

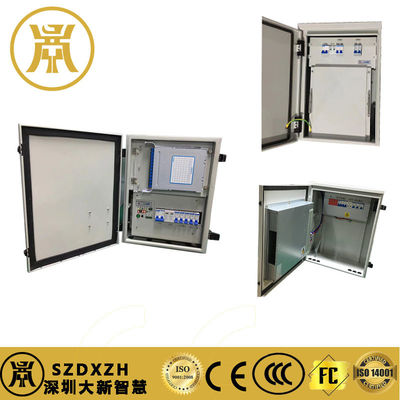

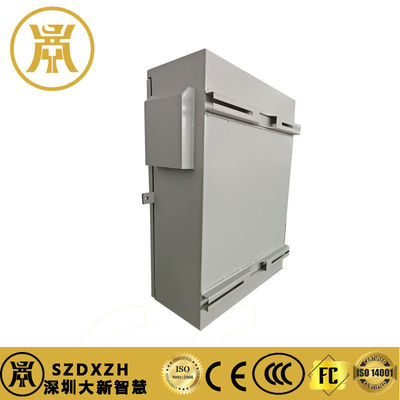

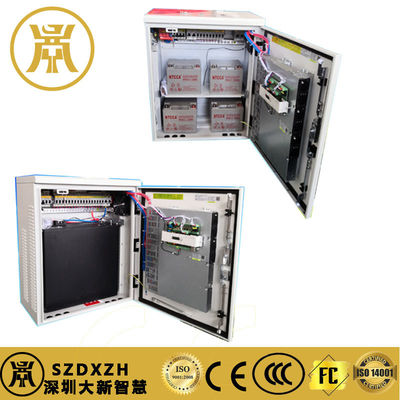

Product Images
