Brand Name: | daxin |
Model Number: | ODC-210909C2T-200AH |
MOQ: | 1 pcs |
Packaging Details: | Woodcase/ Paper box |
Payment Terms: | T/T |

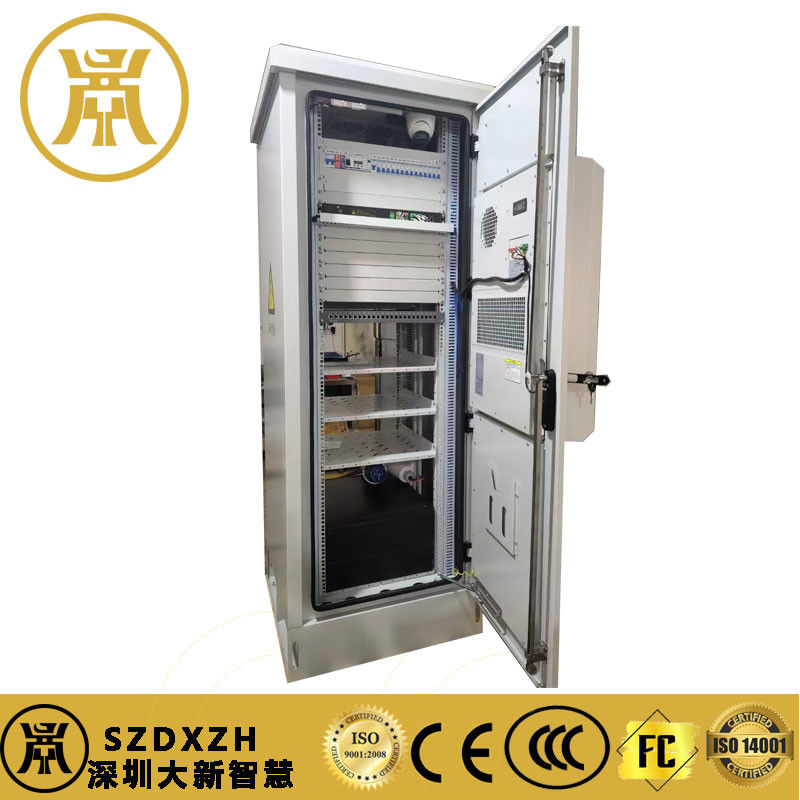

A robust outdoor telecom cabinet designed for demanding environments, featuring IP55 protection, power distribution unit, and battery integration. Ideal for telecommunications, renewable energy systems, and industrial applications.
Attribute | Value |
---|---|
Applications | Telecommunications, Transportation, Renewable Energy, Outdoor Events |
Material | 1.5mm galvanized steel |
Protection Level | IP55 |
Manufacturer | Shenzhen |
Height | 42U |
No. | Component | Specification | Details |
---|---|---|---|
1 | Outdoor Integrated Power Cabinet | 900×900×2150mm |
|
2 | Embedded Switch Power Supply 200A | ET-PS48200Z-6U | AC 220V input, DC 48V output with 330A rectifier modules |
3 | Distribution Unit | 3U | AC380V input with multiple protection circuits |
4 | Battery Option | 3U 100AH | 48V 100AH (lithium or lead-acid) |
5 | FSU | iU | Comprehensive monitoring system with web interface |
Cable Inlet: 6 top and 4 bottom entry points with easy upgrade capability
Grounding Protection: Anti-corrosion grounding copper bar with connection resistance <0.1Ω between any two points
![]() |
