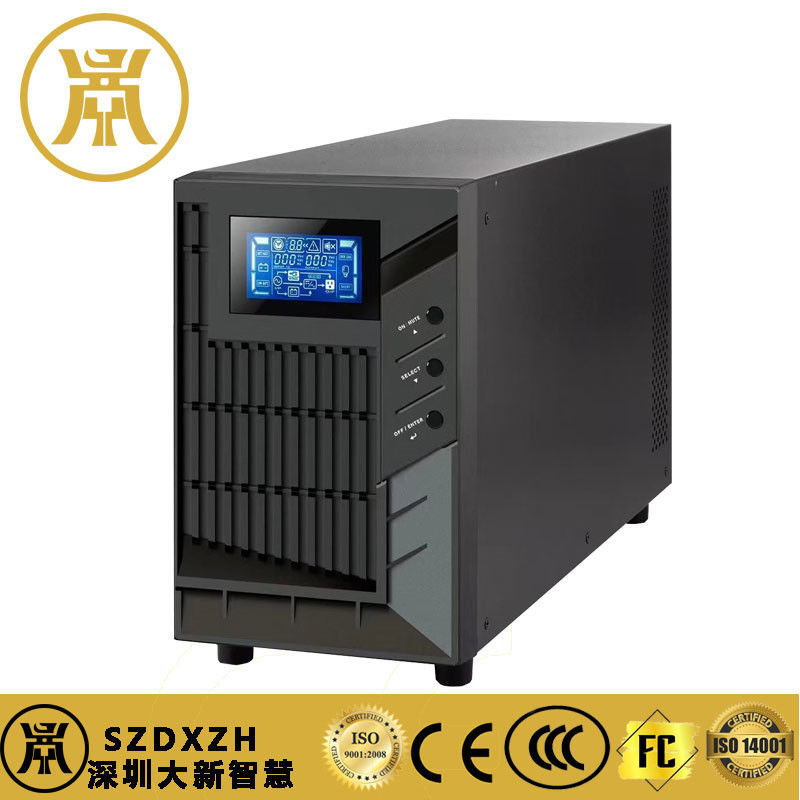

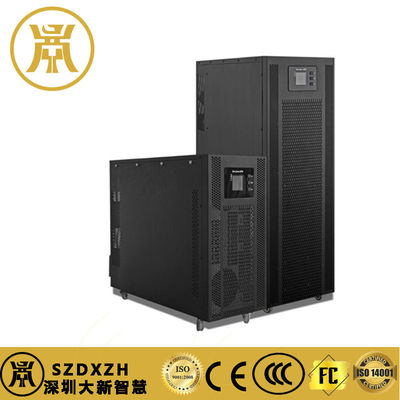

High-Frequency Tower UPS Single Input Single Output Dual Conversion Online Operation
Power Range: 1K VA
Working mode: single input and single output, double conversion online operation.
Application scope: Widely used in various industries such as government, finance, communications, education, transportation, meteorology, radio and television, industrial and commercial taxation, medical care, energy and electricity, etc.
Features:
· True online double conversion
· Microprocessor control ensures high reliability
· Input power factor correction
· Output power factor can reach 0.8
· Wide mains input range (110 V – 300 V)
· Efficient frequency conversion mode
· Generator compatible
· Optional exquisite SNMP card can be perfectly monitored alone or with USB, RS232
· Simple operation control through the display, and comprehensive display monitoring UPS status
· ECO mode provides energy saving effect
· Emergency power off (EPO)
· Models above 6K use DSP technology, built-in maintenance bypass switch (optional)
· Smart battery charging design extends battery life and performance
· Built-in isolation transformer (optional)
Technical Parameters
| model | H1K | |
| Phase | Single-phase grounding | |
| capacity | 1000 VA / 800 W | |
| enter | ||
| Voltage range | 110 -300VAC at 50% load | |
| 160 -280 VAC at 100% load | ||
| Frequency range | 40Hz ~ 70Hz | |
| Power Factor | ≧0.99 | |
| Output | ||
| Output voltage | 200/208/220/230/240VAC | |
| Voltage range (battery mode) | ± 1% | |
| Frequency range (synchronous correction range) | 47~53 Hz or 57~63 Hz | |
| Frequency range (battery mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz | |
| Surge ratio | 3:01 | |
| Harmonic distortion | ≦ 3% THD (Linear Load) | |
| ≦6% THD (non-linear load ) | ||
| Conversion time | AC to DC | 0ms |
| Inverter to Bypass | 4 ms (under standard conditions) | |
| Waveform (Battery Mode) | Pure sine wave | |
| efficiency | ||
| Mains mode | 88% | |
| Battery Mode | 83% | |
| Battery | ||
| Standard Machine | Battery Model | 12V / 9AH |
| quantity | 2 | |
| Maximum charging current | 1.0A (max) | |
| Long-acting machine | Battery Model | Depends on battery configuration |
| quantity | 3 | |
| Maximum charging current | 1A/2A/4A/6A (adjustable) | |
| Appearance | ||
| LCD or LED display | Load size, Battery capacity, AC mode, Battery mode, Bypass mode, Fault indication | |
| Dimensions | ||
| Standard Machine | Dimensions, depth x width x height (mm) | 282 X 145 X 220 |
| Net weight (kg) | 9.8 | |
| Long-lasting models | Dimensions, depth x width x height (mm) | 282 X 145 X 220 |
| Net weight (kg) | 4.1 | |
| Usage Environment | ||
| Temperature and humidity | Relative humidity 20-90% and temperature 0- 40°C (non-condensation) | |
| noise | Less than 50dBA @ 1 meter | |
| Control Management | ||
| Smart RS-232 / USB | 支持 Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC | |
| Optional SNMP | Power management supports SNMP management and network management | |
*When 1-3KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 80%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 80%. When
6/10KVA UPS is set to constant voltage and constant frequency mode, the output power will be reduced by 60%, and when the output voltage of the UPS is set to 208VAC, the output power will be reduced by 90%.
*The above commonly sold models do not support redundant parallel operation.
*200/208/220/230/240VAC is only applicable to long-term machines (200VAC is only applicable to 1-3KVA)
| MODEL | Apex 400 | Apex 600 | Apex 800 | Apex 1k | Apex 1.5k | Apex 2k | Apex 3k | |
| CAPACITY | 400VA/240W | 600VA/360W | 800VA/480W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | 3000VA/1800W | |
| INPUT | ||||||||
| Voltage | 110/120 VAC or 220/230/240 VAC | 220/230/240 VAC | ||||||
| Voltage Rangle | 81-145 VAC / 162-290 VAC | 162-290 VAC | ||||||
| Frequency Range | 60/50 Hz (Auto sensing) | |||||||
| OUTPUT | ||||||||
| Output Voltage | 110/120 VAC or 220/230/240 VAC | 220/230/240 VAC | ||||||
| AC Voltage Regulation(Batt Mode) | ± 10% | |||||||
| Frequency Range(Batt Mode) | 50 Hz or 60 Hz ± 1 Hz | |||||||
| Trensfer Time | Typical 2-6 ms | |||||||
| Waveform(Batt Mode) | Simulated Sinewave | |||||||
| BATTERY | ||||||||
| Battery Type&Nunber | 12V/4.5AH*1 | 12V/7AH*1 | 12V/9AH*1 | 12V/7AH*2 | 12V/9AH*2 | 12V/9AH*2 | 12V/10AH*2 | |
| Typical Recharge Time | 4-6 hours recover to 90% capacity | |||||||
| PROTECTION | ||||||||
| Full Protection | Overload, discharge, and overcharge protection | |||||||
| INDICATORS | ||||||||
| LCD Model | Input voltage, output voltage, battery capacity, load level and UPS status | |||||||
| LCD Model | AC Mode | Green lighting | Green lighting | Green lighting and 4 LEDs indlicating load level | ||||
| Battery Mode | Green flashing | Yellow flashing | Green lighting and 4 LEDs indlicating battery capacity | |||||
| Fauit | N/A | Red lighting | Red lighting | |||||
| ALARM | ||||||||
| Battery Mode | Sounding every 10 seconds | |||||||
| Low Battery | Sounding every second | |||||||
| Overload | Sounding every 0.5 second | |||||||
| Fault | Continuously sounding | |||||||
| PHYSICAL | ||||||||
| LCD Model | Dimension,D*W*H(mm) | 300*101*142 | 320*130*182 | 390*147*205 | ||||
| Net Weight(kgs) | 3.7 | 4.4 | 5 | 7.8 | 10.4 | 10.6 | 15.1 | |
| LCD Model | Dimension,D*W*H(mm) | 279*101*142 | 320*130*182 | 390*147*205 | ||||
| Net Weight(kgs) | 3.55 | 4.2 | 4.9 | 8.2 | 10.4 | 11 | 15.1 | |
| ENVIRONMENT | ||||||||
| Humidity | 0-90 % RH @ 0- 40°C (Non-condensing) | |||||||
| Noise Level | Less than 40dB | Less than 45dB | ||||||
| Product speciffcations are subject to change without further notice. | ||||||||
| model | DX202 | DX302 | DX402 | DX502 | DX602 |
| Rated power | 2000W | 3000W | 4000W | 5000W | 6000W |
| Peak power (MS) | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Battery input | |||||
| Nominal voltage | 12V/24DC | 24V/48VDC | 24V/48VDC | 48VDC | 48VDC |
| Charging current | 0-30A | ||||
| Charging voltage | 13.8VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Battery High voltage alarm | 15VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Low voltage alarm of battery | 10.5VDC for 12V(*2 for 24V;4 for 48VDC;8for 96V | ||||
| Battery type | Lithium battery/gel (customized) | ||||
| Communication input | |||||
| Voltage | L N+PE 110V/120V;220V/230V/240V | ||||
| Voltage range | 75-135VAC for 110V;145-265VAC for 220V | ||||
| frequency | 50/60HZ adaptive | ||||
| Communication output | |||||
| Voltage | L N+PE 110V/120V;220V/230V/240V(Can be set) | ||||
| frequency | 50/60HZ±1%(Can be set) | ||||
| Surge power | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Efficiency | 89% | 90% | 90% | 90% | 90% |
| conversion time | ≤8ms | ||||
| Output waveform | Pure sine wave | ||||
| protection | |||||
| Display | Forced air cooling | ||||
| heat dissipation method | Overvoltage protection, undervoltage protection, overload protection, surge protection, over temperature protection, short circuit protection, etc | ||||
| display | LCD+LED | ||||
| communication (optional) | RS232/RS485/APP/WIFI | ||||
| Working mode | |||||
| Priority given to mains electricity | Prioritize the use of State Grid power supply, and automatically switch to inverter (battery) mode during power outages | ||||
| Power saving mode | Automatically switch to sleep mode when no load is detected in the inverter state | ||||
| Priority given to photovoltaics | Prioritize the use of photovoltaic power generation, with complementary batteries and the power grid | ||||
| Photovoltaic input | |||||
| Maximum photovoltaic input | 12V:18-150VDC | 24V:36-150VDC | 48V:60-150VDC | ||
| Maximum charging current | MPPT 60A | ||||
| Maximum photovoltaic power | For 12V:System:750W | For 12V:System:1500W | For 12V:System:3200W | ||
| Best MPPT | For 12V:System:18-50V | For 12V:System:36-80V | For 12V:System:72-110V | ||
| Maximum working voltage | For 12V:155VDC | For 24V:155VDC | For 48V:155VDC | ||
| Open circuit | |||||
| voltage environment | 0%~95% No condensation | ||||
| relative humidity | “-10℃~40℃ | ||||
| working temperature | ”-15℃~60℃ | ||||
| Storage temperature | |||||
| Packaging size (D * W * H) mm | 630*450*290 | ||||
| Weight (kg) | 20kg | 23kg | 28kg | 32kg | 35kg |
