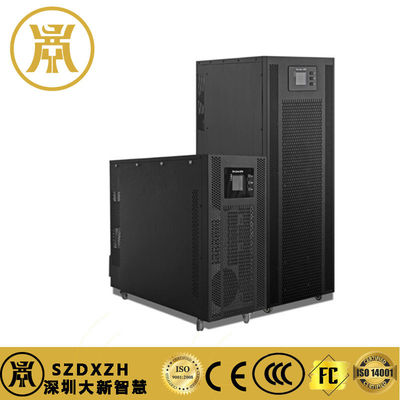

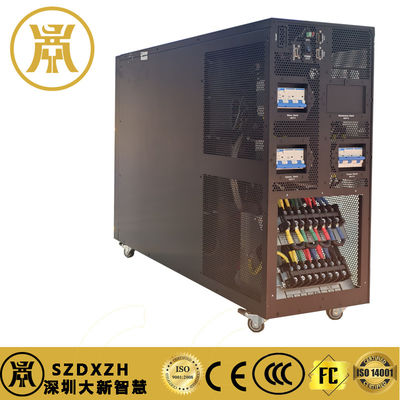

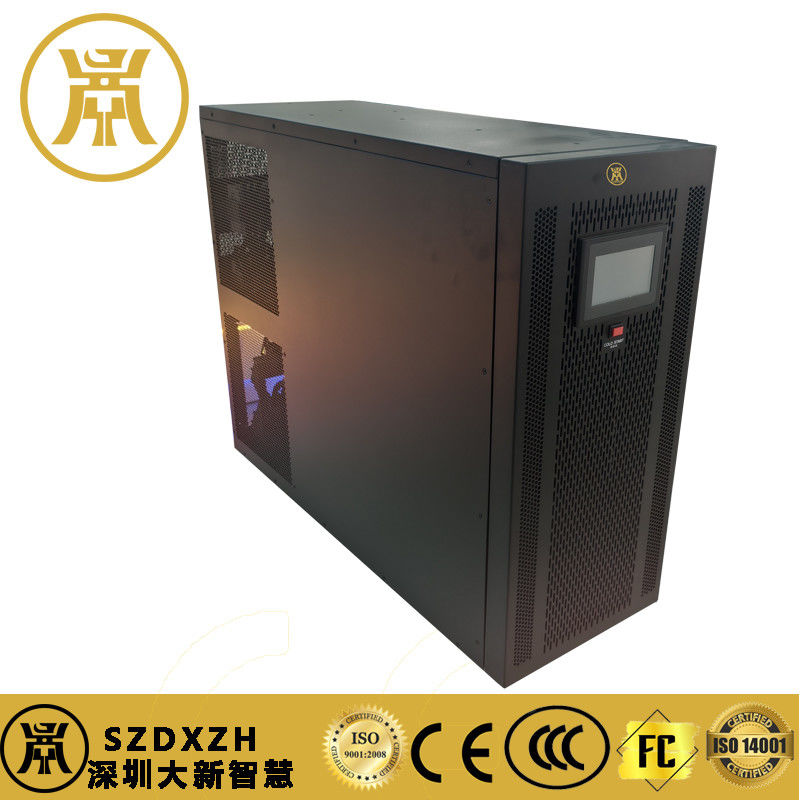

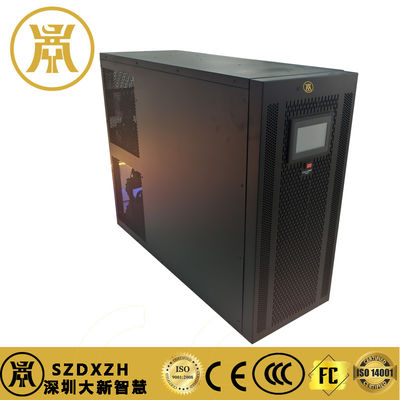

3-Phase 30KVA Load Capacity Online UPS - A Robust Power Solution for Business

Brand Name:	Daxin
Model Number:	3H30KL
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Inverter Type:

Pure Sine Wave

Backup Time:

Depends On The Battery Quantity And Load

Battery Overcharge Prevention:

Configurable Battery Systems:

16-20 Cells

Size(mm):

815 X 300 X 1000(D*W*H)

Parallel Capacity:

Max 3 Units

Transfer Time:

Supply Ability:

8000pcs/month

Highlight:

10kVA Uninterruptible Power Supply

Double Conversion Uninterruptible Power Supply

10kVA Ups High Frequency

Product Description

3-Phase 30KVA Load Capacity Online UPS - A Robust Power Solution for Business

Key Specifications

Inverter Type	Pure Sine Wave
Backup Time	Depends on battery quantity and load
Battery overcharge prevention	Yes
Configurable battery systems	16-20 cells
Size (mm)	815 × 300 × 1000 (D×W×H)
Parallel Capacity	Max 3 units
Transfer time	0 ms

Industrial-Grade Power Protection

In the fast-paced business world, a reliable power supply is the cornerstone of uninterrupted operations. Our 3H30KL UPS is designed to meet the diverse power needs of businesses, offering high reliability, comprehensive protection, and advanced management features.

Technical Specifications

Category	Specification	Notes
Basic Information	Model: 3H30KL Capacity: 30kVA/24kW	Industrial-grade UPS Double conversion topology
Input Characteristics	Voltage Range: 190-520VAC (3Φ) @50% load 305-478VAC (3Φ) @100% load Frequency Range: 46-54Hz (50Hz system) 56-64Hz (60Hz system) Phase: 3Φ+G Power Factor: ≥0.99 @100% load	Wide input window Generator compatible IEC 60309 standard Active PFC
Output Characteristics	Configuration: 1Φ+N+G Voltage: 208/220/230/240VAC Regulation: ±1% Frequency Stability: ±0.1Hz (battery mode) Overload Capacity: 110%:10min, 130%:1min (>130%:1s) THD: ≤2% (linear), ≤5% (non-linear)	User-selectable Static accuracy Crystal oscillator reference Mains mode EN 62040-3 Class 1
Conversion Parameters	Topology: True online double conversion Switching Time: 0ms Waveform: Pure sine wave Inverter Technology: IGBT with DSP control	Seamless transition IEEE 587 compliant Space vector modulation
Energy Storage	Configuration: 16-20 cells (configurable) Charging Current: 12A±10% maximum Charging Voltage: 273VDC±1% (20-cell)	VRLA/Li-ion compatible Temperature-compensated
Environmental	Operating Temperature: 0-40°C Humidity: 0-95% non-condensing Acoustic Noise: <65dB @1m Dimensions: 815×300×1000mm Weight: 64kg (base unit)	Derate above 25°C IP42 protection EN 62040-2 compliant Rack-mountable option

High-Reliability Design

True online double conversion for stable, clean power
Generator compatible (requires generator capacity twice UPS rating)
Optional output isolation transformer (factory-installed)
Standard EPO (Emergency Power Off device)
MCU + DSP chip control for high-precision operation
Supports parallel operation (max 3 units)
Configurable battery systems (16-20 cells)
Adjustable charging current (1-4A per charging board)
Available in PF0.8 and PF0.9 models
Automatic startup when power is restored

Comprehensive Protection

Output overload and short-circuit protection
Inverter over-temperature protection
Battery under-voltage warning and over-charging protection
Optional manual maintenance bypass for seamless transfer

Advanced Monitoring & Management

LCD display for real-time status monitoring
Standard RS-232/RS-485 and USB interfaces
Optional SNMP v3 and Modbus TCP protocols
Cross-platform software support (Windows/Linux/Unix/MacOS)

Invest in the 3H30KL UPS to ensure your business operations are powered by a reliable and efficient power solution. Contact us today to learn more about how this UPS can meet your specific business needs.
