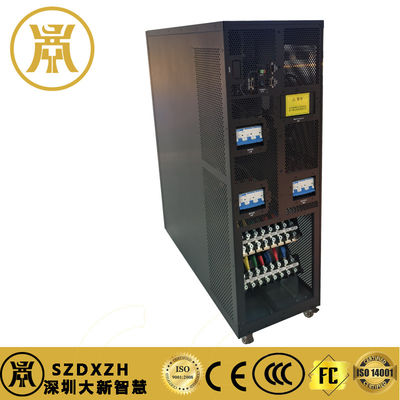

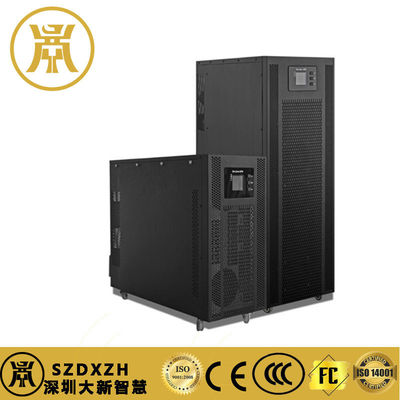

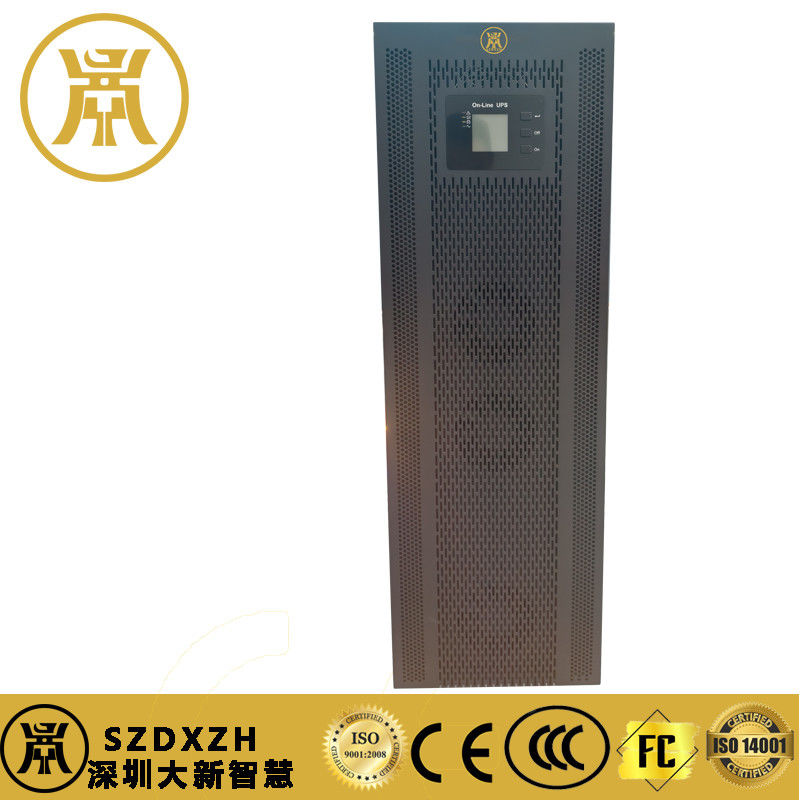

Industrial-Grade 30KVA Online UPS System – Premium Power Protection for Critical Infrastructure

Brand Name:	Daxin
Model Number:	EX 3C3 30K
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

RS-232 Interface:

Load Capacity:

30KVA/24KW

Size(D*W*H):

815x300x1000mm

Transfer Time:

Efficiency:

> 94.5%

Support External Battery:

Supply Ability:

6000pcs/month

Highlight:

30KVA Online UPS System

Industrial-Grade Online UPS System

Product Description

Industrial-Grade 30KVA Online UPS System – Premium Power Protection for Critical Infrastructure

Key Features

True Online Double-Conversion Technology with Pure Sine Wave Output
Advanced Frequency Synchronization (±1Hz/S)
Wide Input Voltage Range (285VAC–475VAC)
Enterprise-Class Power Conditioning with Active PFC (Power Factor ≈1)
Low THD (<2% linear, <5% nonlinear) compliant with IEEE 519 standards
3:1 Crest Factor for high inrush current loads
Multi-Layer Protection including short-circuit/overload protection (up to 160% load)
Static Bypass Switch with 0ms transfer time
Maintenance Bypass for servicing without power interruption

Technical Specifications

Attribute	Value
Model	EX 3C3 30K
Capacity	30KVA / 24KW
Input Voltage Range	285–475VAC (3Ph+N)
Input Frequency Range	50/60Hz ±10%
Output Voltage Stability	±1% (steady state), ±5% (transient)
THD	<2% (linear), <5% (nonlinear)
Overload Capacity	150% for 1min, 160% for 200ms
Efficiency	94% (online), 93.5% (battery)
Battery	32–40 cells (12V sealed lead-acid)
Dimensions	815×300×1010mm (61kg)
RS-232 interface	Yes
Transfer time	0 ms
Support External Battery	Yes

Key Applications

Data Centers – Protects servers and network gear from power anomalies

Industrial Automation – Ensures continuous operation of PLCs and CNC machines

Medical Facilities – Safeguards MRI/CT scanners and life-support systems

Telecom Infrastructure – Base station backup with wide voltage tolerance

Monitoring & Control

Real-Time LCD Display showing UPS status, load metrics, and battery health
Remote Management via RS232/RS485 + SNMP support
Compatible with Windows®, Linux, and macOS
Optional Battery Monitoring for individual cell failure detection

Durability Features

Military-grade surge protection
"Three-proof" coating (dust/humidity/corrosion resistance)
-40°C to +70°C storage tolerance

Support & Services

Our technical support team provides comprehensive assistance for installation, configuration, and maintenance. We offer:

Regular maintenance and inspections
Remote monitoring and diagnostics
24/7 emergency support
Training and certification programs

Custom configurations available for high-density battery backups. Upgrade to enterprise power reliability today.
