3 Compartments Energy Battery Storage Cabinet For Outdoor Power Station with Cooling

Brand Name:	Daxin
Model Number:	ODC-219018CF2P-001
MOQ:	1 pc
Packaging Details:	Wooden case with pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

User Space:

42U+18U, 2 Battery Racks

Applications:

Telecom, Transportation, Renewable Energy, Outdoor Events

Coating:

Anti-corrosion Outdoor Powder Coating

Cooling:

1500W 220VAC *2 & 500W 48VDC*1

Layout:

3 Compartments

Material:

1.5mm Galvanized Steel

Supply Ability:

5,000pcs/month

Highlight:

High Capacity Energy Battery Storage Cabinet

2 Compartments Battery Storage Cabinet

CE Certified Battery Storage Locker

Product Description

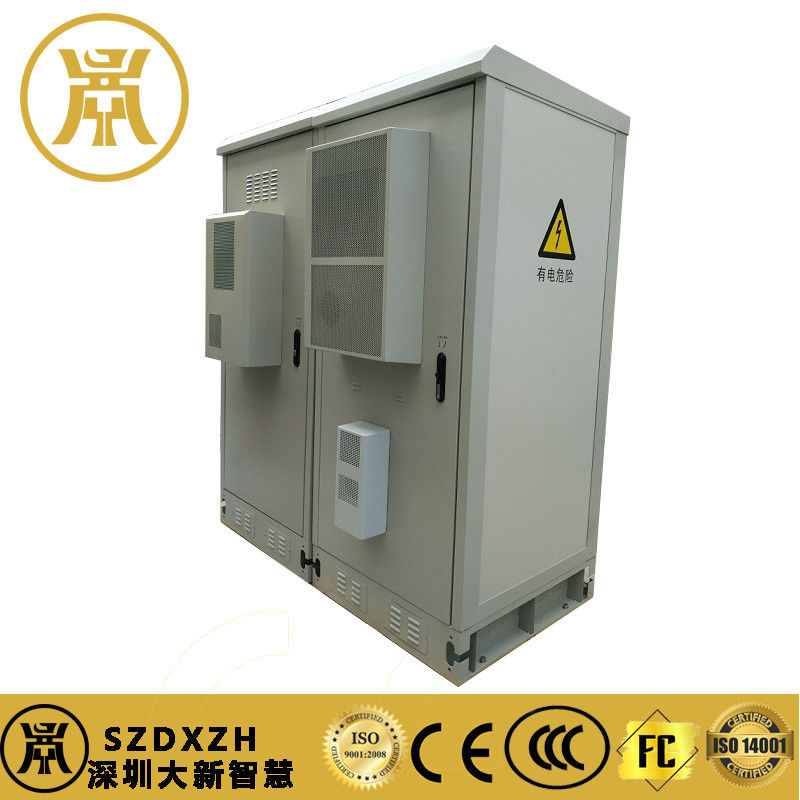

3 Compartments Energy Battery Storage Cabinet For Outdoor Power Station with Cooling

Product Overview

This modular outdoor solution integrates power distribution, battery storage, thermal management, and intelligent monitoring. Ideal for telecom base stations, solar energy storage, and industrial applications.

Technical Specifications

Attribute	Value
User Space	42U+18U, 2 battery racks
Applications	Telecom, Transportation, Renewable Energy, Outdoor Events
Coating	Anti-corrosion Outdoor Powder Coating
Cooling	1500W 220VAC 2 & 500W 48VDC1
Layout	3 Compartments
Material	1.5mm galvanized steel

Detailed Specifications

Item	Parameter	Specification
1	Dimensions (External)	900mm (W) * 1800mm (D) * 2100mm (H)
2	Internal Rack Space	42U (Left) + 18U (Right) 19-inch standard racks; Supports 2x12V 150Ah lead-acid batteries
3	Material	1.5mm galvanized steel + 45mm EPS/PU insulation core (0.472W//m² K thermal conductivity)
4	Protection Rating	IP55 (dust/water resistance), optional IP65
5	Security	3-point mechanical lock + anti-theft hinges; Tamper-proof warning labels
6	Cooling System	AC 1500W door-mounted air conditioner (optional DC 300W) + 120mm ventilation fans
7	Power Configuration	3*50A rectifier modules + 63A AC input/32A output circuit breakers

Core Features

Robust Structure: Double-layer galvanized steel with 45mm insulation for extreme weather resistance (-40°C to +55°C). Reinforced base (150mm height, 2.0mm thickness) and cable entry ports (Φ50×4).
Flexible Power Management: Supports 48V DC output (300W-500A capacity) and AC/DC hybrid configurations. Integrated surge protection (20-40kA) and battery charging management.
Intelligent Monitoring: Door sensor with LED lighting (18W, auto-activated upon access) + remote alarm triggers. Optional environmental monitoring (temperature/humidity/smoke detection).

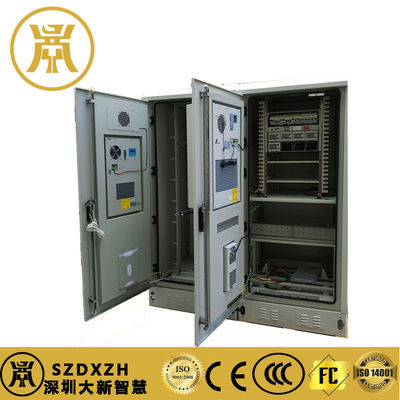

Easy Maintenance: Front-opening design (110° door angle) with tool-free access to 19-inch racks. Modular components (e.g., replaceable fans, removable battery trays).

Optional Accessories

Thermal Control: Choose between AC/DC air conditioners or forced ventilation.
Battery Expansion: Supports up to 4×150Ah lithium/lead-acid batteries (non-ferrous).
Surge Protection: Upgradable to 40kA DC surge arrestors.

Compliance & Certifications

Meets IEC 62477-1 (safety), IP55 (ingress protection), and 8-level seismic resistance. RAL7035 gray-white coating with UV resistance (10+ years outdoor durability).

Customization Available: Dimensions, power capacity, and communication protocols (RS485/Modbus) tailored to project needs.
