| Brand Name: | daxin |
| Model Number: | DAXIN-90902195-22U |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T, MoneyGram, Western Union |
22U Ip55 Outdoor Telecom Cabinet Used For Telecommunications Base Stations With Battery
Quick Details:
IP55 Outdoor Telecom Cabinet Technical Parameters:
| Model | DAXIN-90902195-22U |
| Product Name |
Outdoor Telecom Cabinet |
| Manufacturer | Shenzhen Daxin |
| Cabinet Dimension | W900mm*D900mm*H2195mm |
| IP Level | IP54/IP55/IP65 |
| Material | 1.5mm galvanized steel, single wall |
| Mounting Way | Floor mount |
| Cabinet Lock | Anti-theft Three Point Lock |
| Access | Door sensor |
| 19 inch rack | 22U for house equipments |
| Battery Shelf | Two shelves |
| Cooling | 1500W AC airconditioner |
| Heat Exchanger | 120WK heat exchanger |
| Fan | 2 fans |
| Color | RAL7035 |
| Surface finish | Outdoor Powder Coating |
| Orther accessory | Vertiv Rectifier system 400A |
| LED light | |
| Temperature sensor |
1500w AC Air Conditioner Parameter
| Item | Name | Unit | Parameter |
|---|---|---|---|
| Dimension and installation |
Body outline dimension (height*width* depth ) |
mm | 750*450*200 |
| Outline dimension including flange(height*width* depth ) |
mm | 784*484*200 | |
| Weight | Kg | 24 | |
| Installation method | Embedding slightly | ||
| Installation method | Outdoor | ||
| Environment and protection |
Working environment temperature | ℃ | -40 to +55 |
| Noise | dB(A) | 65 | |
| Life expectancy | Years | >10 | |
| IP grade | IP55 | ||
| Refrigerant | R134a | ||
| ROHS certification | yes | ||
| Performance | Input voltage range | 220±15%VAC~50Hz | |
| Refrigerating capacity(L35/L35) | W | 1500 | |
| Rated Refrigerating input power(L35/L35) |
W | 580 | |
| Rated Refrigerating current (L35/L35) | A | 2.6 | |
| Maximum Refrigerating current | A | 4.6 | |
| Heat capacity (optional) | W | 1000 | |
| Air Volume of Inner Circulation | m3/h | 370 | |
About Daxin Outdoor Telecom Cabinet
DAXIN outdoor telecom cabinet which can protect customer’s equipment’s from damage and extreme weather conditions, vandal ism, dust, rain, snow and dripping water. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment, transmission equipment, power equipment, monitoring equipment, lithium batteries and other supporting equipment. Both active telecom equipment and passive telecom equipment can be accommodated inside the cabinet. Cabinets are available with integrated thermal management using air conditioner to control internal temperatures to protect sensitive equipment.
DAXIN offers IP55/IP66 rated floor standing equipment Cabinets. Cabinet sizes are Customizable ranging from 9U internal space to 46U special height sizes. External size is 650x650mm with a base of 150mm or 200mm. The cabinet is made with 1.5mm – 2.0mm Galvanized steel with 20mm thermal insulation. The cabinet has a 200mm base + side panel, a hinged door with a lock. The rear door is filled with air conditioning. Cabinet is equipped with 1 sets of 19” rack for equipment mounting and 2 battery shelves.
Air condition units can be configure depends on the size of cabinet and heat load requirement, cooling capacity range from 300Watts to 3000Watts. All Cabinets are constructed of Strong anti-theft ability, embedded door, inner hinge three-point lock, supporting additional pad lock.
Daxin Support and Services:
Our Outdoor Telecom Cabinets are designed to withstand harsh environments and provide reliable protection for your telecommunications equipment. Our technical support team is available to assist with any product-related questions or issues you may encounter.
We also offer a range of services to ensure that your cabinets are properly installed and maintained, including site surveys, installation support, and preventative maintenance programs. Our team of experienced technicians will work with you to develop a customized solution that meets your specific needs and requirements.
Additionally, we offer training programs to help your staff understand the capabilities and features of our cabinets, as well as best practices for maintenance and troubleshooting.

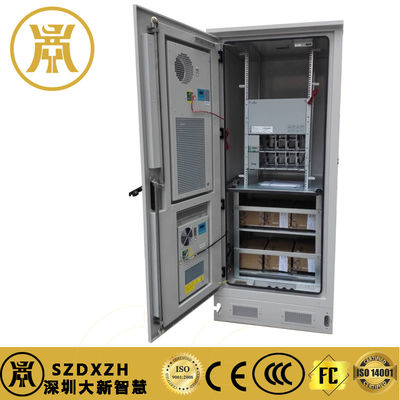

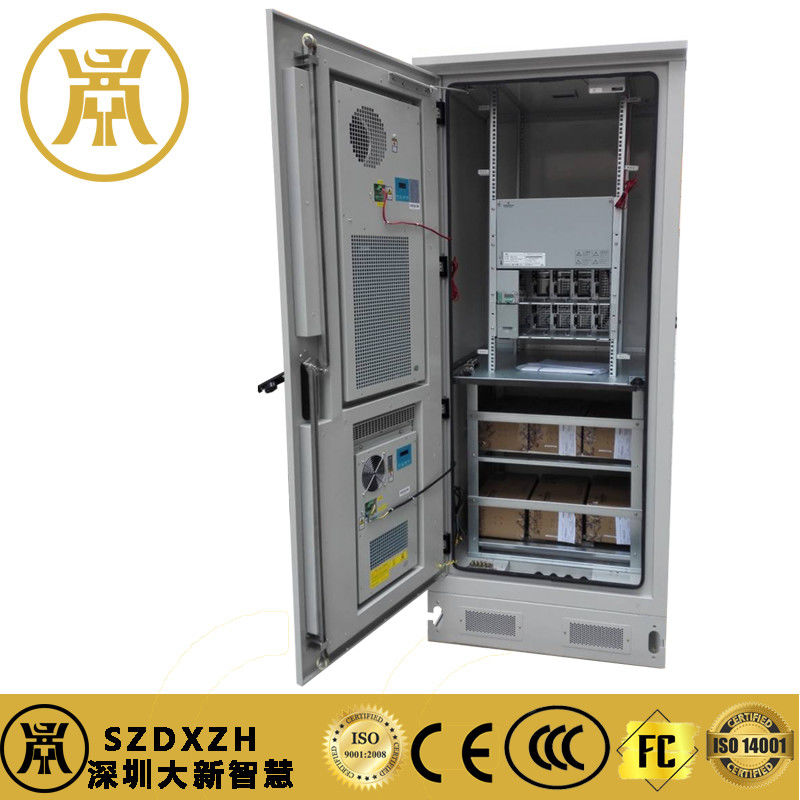

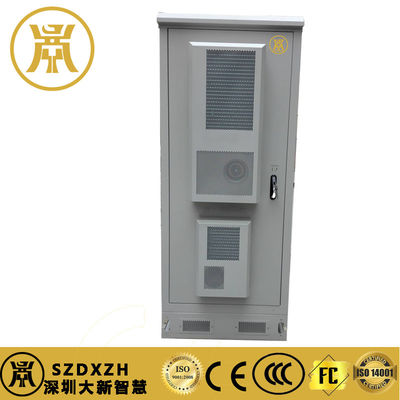

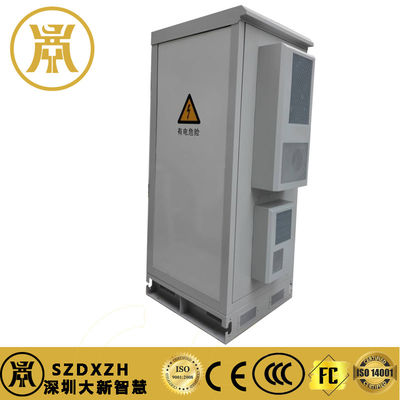

Product Pictures:
Packing and Shipping:
The outdoor telecom cabinet will be packaged in a sturdy cardboard box with protective foam padding to ensure safe transportation.
The cabinet components will be securely wrapped and separated to avoid any damage during transit.
The outdoor telecom cabinet will be shipped via a reputable courier service and will require a signature upon delivery. Shipping costs will be calculated based on the destination and weight of the package. Estimated delivery times will be provided upon checkout and may vary depending on the location.
Q1: What is the brand name of this Outdoor Telecom Cabinet?
A1: The brand name of this Outdoor Telecom Cabinet is daxin.
Q2: What is the model number of this Outdoor Telecom Cabinet?
A2: The model number of this Outdoor Telecom Cabinet is DAXIN-90902195-22U
Q3: Is this Outdoor Telecom Cabinet CE certified?
A3: Yes, this Outdoor Telecom Cabinet is CE certified.
Q4: Where is this Outdoor Telecom Cabinet made?
A4: This Outdoor Telecom Cabinet is made in SHENZHEN.
Q5: Do you accept customized deaign?
A5: Yes, we do customized product based on client's requirments
About Our factory:
|
