| Brand Name: | daxin |
| Model Number: | DX-9090200 |
| MOQ: | 1pcs |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
| Attribute | Value |
|---|---|
| Product Name | Outdoor Equipment Cabinets |
| Model | ETDX-9090200 |
| External Dimension | W×D×H 900x900x2100 |
| Heat insulation | 20mm PEF insulation |
| Protection level | IP55 / IP65 |
| Material | Galvanized steel 1.2mm |
| Color | RAL7035 GREY, Customer Request |
| Cooling | 500W air conditioner |
| Application | Telecommunication, base station, Outdoor Electronic Equipment |
| Description | Specification |
|---|---|
| Specification of cabinet | |
| 1. Model | ETDX-9090200 |
| 2. Cabinet Dimension | W×D×H 900×900×2000mm |

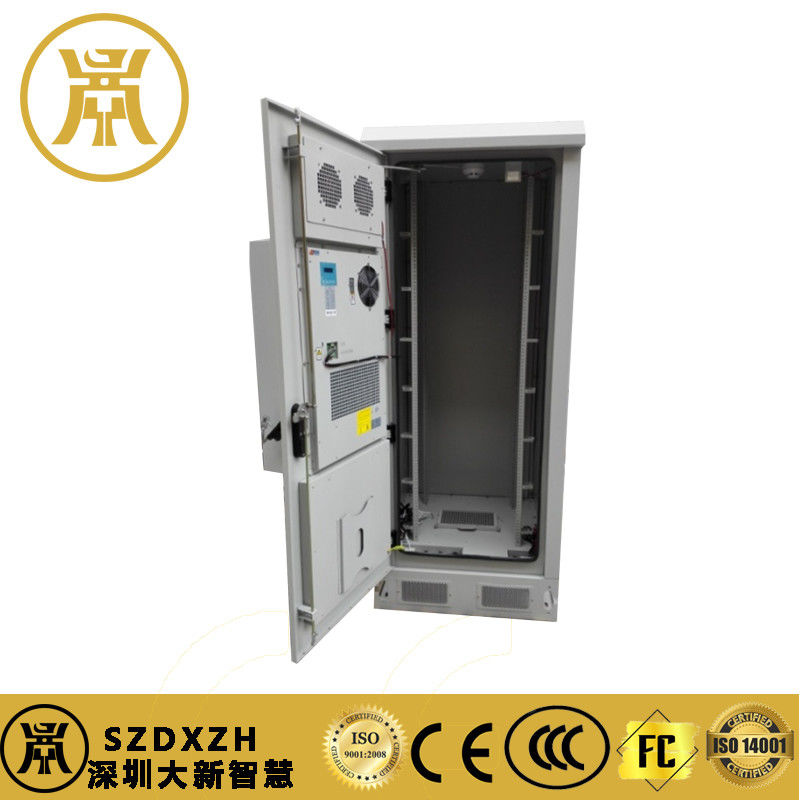

| 3. Available User Space | 40U standard 19" rack |
| 4. Door | One front door |
| 5. Lock | Outdoor special anti-theft three point locking |
| 6. Material | Galvanized steel, single wall with heat insulation |
| 7. Cabinet Installation method | Floor mount |
| 8. Cable Entry | Located on the bottom |
| 9. Lifting | 4 ears on the cabinet base |
| 10. Earthing | Grounding copper bar |
| 11. Working Temperature | -40°C～+75°C |
| 12. Protection Level | IP55 |
| 13. Relative Humidity | 5% ~ 100% |
| 14. Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15. Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Other accessories | |
| 1. Cooling | Cooling capacity: 500W, Power supply: AC220V, 50Hz |
| 2. LED light | AC220V 50Hz, with LED lamp switch |
| Packing | |
| Wooden case | W×D×H 970×1190×2170mm |
The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Mainly used for wireless communication base stations, including a new generation of 5G systems, integrated communications/network services, access/transmission exchange stations, emergency communications/transmissions, etc.

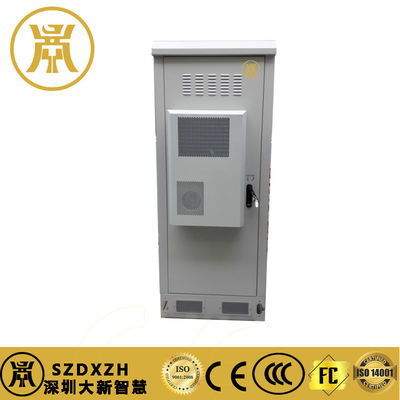

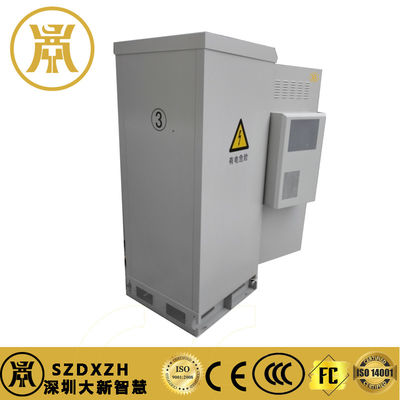

This outdoor telecom cabinet is 40U equipment cabinet with high cooling capacity 500W air conditioner. Suitable for high temperature area. It can provide a stable working environment for telecom equipments. It is usually used in outdoor communication base station. The material use high quality powder coated galvanized steel.
