3u Racked Mounted 200A Telecom Power System 48v Switching Power Supply

Brand Name:	daxin
Model Number:	DX-48200A
MOQ:	10 units
Packaging Details:	Wooden pallet+cardboard box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

shenzhen

Certification:

CE,UL

Document:

Efficiency:

Height:

Capacity:

50A-600A

Power Supply:

Single Phase 220Vac

Product Name:

Telecom Rectifier System

Install:

19 Inch Rack

Output Voltage:

DC48V

Supply Ability:

10000pcs/month

Highlight:

48v Telecom Power System

3u Telecom Power System

200A Telecom Power System

Product Description

3U Rack Mounted 200A Telecom Power System 48V Switching Power Supply

Product Overview

A high-efficiency 48V telecom power system designed for rack-mounted installation in telecommunications and data center applications. This 3U system delivers reliable power with advanced protection features and modular design.

Key Specifications

Model: DX-48200A

Efficiency: ≥91%

Height: 3U

Capacity Range: 50A-600A

Power Supply: Single phase 220Vac

Installation: 19 inch rack

Output Voltage: DC48V

Technical Parameters

System Specifications
Dimensions (mm)	482.6(W) × 350.6(D) × 3U(H)
Weight	≤ 15kg (without rectifier module)
Cooling Mode	Forced air cooling
Installation Mode	19-inch rack or cabinet installation
IP Grade	IP20
AC Distribution
Input Voltage	Single phase 220Vac
Input Capacity	1×125A/4P
Input Frequency	45~65Hz, rated 50/60Hz
AC SPD	20kA/40kA, 8/20μs
DC Distribution
Output Voltage	-42~-58VDC, rated value: -53.5VDC
Maximum Capacity	16kW (4×4000W rectifier module)
Battery Breakers	Customized
Load Breakers	LLVDBLVD
DC SPD	10kA/20kA, 8/20μs (designed inside)
Rectifier Module
Input Voltage	90VAC-300VAC, rated value: 220VAC
Efficiency	≥95%
Rated Power	4000W (176～300VAC)
Dimensions	106mm(W) × 218mm(D) × 83.8mm(1U/H)
Cooling Mode	Fan cooling

Key Features

Stable 48V output voltage for telecom and data center applications

High current capacity up to 50A for power-demanding applications

Consistent voltage regulation under varying load conditions

High efficiency design (≥91%) minimizing energy losses

Advanced thermal management with forced air cooling

Comprehensive protection: short-circuit, over-voltage, over-temperature

Modular design for easy system integration and expansion

Compact 3U form factor for space-efficient installation

Applications

Telecommunications equipment and network infrastructure

Data center servers and storage systems

Renewable energy systems and solar power inverters

Electric vehicle charging stations and battery management

Industrial automation and machinery power systems

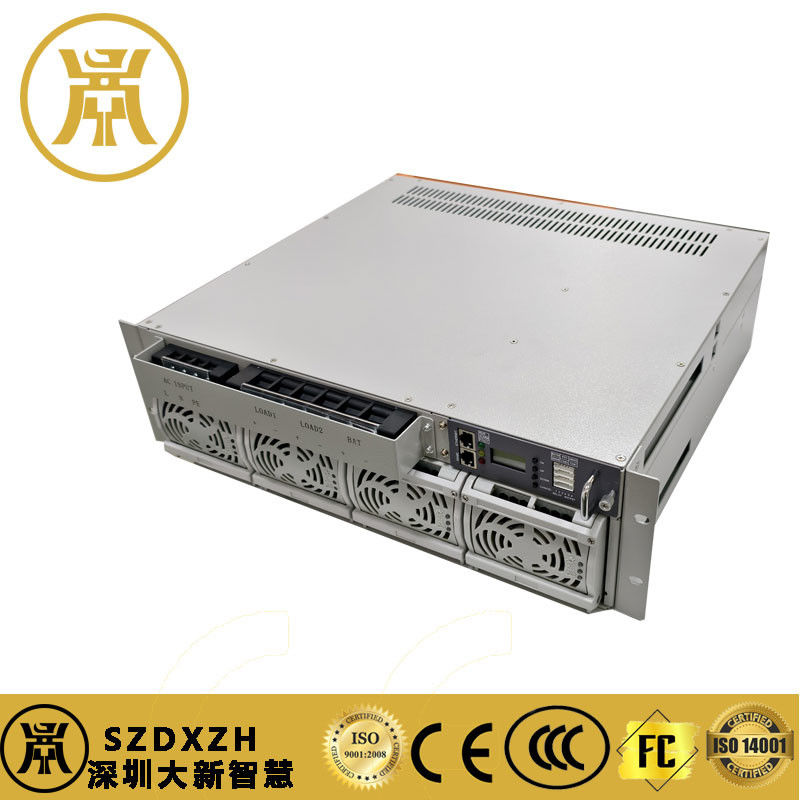

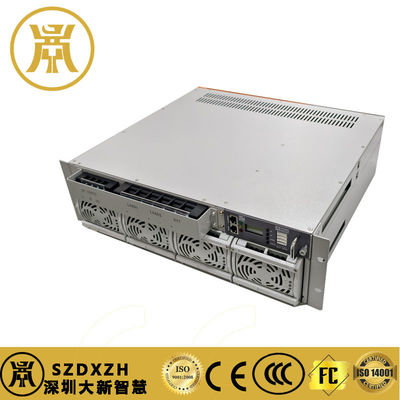

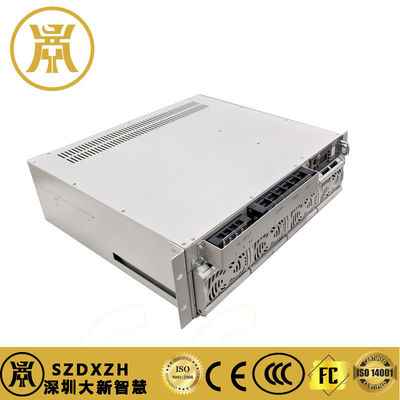

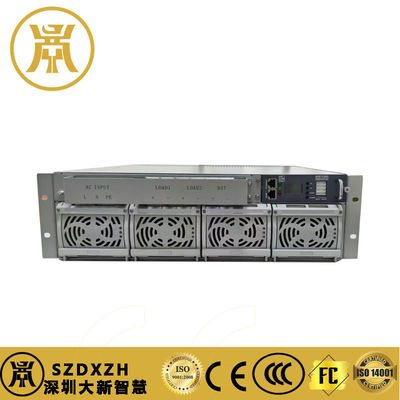

Product Images
