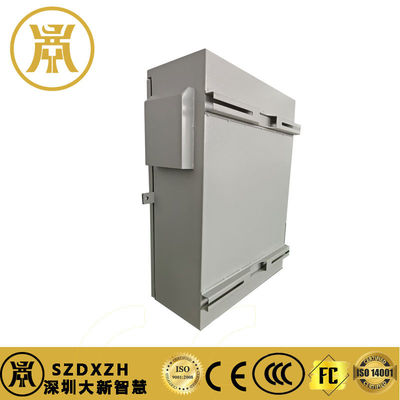

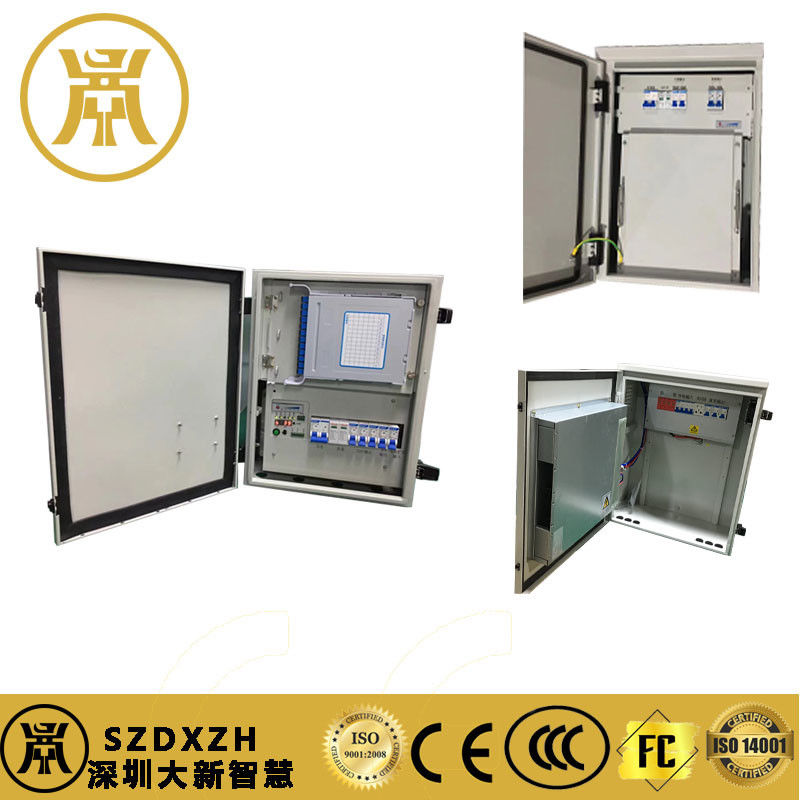

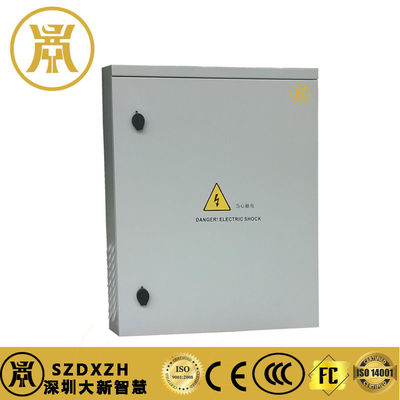

Customized design Pole Mount Cabinet with Battery PDU and power distribution
Quick Details:
Pole Mount Outdoor Telecom Cabinet Technical Parameters:
| Model | DAXIN-7058350 |
| Product Name |
Outdoor Telecom Cabinet |
| Manufacturer | Shenzhen Daxin |
| Cabinet Dimension | W700mm*D580mm*H350mm |
| IP Level | IP54/IP55/IP65 |
| Material | 1.5mm galvanized steel, single wall |
| Mounting Way | Pole mount |
| Cabinet Lock | Round Lock |
| Access | Door sensor |
| Battery Shelf | Two shelves |
| Fan | 1 fans on the top |
| Color | RAL7035 |
| Surface finish | Outdoor Powder Coating |
| Orther accessory | Battery |
| UPS | |
| PDU | |
| Fan |
Cabinet Environmental Parameter
| Environmental parameters | Environmental conditions for use | Transportation environmental conditions | Storage environmental conditions | conform to | notes | |||
| type | parameter | unit | Relevant standards | |||||
| Weather | external temperature | low temperature | ℃ | -40 | -40 | -25 | YD/T1058-2000中 | "-40℃ Can start at full load, |
| high temperature | ℃ | 45 | 70 | 55 | 4.1.1and4.1.2 | "+55~+65℃Linear derating20%. | ||
| temperature variation | ℃/min | / | 1 | / | ETS300019-2-2T2.3 | |||
| humidity | relative humidity | % | 5-90 | 90(40±2℃) | / | YD/T1058-2000中4.1.3 | Short term testing requirements: 0-95%, maximum value of 95%, non condensing | |
| air pressure | low pressure | Kpa | 86 | 70 | 70 | YD/T1058-2000中4.1.4 | Only apply to modules | |
| high atmospheric pressure | Kpa | 106 | 106 | 106 | ||||
| altitude | m | ≤4000 | When the altitude exceeds 2000m, for every 100m increase, the temperature decreases by 0.5 ℃ | |||||
Electrical characteristics
| 1 Input characteristics | |||||
| Serial Number | project | technical requirement | unit | notes | |
| 1.1 | Input Voltage | 90—300 | Vac | 176-300Vac full load output, 90-175Vac reduced load output | |
| 1.2 | Input maximum current | 57 | A | ||
| 1.3 | Input Rated Voltage | 220 | Vac | Phase voltage | |
| 1.4 | Input voltage frequency | 47—63(The typical value is50/60) | Hz | ||
| 1.5 | Input power factor | ≥0.99 | Full load working state | ||
| 2 output characteristic | |||||
| Serial Number | project | technical requirement | Unit | notes | |
| 2.1 | Output rated voltage | -54 | Vdc | IN220Vac | |
| 2.2 | Output voltage range | -42— -58 | Vdc | Adjustable through monitoring (test condition: no load) | |
| 2.3 | Output rated current | 150 | A | ||
| 2.4 | Output Rating Power | 8.7 | KW | ||
| 2.5 | Output ripple and noise | ≤200 | mVp-p | The oscilloscope bandwidth should be20MHz, | |
| Probe parallel with 10u+104 capacitor | |||||
| 2.6 | Startup output delay | 3—8 | S | IN 220Vac, | |
| 2.7 | Voltage stabilization accuracy | ≤±1% | |||
| 2.8 | Noise index | Broadband clutter | ≤100 | mV | 3.4—150 KHz |
| Sound voltage | ≤30 | mV | 150—30 MHz | ||
| Telephone balance weight | ≤2 | mV | |||
| noise voltage | |||||
| 2.9 | dynamics | overshoot amplitude | △V:≤5 | %Vo | 25%—50%—25% |
| in response to | recovery time | △t:≤500 | µS | 50%—75%—50%load change | |
| 2.1 | Unequal current distribution | ≤5% | Module parallel 50% -100% rated output | ||
| (Functional modules can work in parallel) | |||||
| 2.11 | temperature coefficient | ±0.02 | %/℃ | ||
| 2.12 | output efficiency | ≥95% | 220Vac/Rated load (typical value), high-efficiency module | ||
| ≥92% | 220Vac/Rated load (typical value), universal module | ||||
| ≥87% | 110VAC/rated load | ||||
