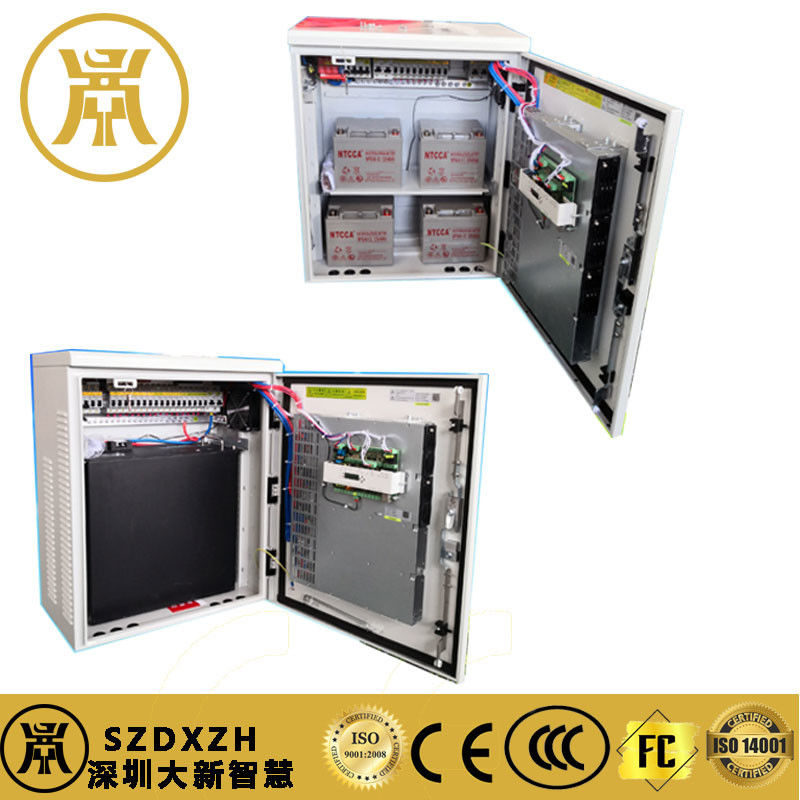

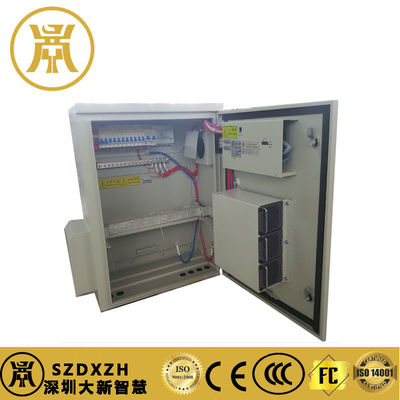

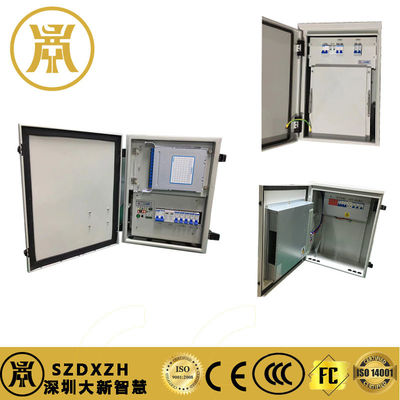

Pole Mount Power Distribution Cabinet With UPS Battery And Monirtory Unit
Quick Details:
The UPS series indoor and outdoor wall mounted power system consists of one E-series communication dedicated UPS power module or one N-series communication dedicated inverter power module, with an output power of 500VA~3000VA optional. The system can be wall mounted indoors or outdoors, and forms an uninterrupted power supply system with the battery.
■ With unmanned operation function, it is more suitable for places with few guards such as base stations and mountaintops
Equipped with a high current charging and management system, it can adapt to managing lithium iron phosphate batteries or ordinary lead-acid batteries
Fully adopting DSP digital control technology, the product is more stable and the quality is superior
■ Working range of AC input voltage: 172-268Vac
Adopting active power factor correction, the power factor can reach up to 0.98
DC input overvoltage and undervoltage protection
The load power factor is 0.8, with stronger carrying capacity
The system operates within a wide temperature range of -15 ℃ to+55 ℃
■ Wide input voltage frequency range, able to work normally even in remote areas with extremely harsh power environments, reducing battery discharge times and improving battery life
Dual transformation online working mode, zero switching, effectively ensures the safety and reliability of load operation
■ Comprehensive remote monitoring function, providing standard RS232 interface, RS485 interface and optional network monitoring card, dry contacts can also be selected,
Protection level: IP54 for outdoor use and IP20 for indoor use
Pole Mount Outdoor Telecom Cabinet Technical Parameters:
| Model | AAM500-12V | AAM500-24V | AAM1K-24V | AAM1K-48V | AAM2K-48V | AAM3K-48V |
| nameplate capacity | 500VA/400W | 1KVA/800W | 2KVA/1.6KW | 3KVA/2.4KW | ||
| AC input | Rated voltage 220VAC, input harmonic 3% | |||||
| DC input | Rating12V | Rating24V | Rating24V | Rating48V | Rating48V | Rating48V |
| AC output | 220V AC Inverter output； | |||||
| Dynamic voltage transients:5%； | ||||||
| Dynamic transient recovery time: 60ms； | ||||||
| THD :3%(Linear load)；THD :8%(Nonlinear load)； | ||||||
| Overload capacity: 130% continuous not less than 20s; | ||||||
| Peak coefficient of output current:3:1； | ||||||
| DC and AC switching time:0ms； | ||||||
| Invert to bypass switch time:4ms | ||||||
| Charging current | 5-7A | |||||
| Protection function | DC input over-voltage protection, under-voltage protection, output over-voltage protection, overload protection, over-temperature protection, short circuit protection | |||||
| Operation Mode | Front operation front wiring | Front operation followed by wiring | ||||
Cabinet Environmental Parameter
| Environmental parameters | Environmental conditions for use | Transportation environmental conditions | Storage environmental conditions | conform to | notes | |||
| type | parameter | unit | Relevant standards | |||||
| Weather | external temperature | low temperature | ℃ | -40 | -40 | -25 | YD/T1058-2000中 | "-40℃ Can start at full load, |
| high temperature | ℃ | 45 | 70 | 55 | 4.1.1and4.1.2 | "+55~+65℃Linear derating20%. | ||
| temperature variation | ℃/min | / | 1 | / | ETS300019-2-2T2.3 | |||
| humidity | relative humidity | % | 5-90 | 90(40±2℃) | / | YD/T1058-2000中4.1.3 | Short term testing requirements: 0-95%, maximum value of 95%, non condensing | |
| air pressure | low pressure | Kpa | 86 | 70 | 70 | YD/T1058-2000中4.1.4 | Only apply to modules | |
| high atmospheric pressure | Kpa | 106 | 106 | 106 | ||||
| altitude | m | ≤4000 | When the altitude exceeds 2000m, for every 100m increase, the temperature decreases by 0.5 ℃ | |||||
Electrical characteristics
| 1 Input characteristics | |||||
| Serial Number | project | technical requirement | unit | notes | |
| 1.1 | Input Voltage | 90—300 | Vac | 176-300Vac full load output, 90-175Vac reduced load output | |
| 1.2 | Input maximum current | 57 | A | ||
| 1.3 | Input Rated Voltage | 220 | Vac | Phase voltage | |
| 1.4 | Input voltage frequency | 47—63(The typical value is50/60) | Hz | ||
| 1.5 | Input power factor | ≥0.99 | Full load working state | ||
| 2 output characteristic | |||||
| Serial Number | project | technical requirement | Unit | notes | |
| 2.1 | Output rated voltage | -54 | Vdc | IN220Vac | |
| 2.2 | Output voltage range | -42— -58 | Vdc | Adjustable through monitoring (test condition: no load) | |
| 2.3 | Output rated current | 150 | A | ||
| 2.4 | Output Rating Power | 8.7 | KW | ||
| 2.5 | Output ripple and noise | ≤200 | mVp-p | The oscilloscope bandwidth should be20MHz, | |
| Probe parallel with 10u+104 capacitor | |||||
| 2.6 | Startup output delay | 3—8 | S | IN 220Vac, | |
| 2.7 | Voltage stabilization accuracy | ≤±1% | |||
| 2.8 | Noise index | Broadband clutter | ≤100 | mV | 3.4—150 KHz |
| Sound voltage | ≤30 | mV | 150—30 MHz | ||
| Telephone balance weight | ≤2 | mV | |||
| noise voltage | |||||
| 2.9 | dynamics | overshoot amplitude | △V:≤5 | %Vo | 25%—50%—25% |
| in response to | recovery time | △t:≤500 | µS | 50%—75%—50%load change | |
| 2.1 | Unequal current distribution | ≤5% | Module parallel 50% -100% rated output | ||
| (Functional modules can work in parallel) | |||||
| 2.11 | temperature coefficient | ±0.02 | %/℃ | ||
| 2.12 | output efficiency | ≥95% | 220Vac/Rated load (typical value), high-efficiency module | ||
| ≥92% | 220Vac/Rated load (typical value), universal module | ||||
| ≥87% | 110VAC/rated load | ||||
