Military-Grade Reliability UPS Outdoor Cabinet – 24VDC 1KVA Mission-Critical Power Solution

Brand Name:	Daxin
Model Number:	ODC-7058351K-24V
MOQ:	1 Set
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Install Method:

Pole/Wall Mount

Material:

Galvanized Steel/ Stainless Steel

Customized Service:

UPS Capacity:

1KVA/800W

DC Input:

Supply Ability:

8000pcs/month

Highlight:

24VDC Outdoor Power Cabinet

Military-Grade Outdoor Power Cabinet

Mission-Critical Outdoor Power Cabinet

Product Description

Military-Grade Reliability UPS Outdoor Cabinet – 24VDC 1KVA Mission-Critical Power Solution

Product Specifications

Install Method	Pole/Wall Mount
Material	Galvanized steel/Stainless steel
Customized service	Yes
UPS capacity	1KVA/800W
DC Input	24V

Engineering Excellence

The AAM1K-24V Industrial UPS Outdoor Cabinet delivers 1KVA/800W of continuous power with military-grade components designed for 24/7 operation in extreme environments.

Key Technical Advantages

Battery Optimization - Reduces discharge cycles by 30% compared to conventional systems, extending battery lifespan.
Military-Grade Reliability - DSP-controlled power regulation maintains <3% output voltage deviation under dynamic loads.
Future-Ready Architecture - Hot-swappable expansion slots for IoT/Industry 4.0 integrations.

Advanced Power Architecture

Dual-stage conversion system:
- AC/DC: 92% efficiency with harmonic distortion <5%
- DC/AC: Pure sine wave (<3% THD)
Dynamic load handling:
- 150% overload for 30 seconds
- 200% surge capacity for 500ms

Battery Subsystem

24V DC battery configuration:
- Supports 2×12V (series) or 4×6V configurations
- Automatic cell balancing
Smart charging profiles:
- LiFePO4: CC/CV with 0.5% voltage accuracy
- Lead-acid: Temperature-compensated 3-stage

Environmental Hardening

Operational extremes:
- -40°C cold start capability
- +70°C thermal shutdown
Vibration resistance: 5-500Hz, 5Grms per IEC 60068-2-64

Monitoring & Intelligence

Predictive analytics:
- Capacitor wear monitoring
- Fan life estimation
Cybersecurity:
- TLS 1.2 encrypted communications
- Role-based access control

Deployment Features

Modular expansion:
- Parallel capability for N+1 redundancy
- Hot-swap power modules
Conduit-ready:
- 6× 3/4" NPT threaded entries
- Dual-compartment design (power/electronics)

Compliance Matrix

Safety: UL 1778, EN 62040-1
EMC: EN 61000-6-2/4
Transport: ISTA 3A

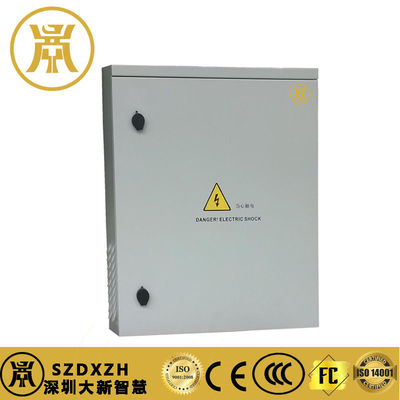

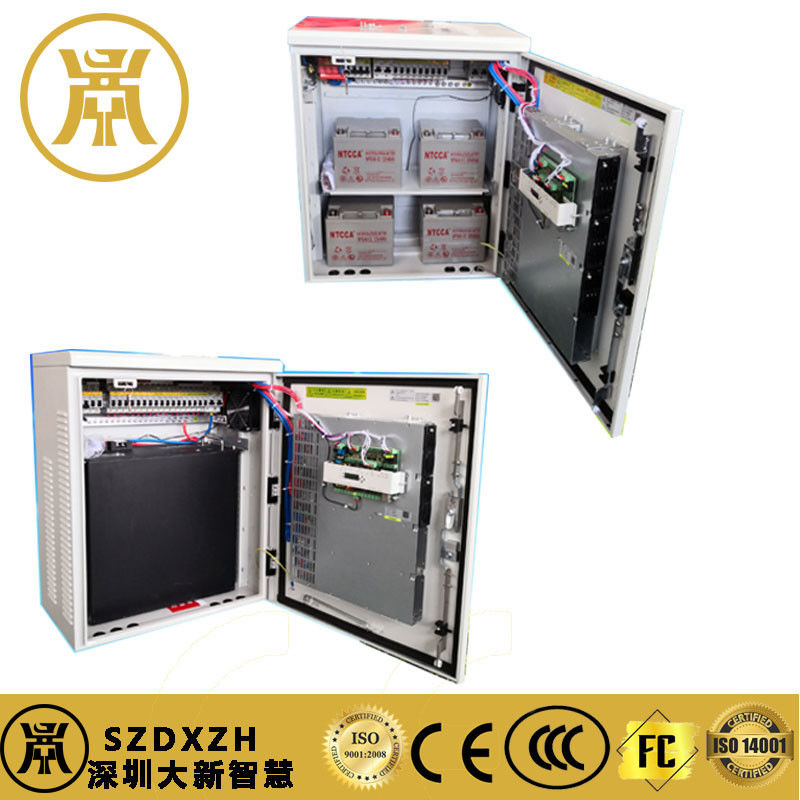

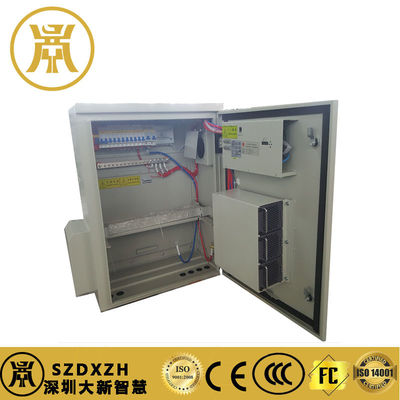

Product Images
