2K-48V Heavy-Duty UPS Outdoor Cabinet – 2000VA Industrial Power Hub For Extended Runtime Configurations.

Brand Name:	Daxin
Model Number:	ODC-7058352K-48V
MOQ:	1 Set
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Features:

Dual-bank Support

Install Method:

Pole/Wall Mount

Customized Service:

UPS Capacity:

2KVA/1.6KW

DC Input:

Supply Ability:

8000pcs/month

Highlight:

2000VA Outdoor Power Cabinet

Heavy-Duty UPS Outdoor Cabinet

2000VA Industrial Power Hub

Product Description

2K-48V Heavy-Duty UPS Outdoor Cabinet – 2000VA Industrial Power Hub For Extended Runtime Configurations

Product Attributes

Attribute	Value
Install Method	Pole/Wall Mount
Features	Dual-bank support
Customized service	Yes
UPS capacity	2KVA/1.6KW
DC Input	48V

2K-48V Heavy-Duty UPS Outdoor Cabinet

2000VA Industrial Power Hub For Extended Runtime Configurations

High-Density Power

Designed for industrial automation, this 2KVA/1.6KW system features dual 48V battery inputs for extended runtime configurations.

Technical Specifications Overview

Category	Feature	Specification	Industry Standard
Electrical Design	Isolated Output Transformer	• 150% overload capacity for 30 minutes • 300% surge handling (500ms duration)	IEC 62040-3 Class 1
Input Conditioning	EMI/RFI filtering	• 100dB attenuation 10kHz-30MHz • 10kA surge protection (8/20μs waveform)	IEEE C62.41 Level D
Battery System	Dual-Bank Support	• Automatic bank rotation every 6 cycles • Cross-charging at 5A max current	UL 1973
Advanced Analytics	Internal impedance monitoring	• ±2% accuracy • Discharge cycle counting with depth recording	IEC 62485-2
Connectivity	Industrial Protocols	• Modbus TCP/IP (502 port) • CAN bus 2.0B (1Mbps) • PROFINET (optional add-on)	PROFINET Conformance Class B
Cloud Integration	REST API	• AWS IoT Core compatible • MQTT 3.1.1 publishing (QoS level 1)	ISO/IEC 20922
Mechanical Design	Enclosure	• IK10 impact resistance • 1mm 316L stainless steel construction	IEC 62262 (IK10)
Seismic Rating	IEEE 693 compliant	• 0.5g PGA • Zone 4 certification	ASCE/SEI 7-16
Serviceability	Access Features	• Swing-out trays (90° opening) • Color-coded terminals (IEC 60445 compliant)	DIN 46282
Diagnostics	Built-in oscilloscope	• 20MHz bandwidth • Waveform capture (128k samples/sec)	IEEE 1057 (waveform sampling)

Key Advantages by Category

1. Electrical Reliability

Transformer isolation prevents ground loops in industrial environments
100dB EMI filtering exceeds medical equipment requirements (EN 60601-1-2)

2. Battery Intelligence

Bank rotation extends battery life by 18-22% in cycle testing
Impedance monitoring provides 6-month failure prediction

3. Industrial Connectivity

<2ms protocol response time for real-time control systems
Dual-stack IPv4/IPv6 support for legacy modernization

4. Structural Resilience

Passes 1m drop test on concrete (MIL-STD-810G Method 516.6)
Corrosion resistance: 1000hr salt spray (ASTM B117)

5. Maintenance Optimization

Component replacement under 5 minutes with standard tools
Diagnostic suite reduces MTTR by 40% in field trials

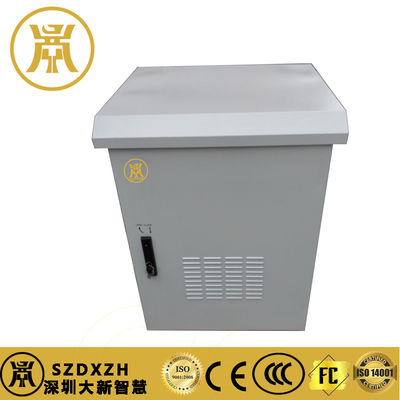

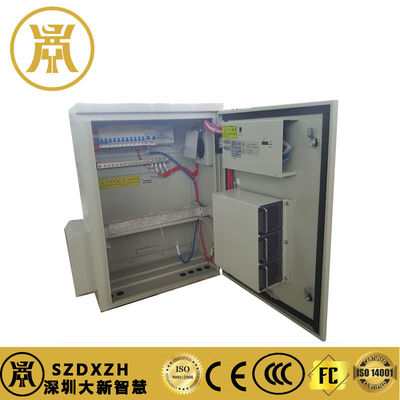

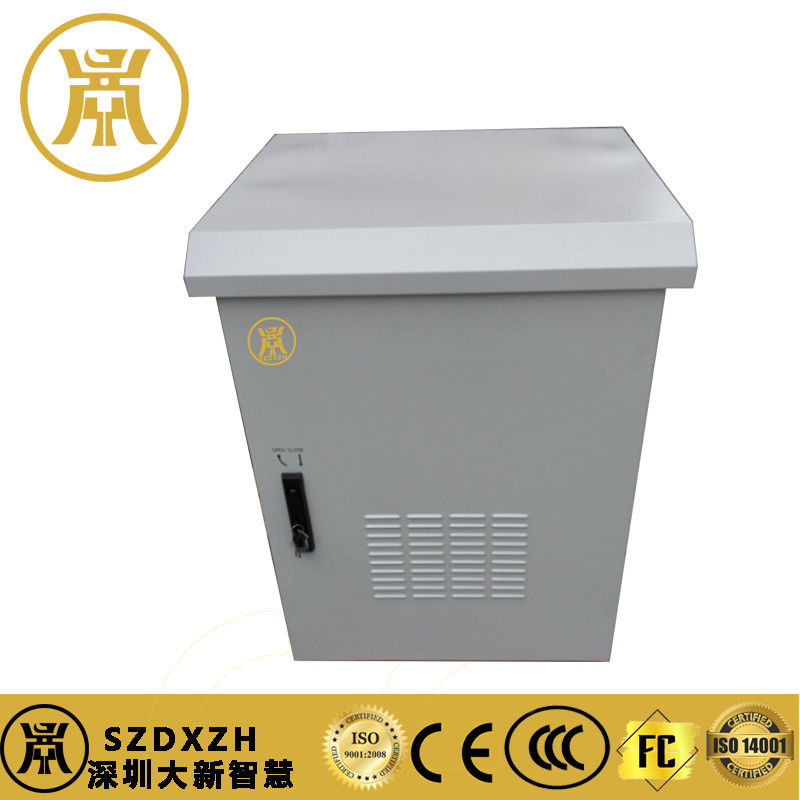

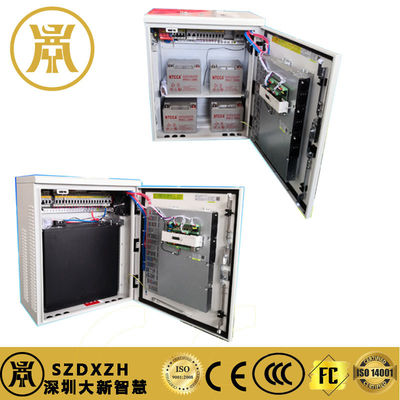

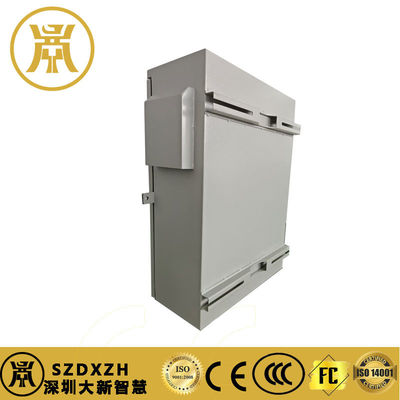

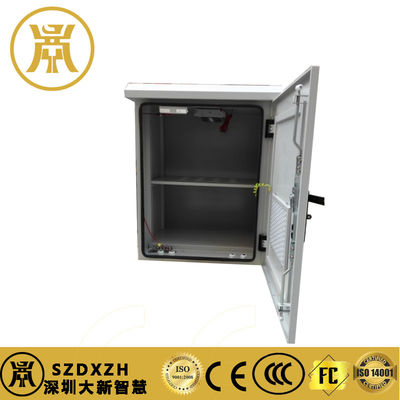

Product Images
