| Brand Name: | Daxin |
| Model Number: | ODC-7058353K-48V |
| MOQ: | 1 Set |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |
| Category | Component | Specification | Certification/Standard |
|---|---|---|---|
| System Overview | Availability | 99.999% uptime (Tier III compliant) | Uptime Institute Tier Standard |
| Capacity | 3KVA/2.4KW continuous output | IEC 62040-3 | |
| Power Conversion | IGBT Inverter | • 96% efficiency at 50% load • <1% THD at full load |
EN 50581 |
| Dual-Input Design | • Primary/alternate AC auto-switching • <4ms transfer time |
IEEE 446 | |
| Battery System | Scalability | • Up to 200Ah external battery • 30-minute recharge to 90% SoC |
UL 1973 |
| Lithium Compatibility | • CAN bus 2.0B BMS interface • ±0.5% cell voltage monitoring |
IEC 62619 | |
| Thermal Management | Active Cooling | • N+1 redundant fans (40,000hr MTBF) • Optional liquid cooling (50°C ambient) |
ASHRAE TC9.9 |
| Condensation Control | • 300W auto-regulating heaters • ±3% RH humidity monitoring |
IEC 60721-3-4 | |
| Security | Physical Protection | • Door sensors with anti-tamper alerts • FIPS 140-2 cryptographic module |
UL 294 |
| Audit Capabilities | • 10,000-event log with timestamps • RSA-2048 digital signatures |
ISO/IEC 27001 | |
| Control Interface | Local HMI | • 7" capacitive touchscreen (1280×800) • Interactive single-line diagrams |
EN 61010-1 |
| Remote Management | • IPsec VPN tunnels • TOTP two-factor authentication |
NIST SP 800-63B | |
| Compliance | Safety | UL 924, IEC 62477-1 | NRTL/CB Scheme |
| Environmental | MIL-STD-810G (Method 507.6 humidity) | DEF STAN 00-35 | |
| Cybersecurity | IEC 62443-3-3 SL2 | NERC CIP |
1. Power Continuity
0.001% annual downtime (5.26 minutes)
Concurrent maintainability design
2. Battery Intelligence
Predictive failure analysis with 92% accuracy
Per-cell temperature monitoring (±1°C)
3. Thermal Resilience
55°C operational capability with liquid cooling
3-stage fan speed control (35-65dB adjustable)
4. Security Protocols
Role-based access with 7 privilege levels
FIPS-validated AES-256 encryption
5. Maintenance Features
Hot-swappable power modules (<2min replacement)
Automatic self-test every 168 hours
Edge data centers
5G MEC installations
Financial trading enclosures
Tier III/IV modular data centers

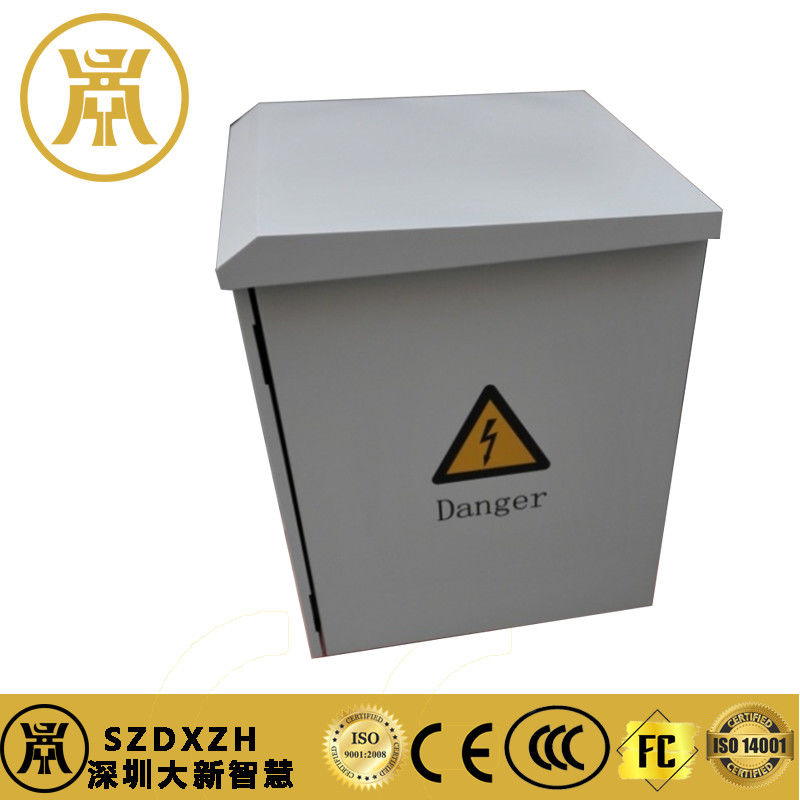

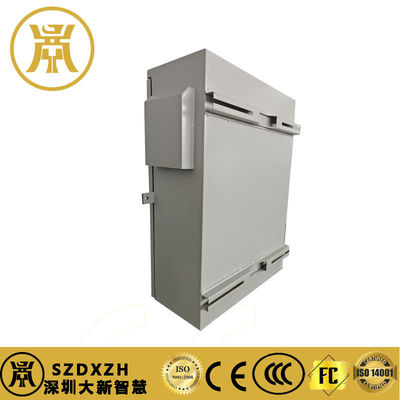

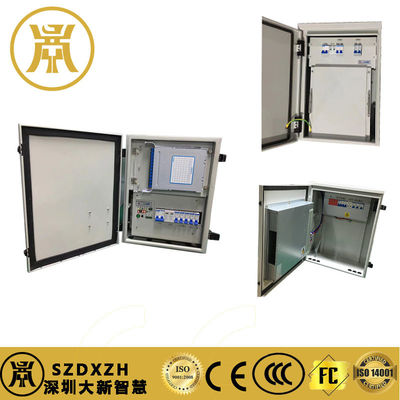

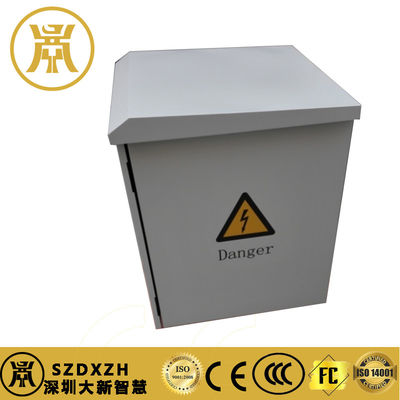

Product Images:
About SZDXZH:
Video
Video
Video
Video
|
