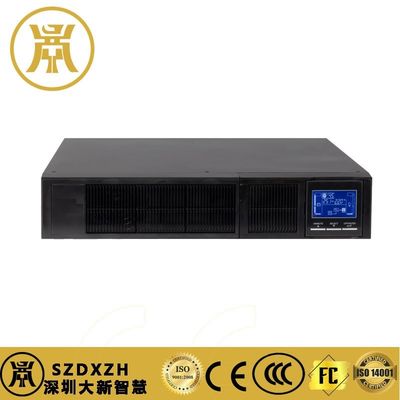

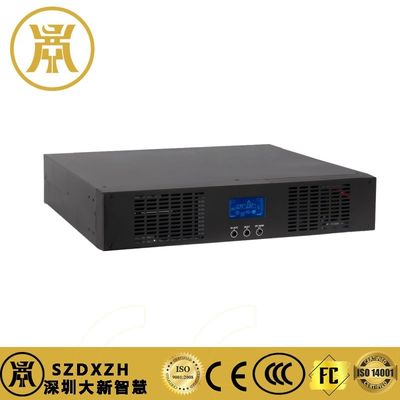

H1KR(L)-H10KR(L) Series High-Frequency Rackmount Online UPS Best For Industrial Applications

Brand Name:	Daxin
Model Number:	H1KR(L)-H10KR(L)
MOQ:	1 pc
Payment Terms:	T/T
Supply Ability:	8000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Transfer Time:

Input/ Output:

Single Phase

Output Voltage:

208/220/230/240VAC ±1%

Load Capacity:

1kVA/2kVA/3kVA/6kVA/10kVA

Installation Method:

Rack/ Tower Type

External Battery:

Support

LCD Display:

Packaging Details:

Woodcase/ Paper box

Supply Ability:

8000pcs/month

Highlight:

Industrial Applications Online UPS

Rackmount Online UPS

High-Frequency Online UPS

Product Description

H1KR(L)-H10KR(L) Series High-Frequency Rackmount Online UPS Best For Industrial Applications

Product Specifications

Attribute	Value
Transfer time	0ms
Input/ Output	Single phase
Output Voltage	208/220/230/240VAC ±1%
Load capacity	1kVA/2kVA/3kVA/6kVA/10kVA
Installation method	Rack/ tower type
External battery	Support
LCD Display	Yes

Core Advantages

True Online Double Conversion
- 0ms transfer time ensures uninterrupted power supply (UPS) for sensitive loads
- Pure sine wave output (<3% THD) compliant with IEEE 519 standards
Scalable Power Solutions
- Power range: 1kVA/0.8kW to 10kVA/8kW
- Modular design supports N+1 redundancy (for H6KR/H10KR models)
Industrial-Grade Reliability
- Wide input voltage range (110-300VAC) for harsh grid conditions
- IGBT rectifier technology with up to 98.5% efficiency

Technical Specifications

Parameter	All Models	H1KR(L)	H2KR(L)	H3KR(L)	H6KR(L)	H10KR(L)
Topology	True Online Double Conversion	✓	✓	✓	✓	✓
Transfer Time	0ms	✓	✓	✓	✓	✓
Output Waveform (Battery)	Pure Sine Wave (<3% THD)	✓	✓	✓	✓	✓
Protections	Overload/Short Circuit/Surge/Overcharge	✓	✓	✓	✓	✓
Communication	RS-232/USB + Optional SNMP	✓	✓	✓	✓	✓

Recommended Application Pairings

LCD Display

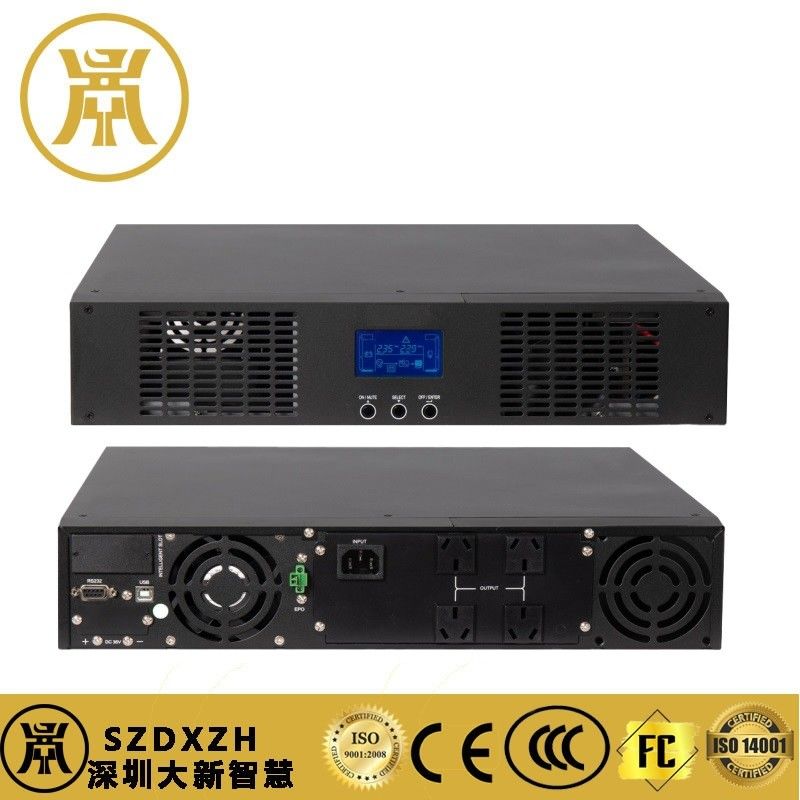

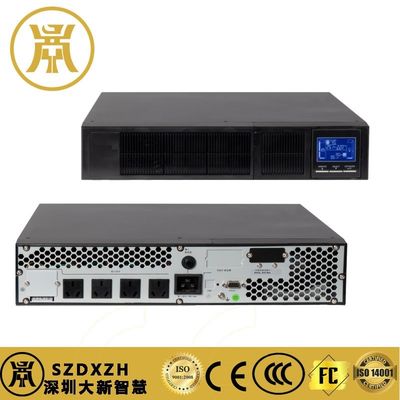

Back view

Key Features

Generator Compatibility
- Works with 2x capacity generators (all models)
- Auto-synchronization for seamless grid-to-generator transition
Smart Monitoring
- LCD interface + SNMP/RS-232/USB connectivity
- Supports Windows/Linux/MAC power management
Flexible Deployment
- Rackmount or tower installation (H1KR-H6KR)
- Optional DIN rail kit for industrial control panels (H3KR/H6KR)

Application Scenarios

Data Centers
- Hot-swappable batteries minimize downtime
- EPO (Emergency Power Off) support for safety compliance
Industrial Facilities
- IP20-rated enclosure resists dust/particulates
- Operates at -25 °C to +60°C (with extended kit)
Healthcare/Telecom
- Medical-grade isolation (optional for H6KR/H10KR)
- <50dB noise level for quiet environments
