| Brand Name: | daxin |
| Model Number: | DX-90902195-42U |
| MOQ: | 1pcs |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000pcs/month |
| Attribute | Value |
|---|---|
| Type | Telecom Outdoor Cabinet |
| Installation Method | Rack Mounted |
| Surface | Outdoor Powder Coating |
| Embedded Power Supply Brand | Daxin |
| Protection Level | IP55 |
| Manufacturer | Shenzhen |
| External size | Customized |
| Material | Sandwich panel |
| Color | RAL7035 GREY |

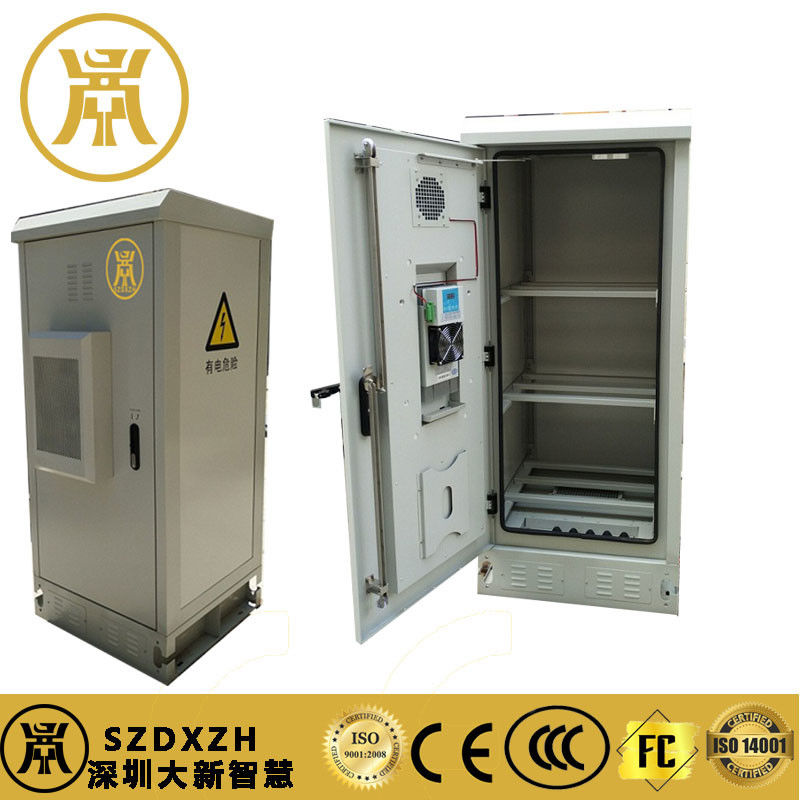

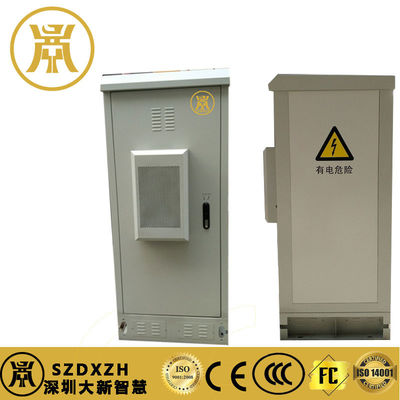

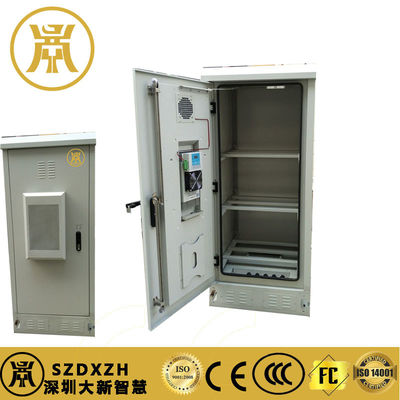

Customized Anti Theft 42U Outdoor Cabinet With PDU And Air Conditioner DAXIN
Outdoor battery storage cabinets come in a variety of sizes and capacities to suit different applications and energy needs. Here are some typical sizes and capacities:
Small Cabinets:
Medium Cabinets:
Large Cabinets:
Residential Systems:
Small to Medium Commercial Systems:
Large Commercial and Utility Systems:
| Specification of cabinet | ||
|---|---|---|
| 1 | Model | DAXIN90902195-42U |
| 2 | Cabinet Dimension | W×D×H 900×900×2195mm |
| 3 | Available User Space | 42U standard 19" rack |
| 4 | Door | One front door |
| 5 | Lock | Outdoor special anti-theft three point locking |
| 6 | Material | Sandwich panel with heat insulation |
| 7 | Cabinet Installation method | Floor mount |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting | 4 ears on the cabinet base |
| 10 | Earthing | Grounding copper bar |
| 11 | Working Temperature | -40°C～+75°C |
| 12 | Protection Level | IP55 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Other accessories | ||
| 1 | Cooling | 1. Air conditioner, Cooling capacity: 1500W, Power supply: AC220V, 50Hz 2. Fan |
| 2 | Power Distribution Unit | 3U height, with customized breakers |
| 3 | LED light | AC220V 50Hz, with LED lamp switch |
| Packing | ||
| Wooden case | W×D×H 970×1190×2370mm | |
