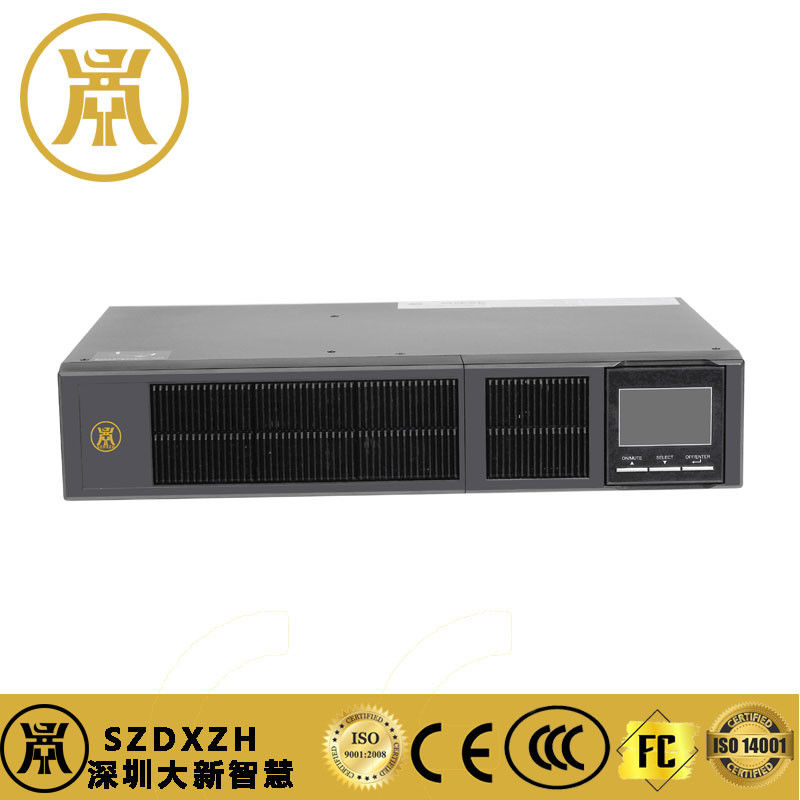

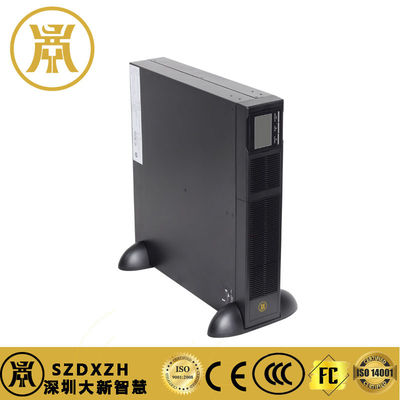

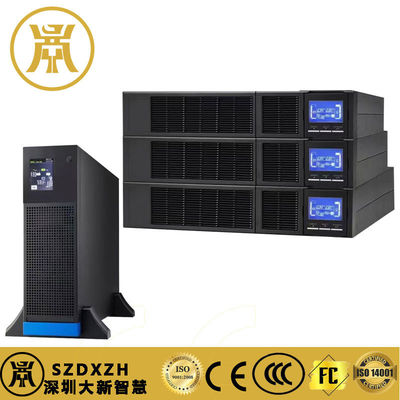

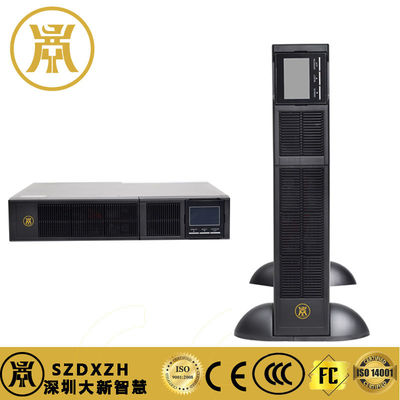

High-Frequency Rack/Tower Convertible Online UPS - Enterprise-Grade 10KVA Load Capacity

Brand Name: Daxin
Model Number: HR33-10KL
MOQ: 1 pc
Packaging Details: Woodcase/ Paper box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,UL
Document:
Product Brochure PDF
Transfer Time:
0ms
Input/ Output:
3-phase
Output Voltage:
360/380/400/415VAC (Ph - Ph)
Load Capacity:
10kVA/10kW
Installation Method:
Rack/ Tower Type
External Battery:
Support
Dimension:
680X438X133mm /3U
Supply Ability:
8000pcs/month
Highlight:

Enterprise-Grade Online UPS

,

10KVA Load Capacity Online UPS

,

Rack High Frequency UPS

Product Description
High-Frequency Rack/Tower Convertible Online UPS - Enterprise-Grade 10KVA Load Capacity
Product Specifications
Attribute Value
Transfer time 0ms
Input/Output 3-phase
Output Voltage 360/380/400/415VAC (Ph - Ph)
Load capacity 10kVA/10kW
Installation method Rack/tower type
External battery Support
Dimension 680×438×133mm /3U
Product Overview

Our high-frequency rack/tower convertible Online UPS system delivers true double-conversion technology, providing zero-transfer-time protection against all types of power disturbances:

  • Complete Voltage Protection (110V-300V operating range)
  • Blackout Protection with instantaneous battery transfer
  • Multi-Layered Surge Protection (8kV/20kA)
  • Overload & Short-Circuit Protection
  • Noise Filtration (<2% THD for linear loads)
Power Performance
Parameter Specification
Capacity 10KVA/10KW
Input Voltage Range 110-300VAC (L-N)
Output Voltage 360/380/400/415VAC (Ph-Ph)
Output Power Factor 1.0
Efficiency (AC Mode) 95.5%
Transfer Time 0ms
Battery System
  • Adjustable battery count (16-20 units)
  • Smart 3-stage charging technology
  • Configurable charging current (1A-12A)
  • ±13.65VDC*N charging voltage (±1% accuracy)
Enterprise-Class Features
Intelligent Monitoring & Control
  • Rotating LCD Display (10K-20K models)
  • Multi-Protocol Communication: RS232/RS485 interfaces
  • SNMP network monitoring
  • USB connectivity
  • Compatible with Windows/Linux/Mac systems
Enhanced Protection Systems
  • DSP-controlled power conversion
  • Automatic bypass function
  • Emergency Power Off (EPO) capability
  • Parallel operation capability (optional)
Environmental Adaptability
  • Triple-Protection Coating on PCBs
  • Wide operating temperature (0°C-40°C)
  • High humidity tolerance (<95% non-condensing)
  • IP20 protection rating
  • Low noise operation (<60dB @ 1m)
Physical Specifications
  • Dimensions: 680×438×133mm (3U rack-mountable)
  • Weight: 27kg
  • Installation: Rack or tower convertible
Ideal Applications
  • Data centers and server rooms
  • Industrial automation systems
  • Medical equipment power backup
  • Telecom infrastructure
  • Financial transaction systems
Key Advantages
  • Pure sine wave output for sensitive electronics
  • Generator-compatible with dual input support
  • Expandable runtime with adjustable battery banks
  • Energy-saving ECO mode available
  • Global voltage/frequency compatibility (50/60Hz)

This enterprise-grade Online UPS solution combines military-grade protection with advanced monitoring capabilities, ensuring maximum uptime for your critical operations. The rack/tower convertible design provides deployment flexibility for various infrastructure requirements.
