3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection

Brand Name:	Daxin
Model Number:	HR33-15KL
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Transfer Time:

Input/ Output:

3-phase

Output Voltage:

360/380/400/415VAC (Ph - Ph)

Load Capacity:

15kVA/15kW

Installation Method:

Rack/ Tower Type

External Battery:

Support

Dimension:

680X438X133mm /3U

Supply Ability:

8000pcs/month

Highlight:

3U Online UPS

Multi-Stage Surge Protection Online UPS

Mission-Critical Power Protection Online UPS

Product Description

3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection

Premium Online UPS Technology for Demanding Environments

Our high-frequency rack/tower convertible Online UPS systems deliver true double-conversion power protection for industrial and commercial applications. The 15K-20KVA models feature:

Comprehensive Power Protection:

Wide Input Voltage Range: 110-300VAC operation
Multi-Stage Surge Protection: 8kV/20kA rating
Advanced Battery Management: 3-stage smart charging
Overload Capacity:

110% load: 60 minutes
125% load: 10 minutes
150% load: 1 minute

Ideal Applications:

✓ Industrial automation systems
✓ Data center power backup
✓ Medical equipment protection
✓ Telecom infrastructure
✓ Financial transaction systems

Key Technical Specifications:

Parameter	15KL/15KL
Capacity	15KVA/15KW
Input Voltage	110-300VAC
Output Power Factor	1.0
Efficiency	95.5% (AC)
Noise Level	<60dB

Advanced Battery Features:

Configurable battery banks (32-40 units)
Adjustable charging current (1A-12A)
Precision charging voltage (±1% accuracy)
Shared battery group support

Enterprise Management Capabilities:

1. Intelligent Monitoring System:

>Multi-Interface Connectivity:

RS232/RS485 communication
SNMP network management
USB connectivity

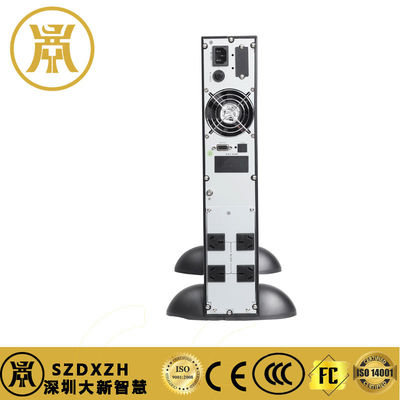

Back view:

3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection 0

>Cross-Platform Support:

Windows (all versions)
Linux/Mac compatible

2. Operational Advantages:

DSP-Controlled Power Conversion
Automatic Voltage Regulation
Generator Compatibility
Dual Input Support
Optional Parallel Operation

3. Environmental Specifications:

Operating Temperature: 0°C to 40°C
Humidity Tolerance: <95% non-condensing
Protection Rating: IP20
Altitude Limit: <1000m

Physical Configuration:

Form Factor: 3U rack-mountable (680×438×133mm)
Weight: 30kg (15KVA model)
Installation Flexibility: Rack or tower convertible

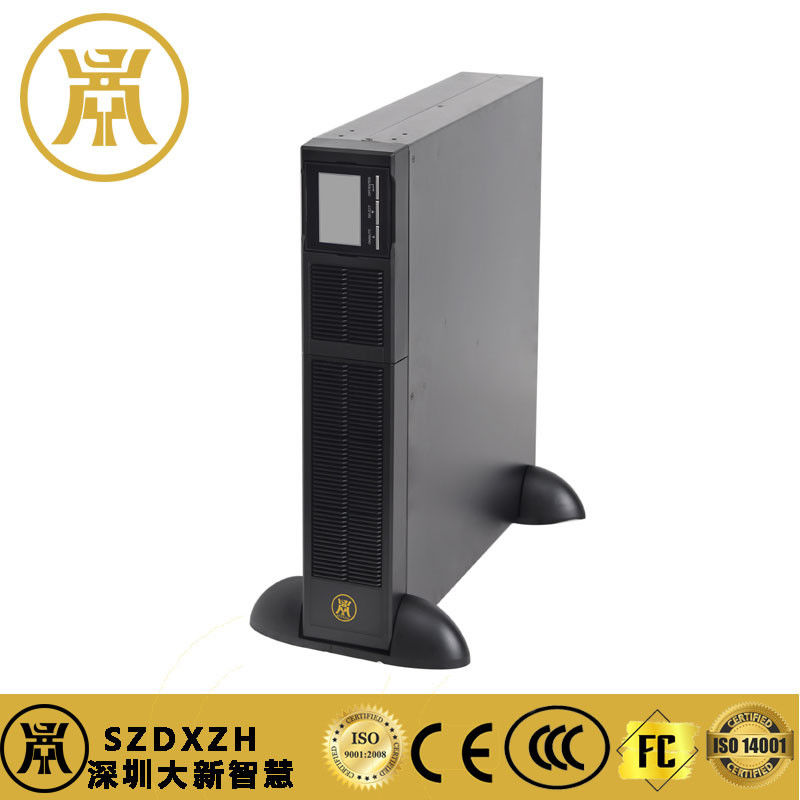

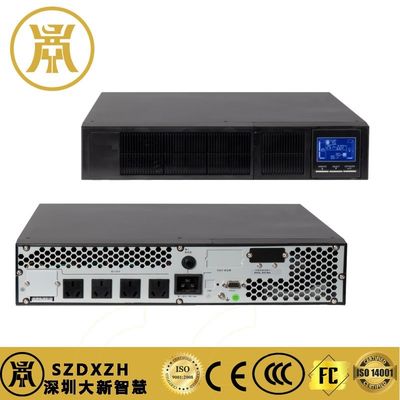

Rack/Tower Convertible:

3U Online UPS Mission-Critical Power Protection Solutions with Multi-Stage Surge Protection 1

Why Our Online UPS Stands Out:

Pure sine wave output for sensitive equipment
Military-grade protection for harsh environments
Expandable runtime configurations
Energy-efficient ECO mode
Global voltage compatibility (50/60Hz)

This industrial-grade Online UPS solution combines advanced power protection with enterprise management features, ensuring maximum reliability for critical operations. The rack/tower convertible design provides deployment versatility across various infrastructure requirements.
