High - Frequency Online UPS Pure Sine Wave Output Safeguards Sensitive Equipment

Brand Name:	Daxin
Model Number:	HR33-30KL
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Transfer Time:

Input/ Output:

3-phase

Output Voltage:

360/380/400/415VAC (Ph - Ph)

Load Capacity:

30kVA/30kW

Installation Method:

Rack/ Tower Type

External Battery:

Support

Dimension:

680X438X133mm /3U

Supply Ability:

8000pcs/month

Highlight:

Pure Sine Wave Online UPS

Sensitive Equipment Online UPS

High Frequency Online UPS

Product Description

High - Frequency Online UPS Pure Sine Wave Output Safeguards Sensitive Equipment

This industrial - grade online UPS solution not only delivers dependable power conditioning but also incorporates sophisticated monitoring features. It guarantees the highest possible uptime for essential operations.

Its adaptable design enables flexible deployment, catering to a wide range of infrastructure needs.

Professional-Grade Double Conversion Online UPS Technology

The 30KVA rack/tower convertible Online UPS delivers pure double-conversion power protection, ensuring zero transfer time and clean power output for critical industrial applications.

System Advantages:

Pure sine wave output for sensitive equipment
Military-grade component protection
Flexible runtime configurations
Global voltage compatibility
Optional parallel operation

Application:

Government

Military

Banking

Financial

Server

Network Workstation

Network Closet

VoIP Device

Large Network Peripheral

Aerospace

Missile

IT Equipment

Technical Specifications:

Power Performance:

Parameter	Specification
Capacity	30KVA/30KW
Input Range	110-300VAC (L-N)
Output Voltage	360-415VAC (Ph-Ph)
Output Power Factor	1.0
Efficiency	95.5% (AC mode)
Frequency Range	50/60Hz ±0.1Hz

Battery System:

Configurable battery setup (32-40 units)
Adjustable charging current (1A-12A)
Precision voltage regulation (±1%)
Shared battery group support

Product details:

High - Frequency Online UPS Pure Sine Wave Output Safeguards Sensitive Equipment 0 Features:

1. Intelligent Management System

Multi-interface connectivity:

RS232/RS485 communication
SNMP network monitoring
USB interface

Cross-platform compatibility:

Windows (all versions)
Linux/Mac support

2. Operational Features

DSP-controlled power conversion
ECO mode for energy efficiency
Emergency Power Off (EPO)
Generator compatibility
Dual input support

3. Environmental Specifications

Operating temperature: 0°C to 40°C
Humidity tolerance: <95% non-condensing
IP20 protection rating
Noise level: <62dB @ 1m

4. Comprehensive Protection Features:

Wide input voltage range: 110-300VAC operation
Multi-stage power conditioning:

Voltage regulation

Surge suppression (8kV/20kA)

Noise filtration (<2% THD)

Physical Configuration

Form Factor: 3U rack-mountable (680×438×133mm)

Weight: 32kg

Installation: Rack or tower convertible

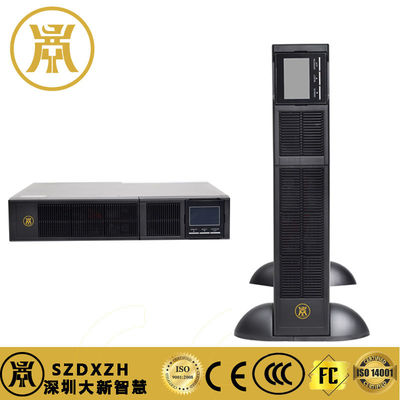

Rack/Tower Convertible:

High - Frequency Online UPS Pure Sine Wave Output Safeguards Sensitive Equipment 1
