50kva 100kWh Solar Pv Batteries Solution The Perfect All-in-One Solar Storage System for Your Business

Brand Name:	Daxin
Model Number:	DX-BESS-50K100
MOQ:	1 SET
Payment Terms:	T/T
Supply Ability:	6000-8000 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

System Configuration:

Outdoor Cabinet+Inverter+Battery

Battery Module Nominal Voltage (V):

Max Charge Current:

Cycle Life:

≥6500

Max. PV Input Power (W):

65000

MPPT Voltage Range (Vdc):

150-850

Packaging Details:

Wooden case with pallet

Supply Ability:

6000-8000 Sets/month

Highlight:

50kva Solar Pv Batteries

All-in-One Solar Pv Batteries

100kWh Solar Pv Batteries

Product Description

50kVA 100kWh Solar PV Batteries Solution

The Perfect All-in-One Solar Storage System for Your Business

System Configuration:

Outdoor cabinet + Inverter + Battery

Key Specifications:

Battery Module Nominal Voltage	512V
Max Charge Current	100A
Cycle Life	≥6500 cycles
Max. PV Input Power	65000W
MPPT Voltage Range	150-850Vdc

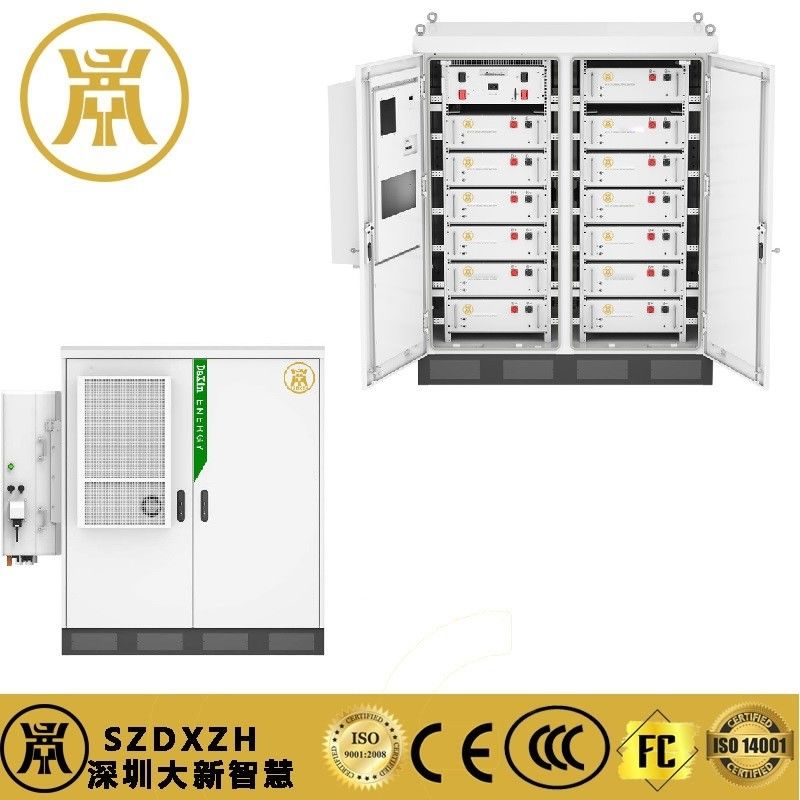

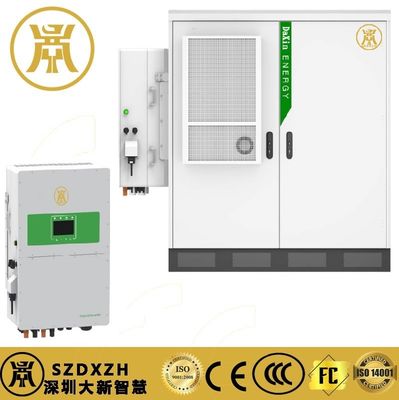

50kVA/100kWh Solar PV Battery Energy Storage System

The DX-BESS-50K100 is a high-performance Battery Energy Storage System (BESS) designed for commercial and industrial solar PV solutions, delivering 100kWh usable capacity with LiFePO4 technology for safety, efficiency, and scalability.

Why Choose DX-BESS-50K100?

All-in-One Solar PV Battery System: Integrates BESS, ESS, and hybrid inverter for turnkey deployment
Grid Resilience: Supports black start and off-grid operations
Future-Proof: Modular design scales with energy demands

Technical Specifications

System Overview

Nominal Output Power	50kW (UPS)
Energy Capacity	102.4kWh (100kWh usable)
Battery Chemistry	LiFePO4 (512V, 200Ah)
Operating Voltage	400-800VDC
Enclosure Protection	IP55
Dimensions (W×D×H)	1400×1100×1650mm (excl. inverter)
Weight	1350kg (excl. inverter)

Inverter Details

MPPT Range: 150-850V
THD: <3%
Communication: CAN, RS485, WiFi, Ethernet

Battery Performance

Cycle Life: 6500+ cycles (@0.5C, 25°C)
Operating Temperature: Charge: 0-55°C / Discharge: -20-55°C

Key Features

1. Intelligent & Reliable Energy Storage System (ESS)

Modular Design: 10 x 10.24kWh battery modules (total 102.4kWh) in 400-800VDC range
Built-in Air Conditioning: Maintains battery temperature <40°C for optimal performance
Smart BMS & EMS: Active monitoring and protection for each solar PV battery module
Supports black start, AC/DC coupling, and grid independence

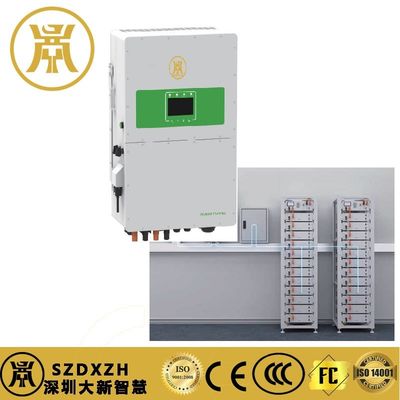

2. High-Efficiency Hybrid Inverter

50kW output, 97.6% peak efficiency, compliant with VDE-AR-N4105, CEI 0-21, IEC 62109
4 MPPTs, 150-850V DC range, and 65000W max PV input
On/Off-Grid Ready: Seamless transition for backup power

3. Safety & Durability

Cobalt-free LiFePO4 cells: Non-toxic, ≥6500 cycles (@70% EOL)
IP55 enclosure: Suitable for indoor/outdoor installation
Aerosol fire extinguishing and multi-protection (overcharge, short circuit, etc.)

4. Scalable & Compliant

Parallel support: Up to 10 systems for expanded capacity
Certifications: UN38.3, IEC 62619, CE, AS4777.2, G99

System Diagram
