| Brand Name: | Daxin |
| Model Number: | DX-BESS-50K130 |
| MOQ: | 1 SET |
| Payment Terms: | T/T |
| Supply Ability: | 6000-8000 Sets/month |
Advanced large-scale renewable energy storage and backup power solution for industrial and commercial applications.
| Output Power/UPS Power | 50KW |
|---|---|
| Grid Type | Three phase |
| IP Rating of Enclosure | IP55 |
| Installation Style | Floor mounted |
| Number of MPPT | 4 |
| LCD Display | Yes |

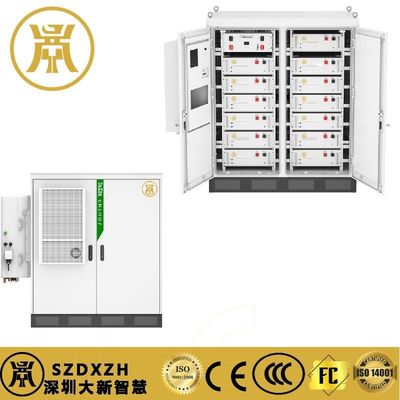

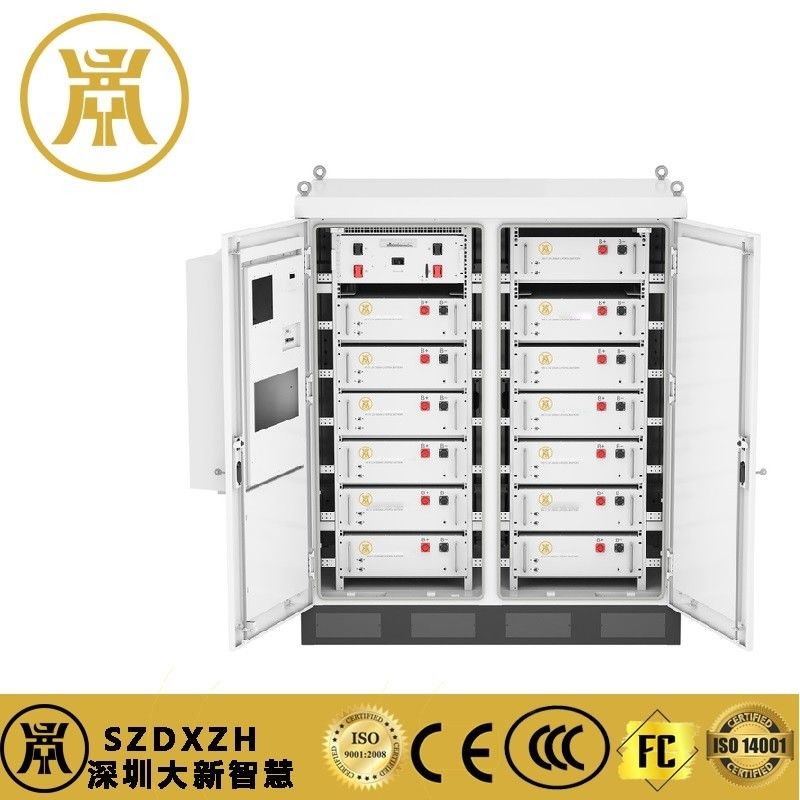

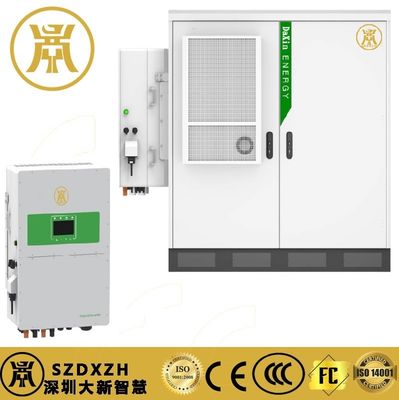

The DX-BESS-50K130 is an advanced solar PV battery solution designed for large-scale renewable energy storage and backup power applications. This high-capacity system features 133.12kWh of usable capacity from 13 battery modules (10.24KWH each) connected in series, operating at 400-800VDC.
| Model | DX-BESS-50K130 |
|---|---|
| Nominal Output Power | 50000W |
| AC Output Frequency/Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Energy Configuration | 133.12kWh |
| Dimensions (W×D×H) | 1400×1000×1650mm (without inverter) |
| Weight | ~1500kg |
| Battery Chemistry | LiFePO4 |
| Warranty | 10 years |
| Nominal Voltage | 665.6V |
|---|---|
| Capacity | 200Ah |
| Energy | 133.12kWh |
| Operating Temperature | Charge: 0～55℃ / Discharge: -20℃～55℃ |
| Cycle Life | ≥6500 cycles (@25℃±2℃, 0.5C/0.5C, 70%EOL) |
