30kVA Modular Online UPS User-configurable Power Protection with Seamless Expansion

Brand Name:	Daxin
Model Number:	RM33-90KVA
MOQ:	1 SET
Packaging Details:	Wooden case with pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Capacity:

90KW, User-configurable

Phase:

3-phase In 3-phase Out

Battery Mode:

External Battery Pack

Single Module Capacity:

Input Voltage:

3*380VAC/400VAC/415VAC(3PH+N)

Supply Ability:

6000-8000 Sets/month

Highlight:

30kVA Modular Online UPS

Seamless Expansion Modular Online UPS

User-configurable Modular Online UPS

Product Description

30kVA Modular Online UPS User-configurable Power Protection with Seamless Expansion

Key Specifications

Capacity	90KW, User-configurable
Phase	3-phase in 3-phase out
Battery mode	External battery pack
Single module capacity	30K
Input Voltage	3*380VAC/400VAC/415VAC(3PH+N)

Advanced Modular UPS System

Enhance your power infrastructure with our advanced Modular UPS system, designed for seamless scalability, rapid maintenance, and uninterrupted operation. Engineered with STS modules, power modules, and battery modules, this solution ensures high efficiency and cost-effective power management tailored to your evolving needs.

Ideal Applications

Government facilities
Military installations
Banking and financial institutions
Server rooms and data centers
Network workstations and closets
VoIP devices and large network peripherals
Aerospace and missile systems
Critical IT equipment

Technical Parameters

Model	RM33-90KVA
Phase	Three times in, three times out
Cabinet capacity	90KW
Battery mode	External battery pack
Single module capacity	30K
Number of installable modules	3

Input Specifications

Rated voltage	3*380VAC/400VAC/415VAC(3PH+N)
Voltage range	100% load 305~478VAC; <70%
Rated range	50/60Hz (Automatic selection)
Frequency range	40Hz~70Hz
Input power factor	100% load >0.99:50% load; >0.98
Current harmonic distortion (THDI)	<3%@100% load

Output Specifications

Rated voltage	3*380VAC/400VAC/415VAC(3PH+N)
Voltage stability (steady state)	≤±1% Typical value (balanced load)~≤±2% Typical Value (Unbalanced Load)
Voltage stability (transient)	≤±5% Typical Value
Rated frequency	50/60Hz
Frequency range (Synchronous correction range)	46~54Hz OR 56~64Hz
Overload capability	110% 60分钟；120% 10分钟,150% 60秒,>150% 200毫秒
Harmonic distortion	≤1.5%TDH(Linear load)；≤4%TDH(Non-linear load)
Efficiency	Max. 94.5%

Battery/Charging Specifications

Rated voltage	±216v(12v*36)
Maximum voltage	±240v(12v*40)
Minimum voltage	±192v(12v*32)
Float charging voltage	2.25V/cell
Maximum charging voltage	2.25V/cell
Temperature compensation	YES
Maximum charging current	8A for 30kw module/6A for 20kw module

Physical Specifications

Cabinet size (DepthWidthHeight)mm	1100514763
Net weight of the cabinet (KG)	183.5

Environmental Specifications

Temperature and humidity	Relative humidity 20-90% and 0-40 ℃ (non condensing)
IP Protection level	IP20

Key Components

Component	Description
STS Module	Pre-installed in the UPS, it provides bypass power when the UPS switches to bypass mode.

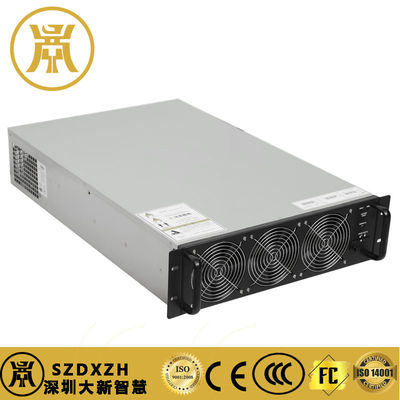

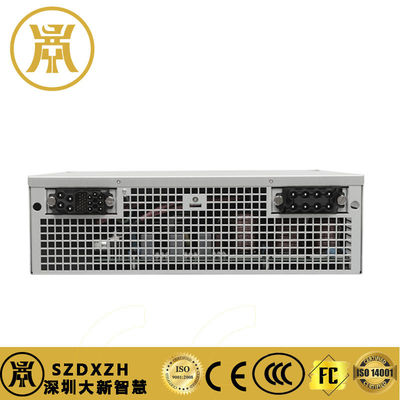

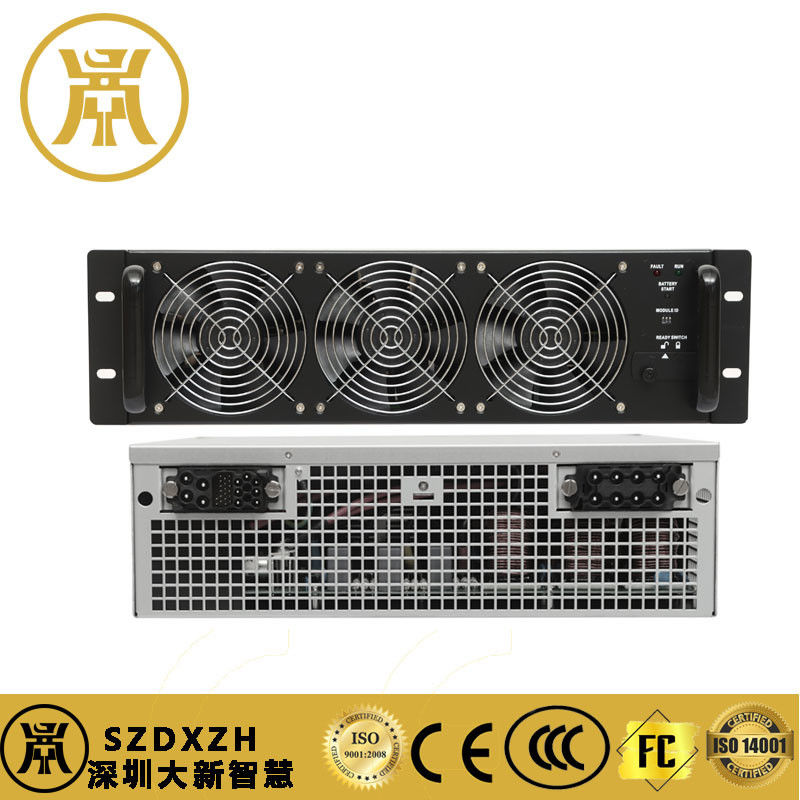

Power Module	Packaged separately and installed during UPS setup. Each module delivers 30kVA/30kW capacity, featuring a PFC rectifier, battery charger, inverter, and control circuitry. Modular and hot-swappable for easy expansion.
Battery Module	Shipped separately, each module supports up to 10 x 12V/9Ah batteries, ensuring flexible energy storage.

Key Features

1. Scalable Power Solution

Customizable Configuration - Adjust the number of power modules based on initial requirements
Seamless Expansion - Add extra power modules without system downtime as demand grows

2. Stable & Secure Operation Modes

Our Modular UPS is a three-phase, four-wire, online double-conversion inverter UPS, supporting multiple operational modes:

Standby Mode
Online Mode
Battery Mode
Bypass Mode
ECO Mode
Shutdown Mode
Maintenance Bypass Mode (Manual Bypass)

3. 5.7" LCD Graphical Interface

Intuitive and clear display for easy monitoring and control

Why Choose Our Modular UPS?

Modular & Hot-Swappable Design - Minimizes downtime with quick repairs and replacements
High Efficiency - Advanced power modules with PFC technology optimize energy usage
Flexible Scalability - Expand power capacity effortlessly without operational disruption
Reliable Performance - Multiple operation modes ensure continuous power supply under all conditions

Upgrade to a future-proof Modular UPS system that grows with your business. Contact us today for a tailored power solution!
