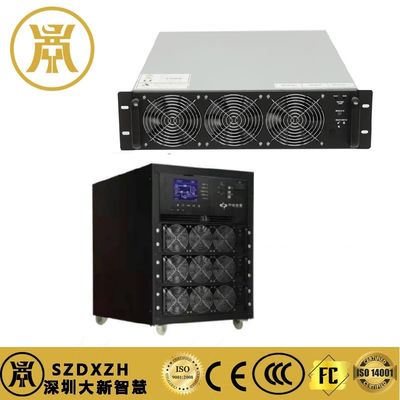

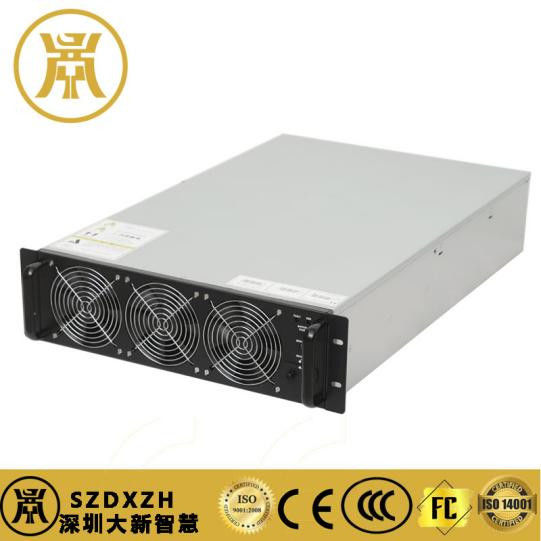

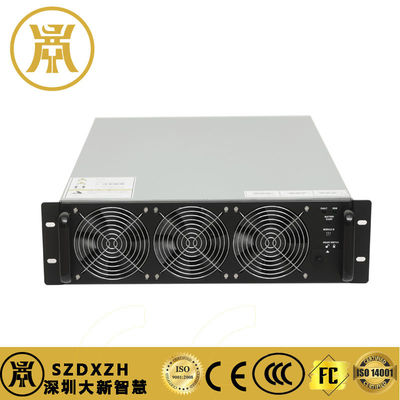

Expandable Modular Online UPS With 5.7" LCD 30k Capacity, Back Up Power Ideal For Data Centers

Brand Name:	Daxin
Model Number:	RM33-60-600 KVA
MOQ:	1 Set
Packaging Details:	Wooden case with pallet
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Feature:

Module Design

Capacity:

Installation Type:

Rack Mounted

Phase Type:

3-phase In 3-phase Out

IP Grade:

Supply Ability:

8000pcs/month

Highlight:

Data Centers Modular Online UPS

5.7” LCD Modular Online UPS

30k Modular Online UPS

Product Description

Expandable Modular Online UPS With 5.7" LCD 30k Capacity, Back Up Power Ideal For Data Centers

Key Features

Modular design for easy maintenance and replacement

Three-phase in, three-phase out configuration

Rack-mounted installation

IP20 protection grade

30K capacity with expandable power modules

5.7" LCD display for monitoring

Technical Specifications

Attribute	Value
Feature	Module design
Capacity	30K
Installation type	Rack mounted
Phase type	3-phase in 3-phase out
IP Grade	IP20

Product Overview

This modular UPS is a three-phase, four-phase online, double-conversion and inverter type uninterruptible power supply. Designed with STS modules, power modules, and battery modules for easy maintenance and replacement, it features a modular and hot-swap design that provides a cost-effective power solution adaptable to various requirements.

Users can adjust the number of power modules according to initial needs and easily expand capacity as power demands increase without interrupting system operation, making it ideal for data centers and critical power applications.

Detailed Parameters

Model	RM33-60KVA	RM33-90KVA	RM33-120KVA	RM33-180KVA	RM33-200KVA	RM33-210KVA	RM33-300KVA	RM33-400KVA	RM33-500KVA	RM33-600KVA
Phase	Three times in, three times out
Cabinet capacity	60KW	90KW	120KW OR 80K	180KW OR 120K	200KW	210KW	300KW	400KW/420KW	500KW	600KW
Battery mode	External battery pack
Single module capacity	20K	30K	20K/30K	20K/30K	20K	30K	30K	50KVA/60KVA(50KW/60KW)	50KVA/60KVA(50KW/60KW)	50KVA/60KVA(50KW/60KW)
Number of installable modules	3	3	4	6	10	7+1	10	7+1	10	10

Input Specifications

Rated voltage: 3*380VAC/400VAC/415VAC(3PH+N)

Voltage range: 100% load 305~478VAC; <70% load

Rated frequency: 50/60Hz (Automatic selection)

Frequency range: 40Hz~70Hz

Input power factor: 100% load >0.99; 50% load >0.98

Current harmonic distortion (THDI): <3%@100% load

Output Specifications

Rated voltage: 3*380VAC/400VAC/415VAC(3PH+N)

Voltage stability (steady state): ≤±1% (balanced load); ≤±2% (unbalanced load)

Voltage stability (transient): ≤±5%

Rated frequency: 50/60Hz

Frequency range: 46~54Hz OR 56~64Hz

Overload capability: 110% 60 minutes; 120% 10 minutes; 150% 60 seconds; >150% 200 milliseconds

Harmonic distortion: ≤1.5% TDH (linear load); ≤4% TDH (nonlinear load)

Efficiency: Up to 94.5%

Battery & Charging

Rated voltage: ±216v (12v*36)

Maximum voltage: ±240v (12v*40)

Minimum voltage: ±192v (12v*32)

Float charging voltage: 2.25V/cell

Maximum charging voltage: 2.25V/cell

Temperature compensation: Yes

Maximum charging current: 8A for 30kw module/6A for 20kw module

Environmental Specifications

Operating temperature: 0-40℃

Relative humidity: 20-90% (non condensing)

IP Protection level: IP20
