1K-48V Telecom UPS Outdoor Cabinet – Carrier-Grade 48VDC Power System meets NEBS Level 3

Brand Name:	Daxin
Model Number:	ODC-7058351K-48V
MOQ:	1 Set
Payment Terms:	T/T
Supply Ability:	8000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

/

Document:

Product Brochure PDF

Install Method:

Pole/Wall Mount

Material:

Galvanized Steel/ Stainless Steel

Customized Service:

Yes

UPS Capacity:

1KVA/800W

DC Input:

48V

Packaging Details:

Woodcase/ Paper box

Supply Ability:

8000pcs/month

Highlight:

1K-48V Telecom UPS Outdoor Cabinet

,

48VDC Telecom UPS Outdoor Cabinet

Product Description

1K-48V Telecom UPS Outdoor Cabinet – Carrier-Grade 48VDC Power System meets NEBS Level 3

Product Specifications

Install Method	Pole/Wall Mount
Material	Galvanized steel/Stainless steel
Customized service	Yes
UPS capacity	1KVA/800W
DC Input	48V

Network Equipment Ready

Precision-engineered for telecom infrastructure, this 48V DC input system meets NEBS Level 3 requirements for central office deployments.

Specialized Power Features

48V battery compatibility: 4×12V series configuration with -42V to -58V operating window
Load prioritization: 6-stage programmable load shedding with 10ms critical load transfer

Thermal Management

Adaptive cooling: Dual ball-bearing fans (50,000 hr MTBF) with temperature-controlled speed
Heating options: -30°C battery warmers with condensation control

Alarm & Notification

Multi-level alerts: SNMP traps (v1/v2c/v3), SMS gateway integration, and visual beacon strobe

Maintenance Advantages

Field-replaceable: Plug-and-play power modules with tool-less battery replacement
Self-test regimen: Weekly battery diagnostics and automatic firmware updates

Physical Specifications

19" rack-mountable: 4U height (177mm) with 600mm depth
Corrosion protection: IEC 60068-2-52 salt spray certified with Class C5-M coating

Comparative Advantage Matrix

Feature	Telecom Advantage	Industrial Benefit	Data Center Value
Temperature Range	Arctic deployment ready	Foundry environment stable	Cold aisle optimization
Battery Types	LiFePO4 cycle life focus	Lead-acid cost efficiency	Lithium-ion density preferred
Communication	SNMPv3 for NOC integration	PROFINET/Modbus PLC links	Redfish API for DCIM
Protection	Lightning arrestor pre-wired	Conduit-ready knockouts	Rack PDU compatibility

Technical Validation

Compliance References:

ETSI EN 300 019 (telecom environmental)
IEC 62040-3 (UPS performance)
NFPA 70E (arc flash safety)

Third-Party Verified:

TÜV Rheinland certified efficiency
UL 1973 for battery safety
GR-3168 (NEBS Level 3)

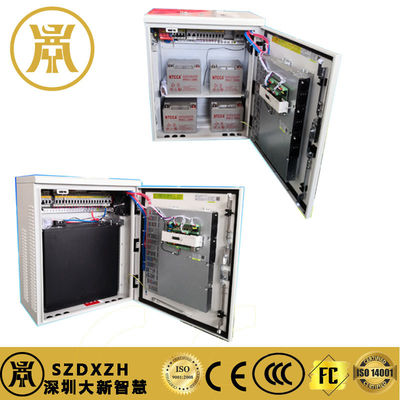

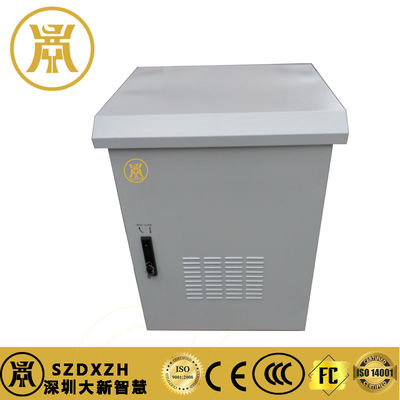

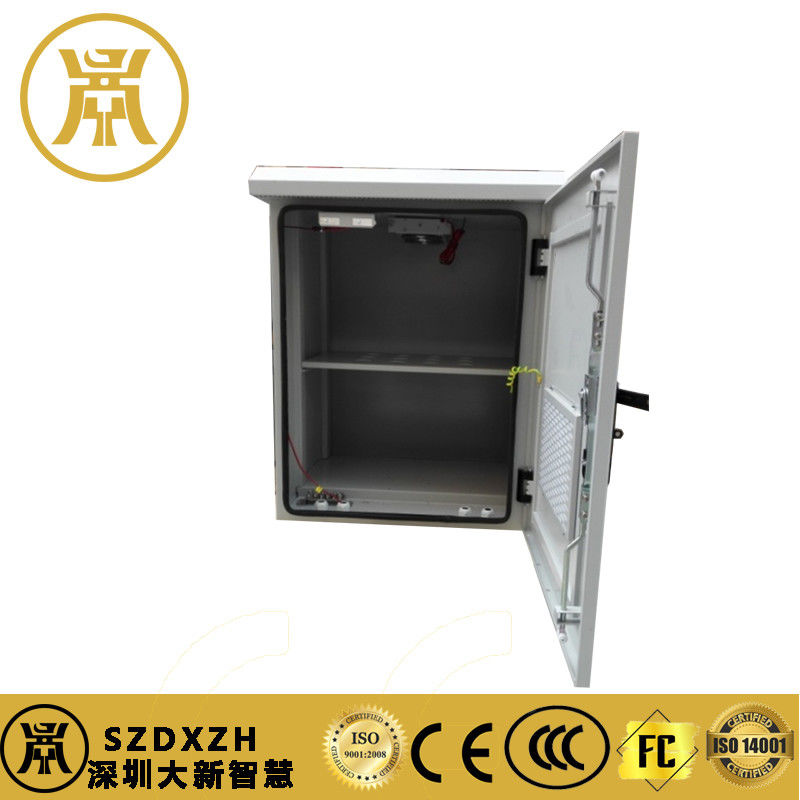

Product Images

1K-48V Telecom UPS Outdoor Cabinet – Carrier-Grade 48VDC Power System meets NEBS Level 3 0

1K-48V Telecom UPS Outdoor Cabinet – Carrier-Grade 48VDC Power System meets NEBS Level 3 1

1K-48V Telecom UPS Outdoor Cabinet – Carrier-Grade 48VDC Power System meets NEBS Level 3 2
