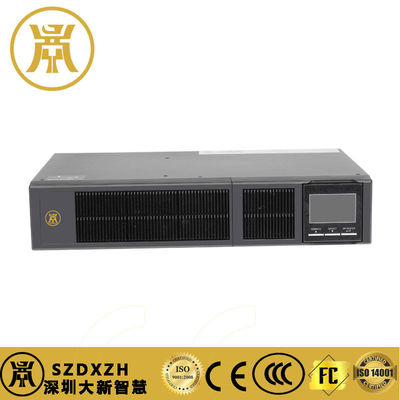

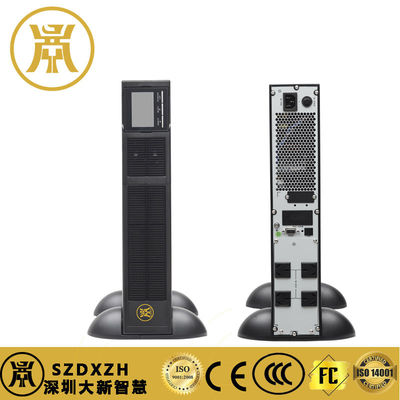

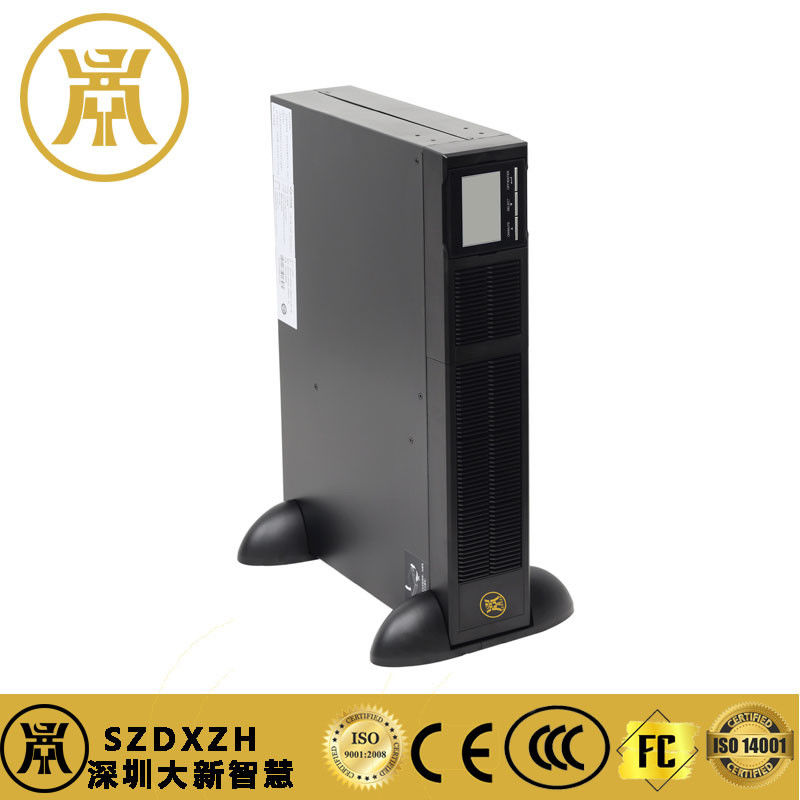

IGBT Protection Rugged Online UPS 3kVA 0ms Power Transfer Rack or Tower Installation

Brand Name:	Daxin
Model Number:	H3KR(L)
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Transfer Time:

Input/ Output:

Single Phase

Output Voltage:

208/220/230/240VAC ±1%

Load Capacity:

3kVA/2.4kW

Installation Method:

Rack/ Tower Type

External Battery:

Support

Product Type:

High Frequency Online UPS

Supply Ability:

8000pcs/month

Highlight:

3kVA Online UPS

Rack Online UPS

Rugged Online UPS

Product Description

IGBT Protection Rugged Online UPS 3kVA

0ms Power Transfer Rack or Tower Installation

Key Specifications

Transfer time	0ms
Input/Output	Single phase
Output Voltage	208/220/230/240VAC ±1%
Load capacity	3kVA/2.4kW
Installation method	Rack/tower type
External battery	Supported
Product type	High frequency online UPS

Product Overview

Engineered for harsh environments, the H3KR(L) IGBT Protection Rugged Online UPS features wide temperature tolerance and optional isolation transformers for industrial applications. Its robust design ensures reliable operation in manufacturing plants and utility substations.

Complete Technical Specifications

Category	Parameter	Specification
Power Specifications	Nominal Power	3kVA/2.4kW
	Power Factor	0.8
	Surge Protection	10kA
	Transient Response	<20ms
Input Characteristics	Voltage Range	110-300VAC
	Frequency Range	40-70Hz
	Input Current	15A @230V
	Inrush Current	<25A
Output Characteristics	Voltage Accuracy	±1%
	Dynamic Response	±5% for 100% load change
	Harmonic Distortion	<3% linear, <5% nonlinear
	Crest Factor	3:1
Battery System	Standard Battery	6×12V/9AH
	Runtime @50% load	15-30 minutes
	Battery Management	Automatic discharge test
	Low Battery Warning	Configurable threshold
Physical Specifications	Dimensions	630×438×88mm
	Weight	29.3kg
	Enclosure Rating	IP20
	Mounting Options	Rack or tower

Ideal Applications

Government facilities
Military installations
Banking and financial institutions
Server and network workstations
Network closets and VoIP devices
Large network peripherals
Aerospace and missile systems
Industrial IT equipment

Industrial Features

Corrosion-resistant coating
Filtered ventilation system
Vibration-resistant design
Fire-Safe Design – EPO (Emergency Power Off) compliant

LCD Display

Technical Support & Services

The High Frequency UPS product offers comprehensive technical support and services to ensure reliable and efficient operation. Our technical experts provide assistance with installation, configuration, and troubleshooting.

Our services include:

Remote monitoring and diagnostics
24/7 technical support
Training and certification
Installation assistance
Preventive maintenance
Emergency repair services
