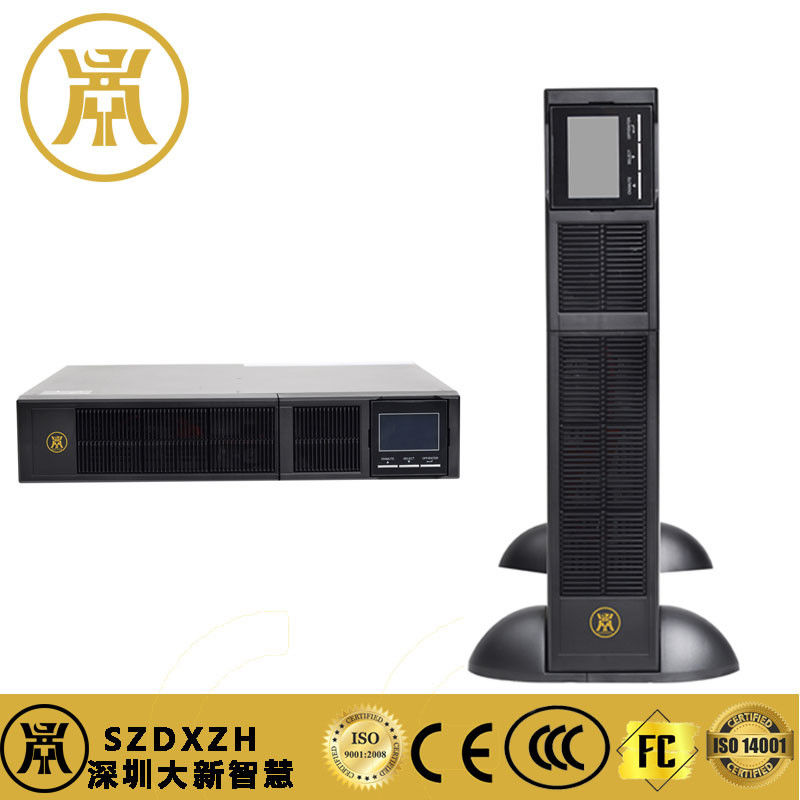

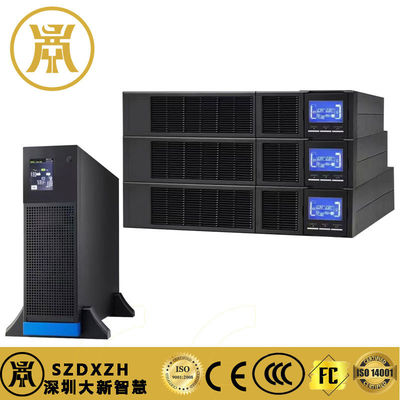

HR33 Series 10K-60KVA 3-phase Online UPS High Output Voltage and External Battery Support

Brand Name:	Daxin
Model Number:	HR33 Series 10KL-60KL
MOQ:	1 pc
Payment Terms:	T/T
Supply Ability:	8000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,UL

Document:

Product Brochure PDF

Transfer Time:

0ms

Input/ Output:

3-phase

Output Voltage:

360/380/400/415VAC (Ph - Ph)

Load Capacity:

10kVA/15kVA/20kVA/3kVA/40kVA/60kVA

Installation Method:

Rack/ Tower Type

External Battery:

Support

LCD Display:

Yes

Packaging Details:

Woodcase/ Paper box

Supply Ability:

8000pcs/month

Highlight:

10K-60KVA Online UPS

External Battery Support Online UPS

3-phase Online UPS

Product Description

HR33 Series 10K-60KVA 3-phase Online UPS High Output Voltage and External Battery Support

Product Attributes

Attribute	Value
Transfer time	0ms
Input/ Output	3-phase
Output Voltage	360/380/400/415VAC (Ph - Ph)
Load capacity	10kVA/15kVA/20kVA/30kVA/40kVA/60kVA
Installation method	Rack/ tower type
External battery	Support
LCD Display	Yes

Reliable Power Protection with Advanced Online UPS Technology

The HR33 Series Online UPS (10K-60KVA) delivers pure double-conversion technology, ensuring seamless power backup for critical infrastructure. Designed for rack-mount and tower installations, it provides robust protection against power disruptions, including:

Voltage Protection - Stable output under fluctuating input
Outage Protection - Zero transfer time during grid failure
Overload/Short-Circuit Protection - Safeguards connected equipment
Surge/Interference Protection - Filters electrical noise

Key Features

Pure Sine Wave Output - 1.0 power factor for sensitive loads
DSP-Enhanced Performance - High-efficiency power conversion
ECO Mode - Energy-saving operation without compromising reliability
Generator & Dual Input Support - Compatible with backup generators
3-Stage Smart Charging - Extends battery lifespan
Flexible Battery Configuration - Adjustable battery count for extended runtime

Technical Specifications

Model	Capacity	Input Voltage Range	Efficiency (AC Mode)
10KL	10KVA/10KW	110VAC-300VAC	95.5%
15KL	15KVA/15KW	110VAC-300VAC	95.5%
20KL	20KVA/20KW	110VAC-300VAC	95.5%
30KL	30KVA/30KW	110VAC-300VAC	95.5%
40KL	40KVA/40KW	110VAC-300VAC	95.5%
60KL	60KVA/60KW	110VAC-300VAC	95.5%

Remote Monitoring & Management

LCD Display - Real-time UPS status tracking
RS232/RS485 & SNMP - Network-enabled remote monitoring
Compatible with Windows/Linux/Mac - Seamless integration

Ideal Applications

Government

Military

Banking

Financial

Server

Network Workstation

Network Closet

VoIP Device

Large Network Peripheral

Aerospace

Missile

IT Equipment

Back view:

Unmatched Power Stability

The HR33 Series Online UPS (10K-60KVA) ensures zero downtime with pure double-conversion technology, making it ideal for mission-critical applications.

Advanced Protection Mechanisms
