| Brand Name: | Daxin |
| Model Number: | DX-29.9/30/35KHV-3PH-EU |
| MOQ: | 1 SET |
| Packaging Details: | Wooden case with pallet |
| Payment Terms: | T/T |

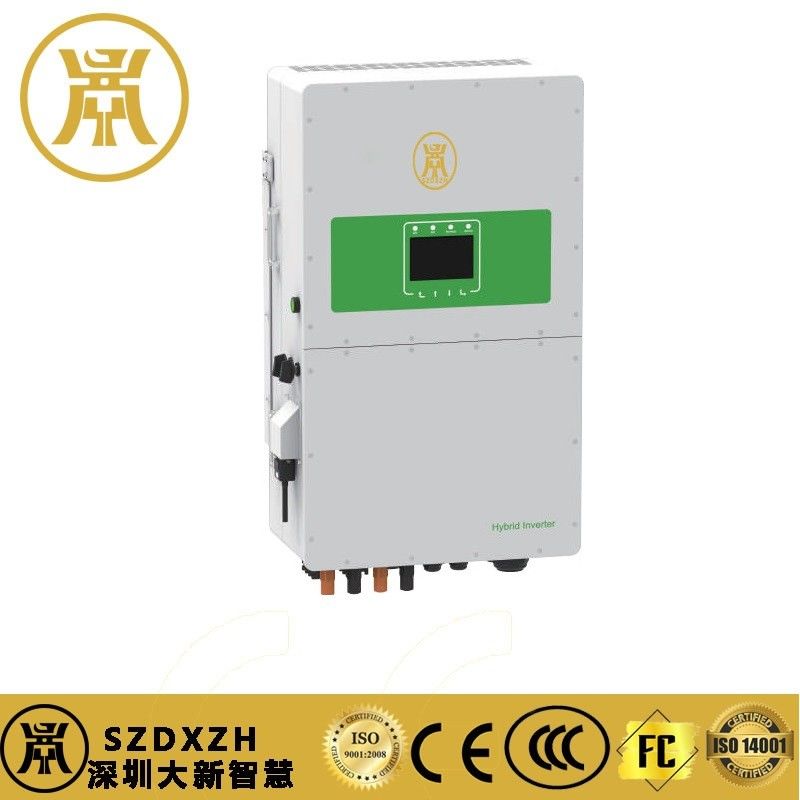

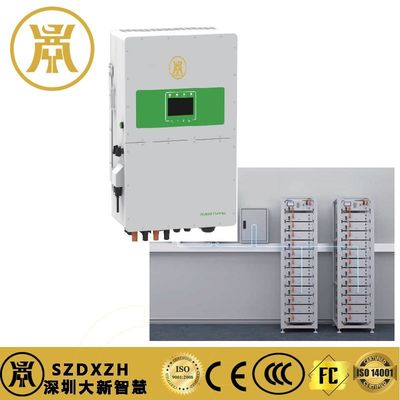

Three Phase Hybrid Inverter Max. 10 Pcs Parallel For On-grid And Off-grid operation
Introduction:
Three Phase High Voltage Hybrid Inverter with maximising energy back-up for high power PV rooftops. This series of inverters are centered around high efficiency, high compatibility, and intelligent management. They are suitable for a variety of energy scenarios and are ideal for industrial, commercial, and off-grid systems.
The trend of increasing PV module yield is influencing overall PV system requirements. At the forefront of development, DX inverters efficiently meet the needs of powerful solar rooftops to facilitate energy back-up, peak shaving and load management for optimised autonomy and reduced energy cost. The DX series can be combined with a range of battery capacities and brands.
Features:
Applications:
Industrial and commercial photovoltaic energy storage system
Off-grid/microgrid energy solutions
Upgrade and transformation of existing solar energy systems
Technical Data:
| Model | DX-29.9KHV-3PH-EU |
| Battery Input Data | |
| Battery Type | Lithium-ion |
| Battery Voltage Range (V) | 160-800 |
| Max.Charging Current(A) | 50+50 |
| Max.Discharging Curent(A) | 50+50 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 2 |
| PV String Input Data | |
| Max.DC Input Power(W) | 38870 |
| Max.DC Input Voltage(V) | 1000 |
| Start-up Voltage(V) | 180 |
| MPPT Voltage Range(V) | 150-850 |
| Rated DC Input Voltage(V) | 600 |
| Max.Operating PV Input Current(A) | 36+36+36 |
| Max.Input Short-Circuit Current(A) | 55+55+55 |
| Noof MPPT Trackers/ No.of String Per MPPT Tracker |
3/2+2+2 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power (W) | 29900 |
| Max.AC Input/Output Apparent Power (VA) | 29900 |
| Rated AC lnput/Output Current (A) | 45.4/43.4 |
| Max.AC Input/Output Current (A) | 45.4/43.4 |
| Max.Three-phase Unbalanced Output Curent (A) | 60 |
| Max.Continuous AC Pass through (grid to load) (A) | 200 |
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range(V) | 220/380V, 230/400V 085Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | 3L+N+PE |
| Total Current Harmonic Distortion THDi | <3%(of nominal power) |
| DC Component of Grid | <0.5%In |
| Efficiency | |
| Max.Eficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Effciency | 99% |
| Equipment Protection | |
| Surge Protection Leve | TYPEII(DC).TYPE II(AC) |
| Interface | |
| Communication Interface | WFI,RS485,CAN |
| General Data | |
| Operating Temperature Range(℃) | -40 to +60℃,>45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise | ≤65 dB(A) |
| Ingress Protection(IP) Rating | IP65 |
| Inverter Topology | Non-lsolated |
| Over Voltage Category | OVCII(DC).OVC Ⅲ(AC) |
| Cabinet Sze(WxHxDmm) | 527×894×294(Exduding Connectors and Brackets) |
| Weight (kg) | 80 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter,More Info Please Refer to Warranty Policy |
| Grid Regulation | IEC61727,IEC62116,.CEI 0-21,EN 50549.NRS 097,RD 140,UNE 217002 OVE-Richtlinie R25,G99.VDE-AR-N4105 |
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN 62109-2 |
Integrated:
Video
Video
Video
Video
Video
|
