| Brand Name: | Daxin |
| Model Number: | DX-BESS-50K100 |
| MOQ: | 1 Set |
| Payment Terms: | T/T |
| Supply Ability: | 6000pcs/month |
| Attribute | Value |
|---|---|

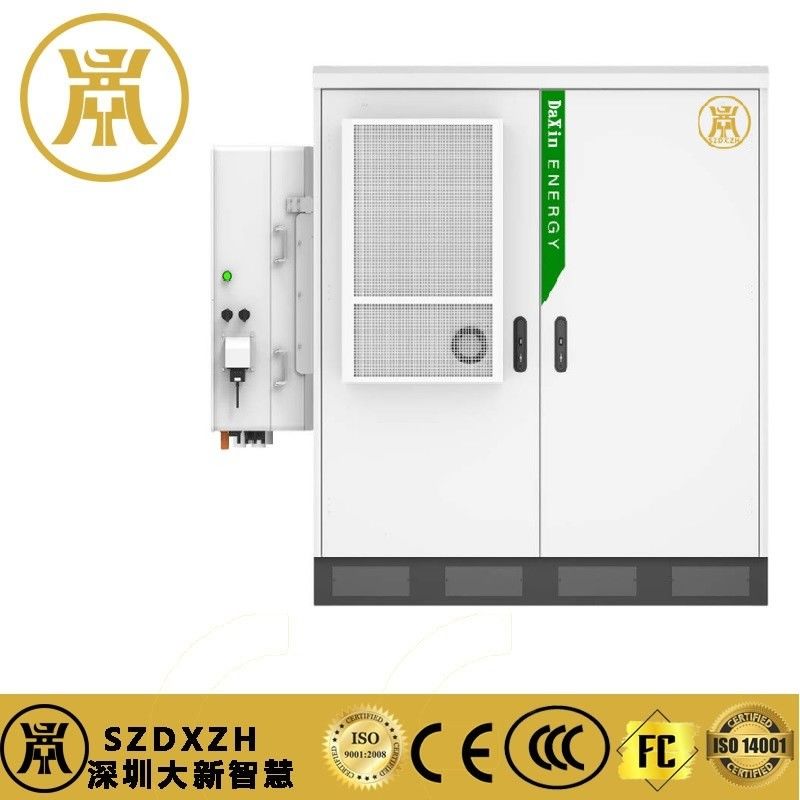

| System configuration | Outdoor cabinet + Inverter + Battery |
| Cabinet Lock | Anti-theft Three Point Lock |
| Protection Level | IP55 |
| Power Output | Varies depending on customer needs |
| Cabinet Material | Galvanized steel |
The DX-BESS-50K100 is an innovative and advanced solar PV batteries solution crafted by DX ENERGY, a leading manufacturer in the field. It harnesses high-voltage lithium iron phosphate (LiFePO4) battery technology to offer a reliable, efficient, and safe renewable energy storage and backup power solution. This modular system is designed for large-scale applications, ensuring seamless operation in diverse scenarios.
| Specification | Value |
|---|---|
| Nominal Output Power/UPS Power (W) | 50000 |
| AC Output Frequency and Voltage | 50/60Hz; 3LN/PE220/380, 230/400Vac |
| Grid Type | Three phase |
| Energy Configuration (kWh) | 102.4 |
| Dimension (W×D×H, mm) | 1400×1100×1650 (no contain inverter) |
| Weight Approx. (kg) | 1350 (no contain inverter) |
| AC Output Rated Current (A) | 75.8 |
| Battery Operating Voltage (V) | 400~800 |
| Battery Chemistry | LiFePO4 |
| IP Rating of Enclosure | IP55 |
| System Certification | UN38.3, IEC62619, CE, CEI0-21, VDE-AR-N4105, IEC62109 |

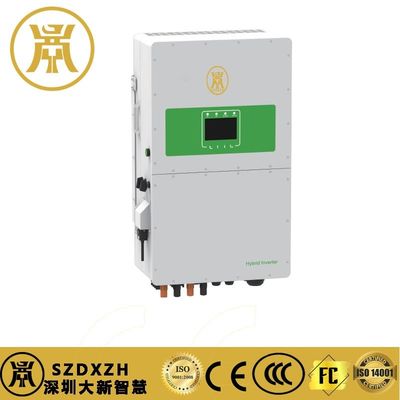

| Parameter | Value |
|---|---|
| Max Parallel connection sets | 10 |
| Max. PV Input Power (W) | 65000 |
| Max. PV Input Current (A) | 36+36+36+36 |
| Rated PV Input Voltage (Vdc) | 600 |
| Start Up DC Voltage (Vdc) | 180 |
| MPPT Voltage Range (Vdc) | 150-850 |
| Max. PV Short-circuit Current (A) | 55+55+55+55 |
| Number of MPPT | 4 |
| Peak Power (off grid) | 1.5 time of rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging |
| THD | <3% |
| DC injection current (Ma) | <0.5In |
| Display | LCD |
| Operating Temperature Range (°C) | -40 to 60 (>45°C derating) |
| Relative Humidity | 15%~85% (No Condensing) |
| Dimension (W×D×H, mm) | 527×294×894 |
| Inverter Communication | CAN, RS485, WIFI, ETH |
| Safety EMC/Standard | IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 |
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI021, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Max. Efficiency | 97.6% |
| Max. charging/discharging efficiency | 91% |
