| Brand Name: | Daxin |
| Model Number: | H2KR(L) |
| MOQ: | 1 pc |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |

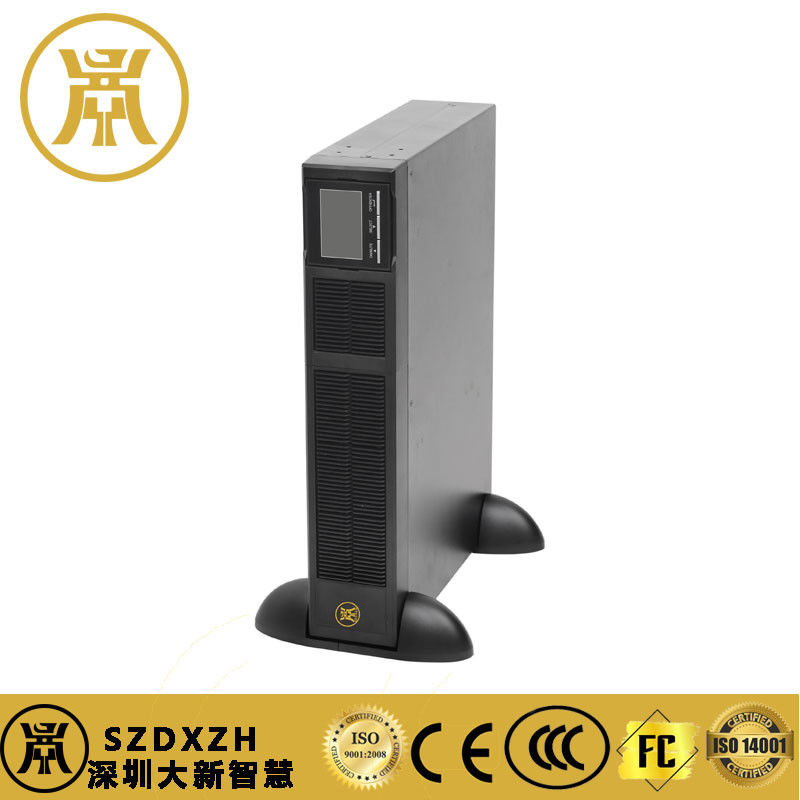

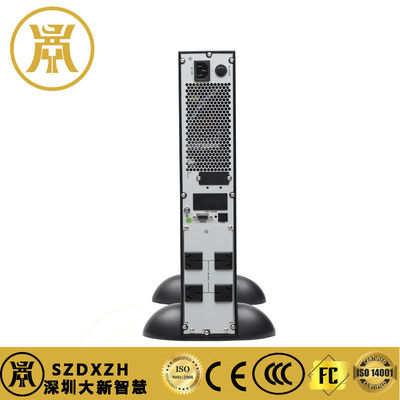

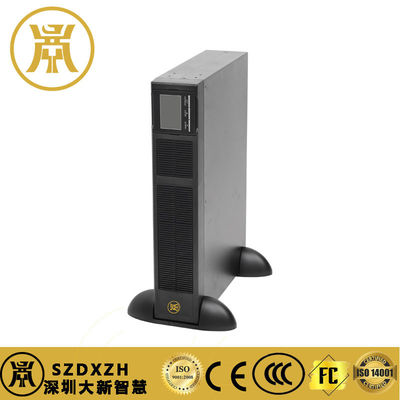

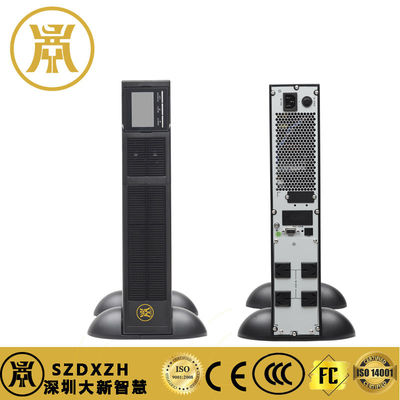

Mission Critical Power Solution High-Density Online UPS Introduction:
Designed for data centers and industrial applications, the H2KR(L) delivers 98.5% efficient power conversion with generator compatibility. Its advanced MCU control system provides intelligent power management and real-time system diagnostics.
Complete Technical Specifications:
| Category | Parameter | Specification |
|---|---|---|
| Input Specifications | Voltage Range | 110-300VAC ±5% |
| Frequency Range | 40-70Hz | |
| THDi | <5% @100% load | |
| Crest Factor | 3:1 | |
| Output Specifications | Voltage Regulation | ±1% |
| Frequency Regulation | ±0.25Hz | |
| Waveform Distortion | <3% THD | |
| Peak Current Ratio | 3:1 | |
| Battery System | Standard Configuration | 4×12V/9AH |
| Extended Runtime | 6×Custom | |
| Charging Algorithm | 3-stage smart charging | |
| Float Voltage | 13.5-13.8V/cell | |
| Communication | Standard Interface | RS-232/USB |
| Optional Interface | SNMP/Webcard | |
| Monitoring Software | Multi-platform support | |
| Mechanical | Dimensions | 410×438×88mm |
| Weight | 19kg (Standard) | |
| Cooling System | Temperature-controlled fan | |
| Reliability | MTBF | >200,000 hours |
| Design Life | 10 years | |
| Warranty | 2-3 years |
Applications/ Best for :
Advanced Features:
LCD Display:
The High Frequency UPS product offers comprehensive technical support and services to ensure the reliable and efficient operation of the system. Our technical experts are available to provide assistance with installation, configuration, and troubleshooting.
Our services include:
We are committed to providing exceptional customer service and ensuring customer satisfaction with our High Frequency UPS product. Contact us for more information on our technical support and services.
Production line:
Video
Video
|
