| Brand Name: | daxin |
| Model Number: | ODC-210909C2T-200AH |
| MOQ: | 1 pcs |
| Packaging Details: | Woodcase/ Paper box |
| Payment Terms: | T/T |
1. Technical parameter of outdoor cabinet
| No. | Description | Specification |
| Specification of cabinet | ||
| 1 | Model | ODC-210909C2T-200AH |
| 2 | Cabinet Dimension | W×D×H 900×900×2100mm |
| 3 | Available User Space | 40U standard 19” rack |
| 4 | Door | One front door |
| 5 | Lock | Outdoor special anti-theft three point locking |
| 6 | Material | Galvanized steel, single wall with heat insulation |
| 7 | Cabinet Installation method | Floor mount |
| 8 | Cable Entry | Located on the bottom |
| 9 | Lifting | 4 ears on the cabinet base |
| 10 | Earthing | Grounding copper bar |
| 11 | Working Temperature | -40°C～+75°C |
| 12 | Protection Level | IP55 |
| 13 | Relative Humidity | 5% ~ 100% |
| 14 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 15 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Other accessories | ||
| 1 | Cooling |
Cooling capacity: 1500W, Power supply: AC220V, 50Hz |
| 2 | LED light | AC220V 50Hz, with LED lamp switch |
| Packing | ||
| Wooden case | W×D×H 970×1190×2270mm | |
The cabinet is suitable for outdoor, cold resistance, heat resistance, wind and rain resistance, dust resistance. Mainly used for wireless communication base stations, including a new generation of 5G systems, integrated communications/network services, access/transmission exchange stations, emergency communications/transmissions, etc.
3. Outdoor Telecom Cabinet Description

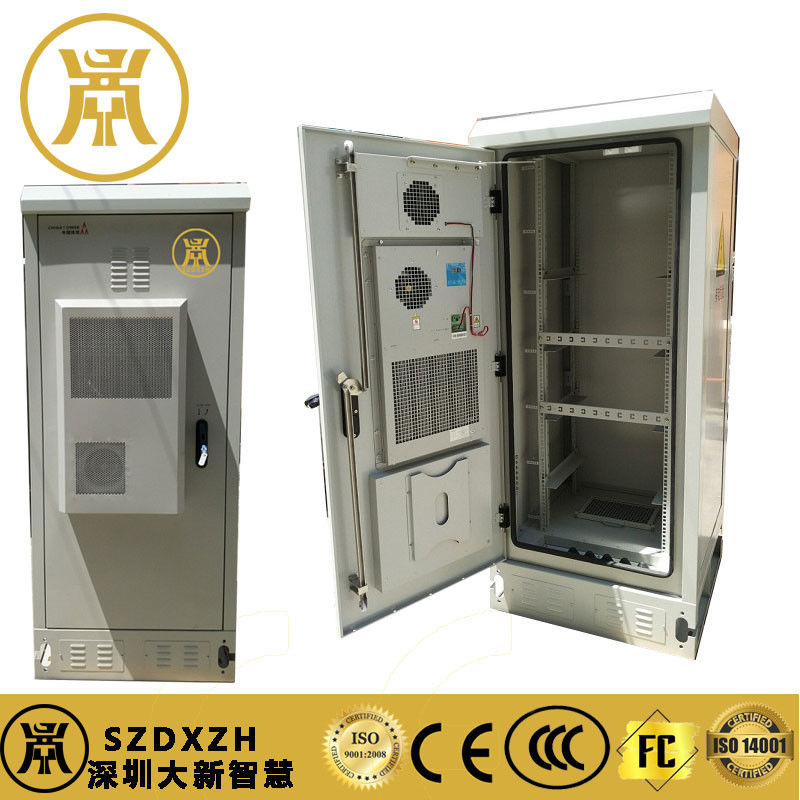

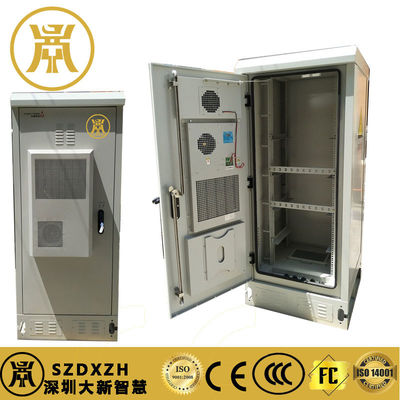

This outdoor telecom cabinet is 40U equipment cabinet with high cooling capacity 3000W air conditioner. Suitable for high temperature area.It can provide a stable working environment for telecom equipments. It is usually used in outdoor communication base station. The material use high quality powder coated galvanized steel.
4. Feature
(1) The embedded structure door enhances the anti-theft effect.
(2) High quality galvanized steel.
(3) Standard 19 inch rack.
(4) High protection level IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.
(5) The cabinet adopts three-point lock to prevent illegal entry.
(6) Hidden hinge, inside screws, enhance the theftproof.
(7) Wind lock to hold door open at service.
(8) Use compressor air conditioner to keep inside temperature of the cabinet.
5. Advantage
Video
Video
Video
Video
Video
|
