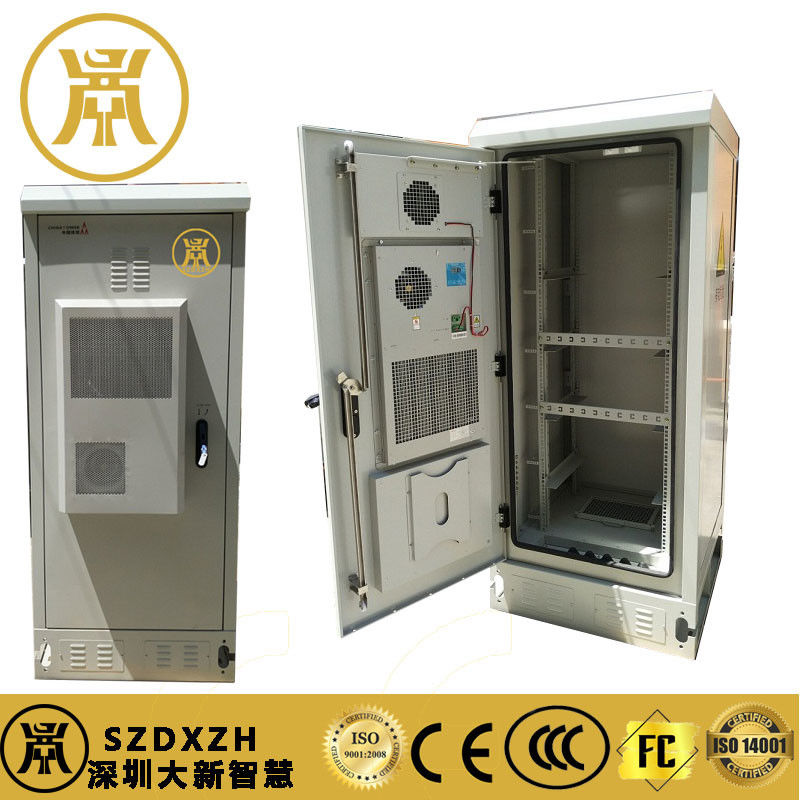

One Compartment Outdoor Telecommunication Cabinets With Air Conditioner And Battery Shelf

Brand Name:	daxin
Model Number:	ODC-210909C2T-200AH
MOQ:	1 pcs
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN

Certification:

Document:

Features:

Commercial Power Safe, Industrial Commercial Storage, Commercial Energy Backup

Cabinet Layout:

One Compartment

Cabinet Lock:

Anti-theft Three Point Lock

Surface Coating:

Outdoor Powder Coating

Manufacturer:

Shenzhen

Energy Storage System Type:

Industrial And Commercial

Supply Ability:

10000pcs/month

Highlight:

One Compartment Outdoor Telecommunication Cabinets

Telecommunication Cabinets With Battery Shelf

Outdoor Telecom Enclosures With Sensor

Product Description

One Compartment Outdoor Telecommunication Cabinets With Air Conditioner And Battery Shelf

Product Specifications

Cabinet Layout

One Compartment

Features

Commercial Power Safe, Industrial Commercial Storage, Commercial Energy Backup

Cabinet Lock

Anti-theft Three Point Lock

Surface Coating

Outdoor Powder Coating

Manufacturer

Shenzhen

Energy Storage System Type

Industrial and Commercial

Technical Specifications

No.	Description	Specification
1	Model	ODC-210909C2T-200AH
2	Cabinet Dimension	W×D×H 900×900×2100mm
3	Available User Space	40U standard 19" rack
4	Door	One front door
5	Lock	Outdoor special anti-theft three point locking
6	Material	Galvanized steel, single wall with heat insulation
7	Cabinet Installation method	Floor mount
8	Cable Entry	Located on the bottom
9	Lifting	4 ears on the cabinet base
10	Earthing	Grounding copper bar
11	Working Temperature	-40°C～+75°C
12	Protection Level	IP55
13	Relative Humidity	5% ~ 100%
14	Atmospheric Pressure	62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
15	Solar Radiation Intensity	1120 ×(1±5%)W/m2

Other Accessories

1	Cooling	Cooling capacity: 1500W, Power supply: AC220V, 50Hz
2	LED light	AC220V 50Hz, with LED lamp switch
Packing	Wooden case	W×D×H 970×1190×2270mm

Applications

This outdoor telecommunication cabinet is designed for harsh environments with excellent cold resistance, heat resistance, wind and rain resistance, and dust resistance. Ideal for wireless communication base stations including:

New generation 5G systems
Integrated communications/network services
Access/transmission exchange stations
Emergency communications/transmissions

Product Features

Embedded structure door enhances anti-theft protection
Constructed with high quality galvanized steel
Standard 19 inch rack compatibility
IP55 protection level for waterproof and dustproof performance
Three-point locking system prevents unauthorized access
Hidden hinges with internal screws for enhanced security
Wind lock keeps doors open during service
Compressor air conditioner maintains optimal internal temperature

Product Advantages

Multi-stage cleaning and 120micron powder coating for durability
Earthquake-resistant cabinet structure
Optimized space layout reduces construction costs
Waterproof, anti-corrosion, anti-sand and UV resistant for harsh outdoor conditions
Compatible with 19" equipment and lithium ion batteries
Spacious 40U capacity for high-density installations

Product Images
