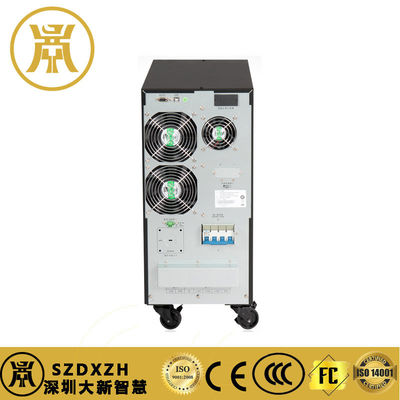

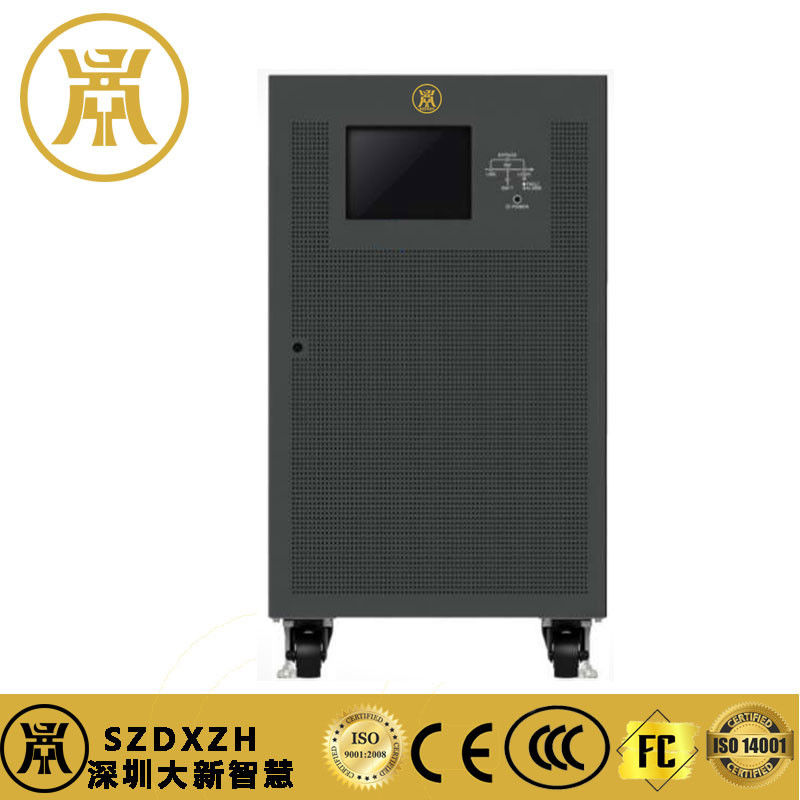

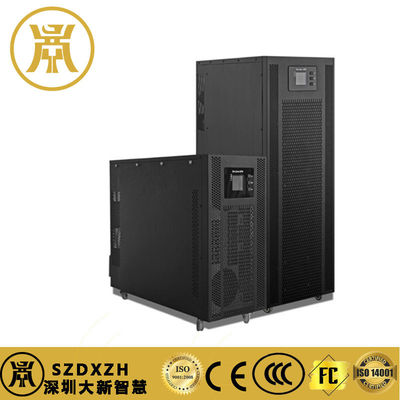

Professional-Grade 100KVA UPS System with True Online Double Conversion Technology

Brand Name:	Daxin
Model Number:	EX 3C3 100K
MOQ:	1 pc
Packaging Details:	Woodcase/ Paper box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Document:

Dimensions:

974×600×1600mm

Weight:

117kg

LCD Display:

Remote Management:

RS232/485 / SNMP

Transfer Time:

Input Voltage:

3×380VAC/400VAC(3Ph+N)

Supply Ability:

6000pcs/month

Highlight:

double conversion high frequency ups

double conversion ups uninterruptible power supply

Product Description

Professional-Grade 100KVA UPS System with True Online Double Conversion Technology

Why Choose This Online UPS?

Zero Downtime: True online double conversion eliminates power gaps
Energy Efficient: 94% efficiency reduces operating costs
Future-Proof: Scalable battery cabinets for runtime extension

Key Specifications

Dimensions

974×600×1600mm

Weight

117kg

LCD display

Yes

Remote management

RS232/485 / SNMP

Transfer time

0 ms

Input Voltage

3×380VAC/400VAC(3Ph+N)

Advanced Features

1. Advanced Power Protection

True online double-conversion topology ensures pure sine wave output with:

Frequency synchronization & phase locking
Voltage stabilization (±1% typical)
Noise filtration

Complete isolation from grid fluctuations (285-475VAC input range)

2. Intelligent Control System

Dual-CPU redundant architecture with:

Adaptive battery charging (10-40A programmable)
Active PFC (input PF≈1 at all loads)

IEEE/EN-compliant harmonic filters (<5% THD)

3. Mission-Critical Reliability

Load	Duration
110-150%	10min-1min
>160%	200ms

AC↔Battery: 0ms transfer time
Inverter↔Bypass: ≤10ms transfer time

Technical Specifications

Category	Parameter	Specification
Input	Voltage Range	285-475VAC (3Ph+N)
Input	Frequency Range	50/60Hz ±10%
Output	Voltage Stability	±1% (steady state), ±5% (transient)
Output	THD	<2% (linear), <5% (non-linear)
Efficiency	Online Mode	94%
Efficiency	Battery Mode	93.5%
Battery	Configuration	32-40×12V cells (adjustable)
Battery	Charge Current	10A default, 40A max

Industrial-Grade Protection

Output overload/short-circuit protection
Inverter overtemperature shutdown
Battery under/over voltage protection
Maintenance Bypass: Non-interrupted transfer to utility power

Monitoring & Control

LCD Interface: Real-time status display with event logging
Remote Management: RS232/485, SNMP, and monitoring software
Optional Battery Monitoring: Per-cell voltage detection with alarms

Rugged Construction

Conformal-coated PCBs for harsh environments
Operates at 0-40°C (<95% humidity)

Applications

Data centers, medical facilities, industrial automation where continuous power is non-negotiable:

Government & Military
Banking & Financial
Server & Network Workstations
VoIP Devices & Large Network Peripherals
Aerospace & IT Equipment
